Trailer Towing Relay
Trailer Towing Relay
Component Connector End Views

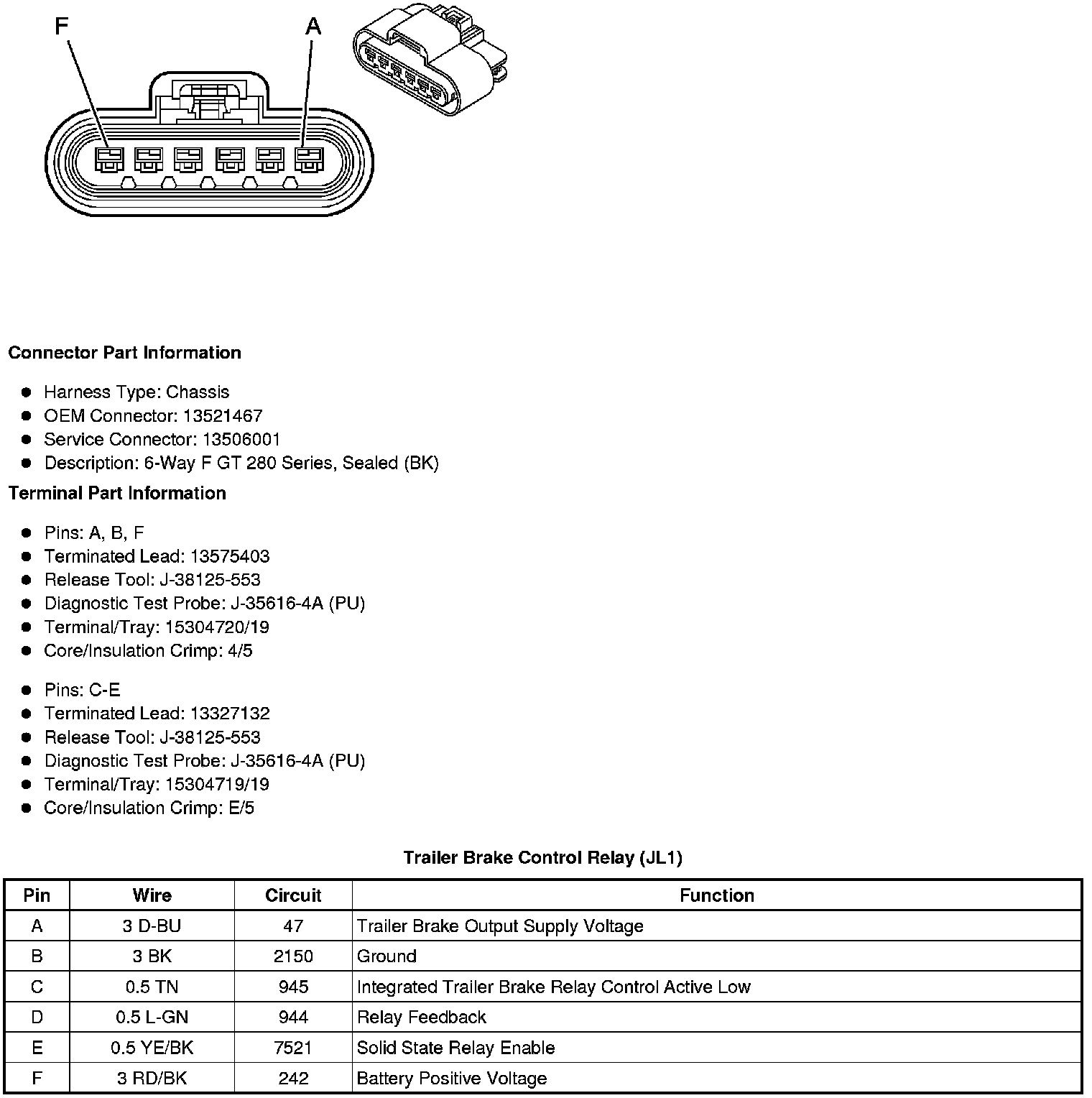

Trailer Brake Control Relay (JL1)
