Shock Absorber Actuator - Right Rear (Z55)
Shock Absorber Actuator - Right Rear (Z55)
Component Connector End Views

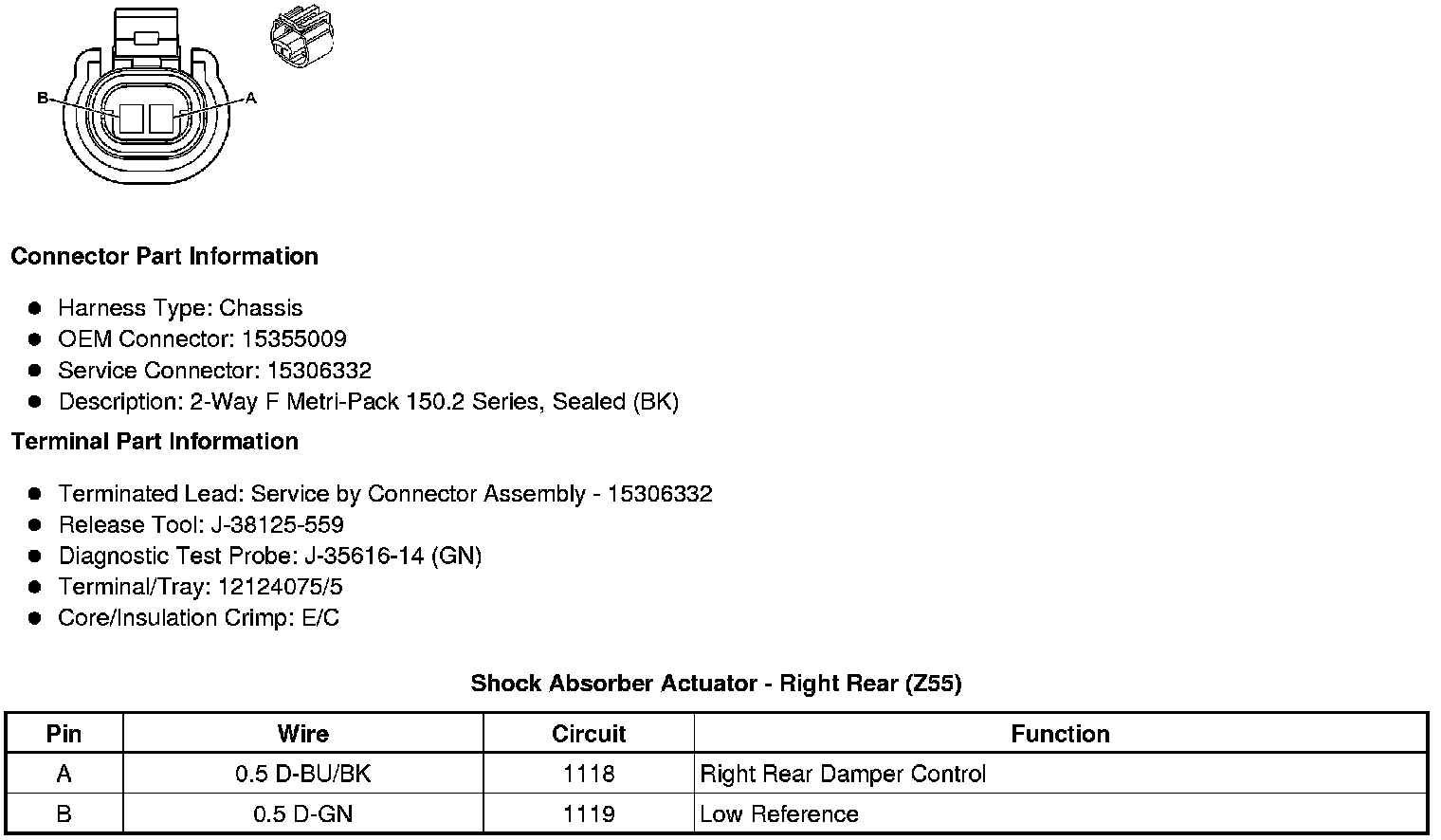

Shock Absorber Actuator - Right Rear (Z55)
