Daytime Running Lamp (DRL) Resistor (T4Q)
Daytime Running Lamp (DRL) Resistor (T4Q)
Component Connector End Views

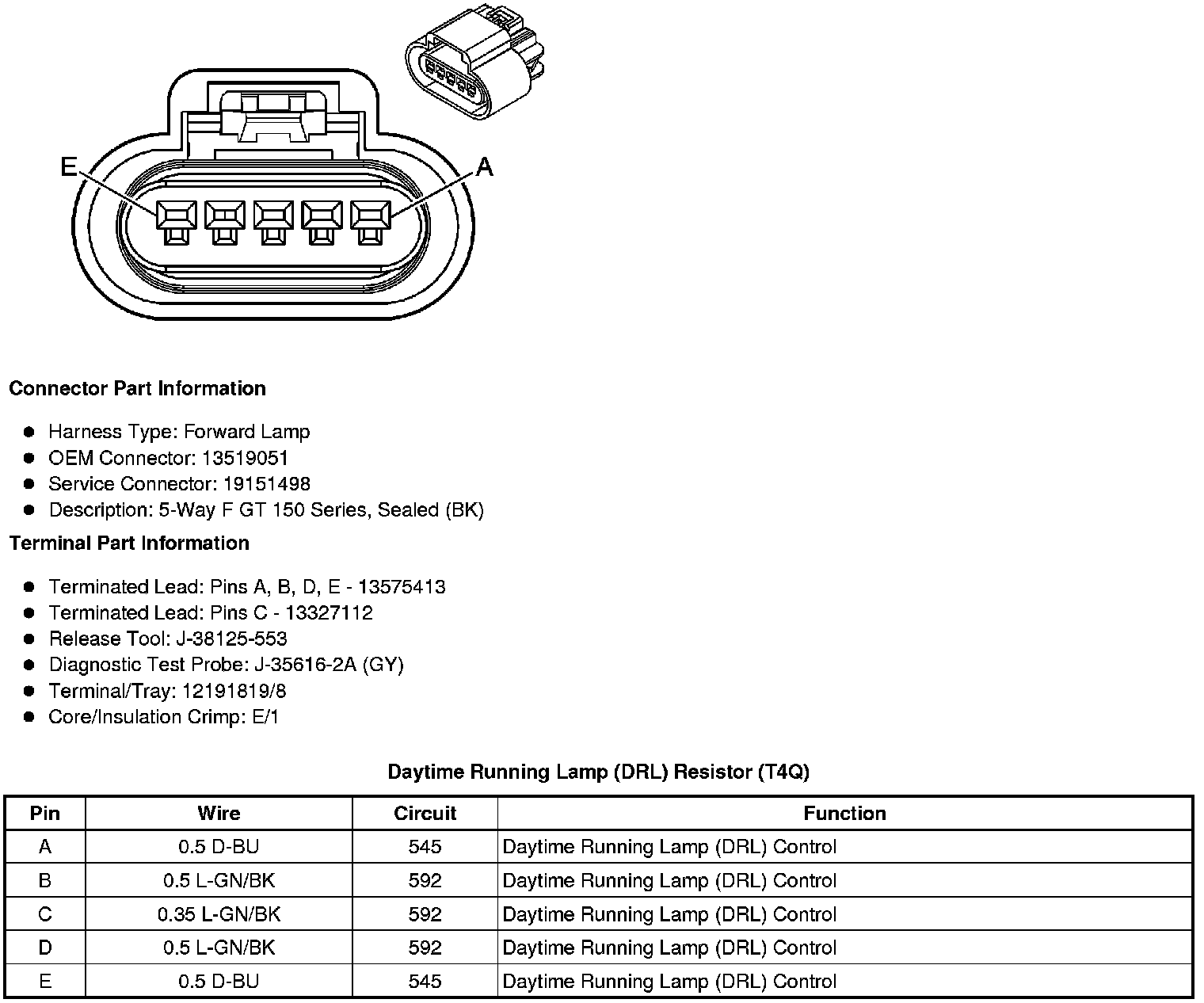

Daytime Running Lamp (DRL) Resistor (T4Q)
