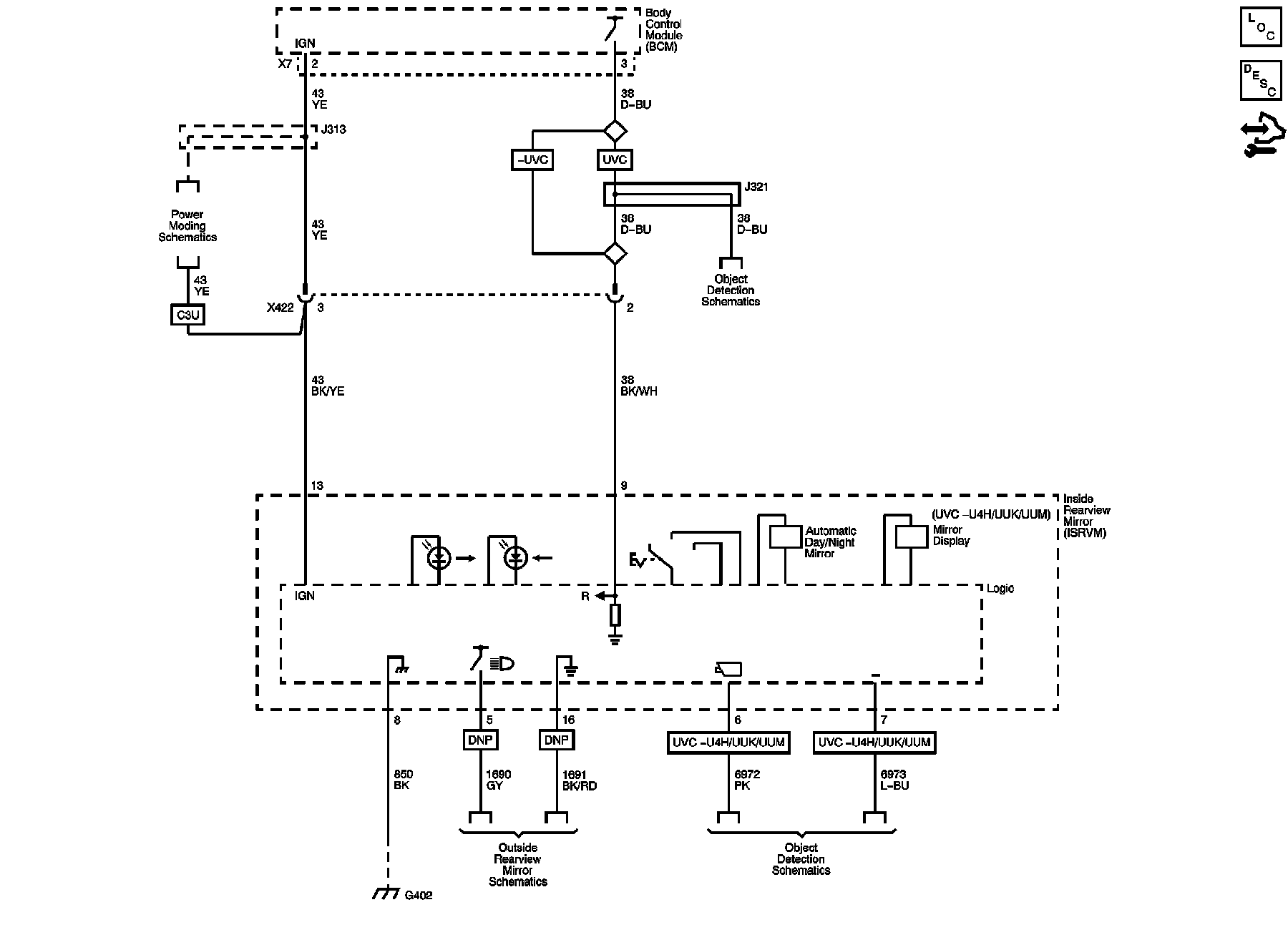

Inside Rearview Mirror Schematics
Inside Rearview Mirror Schematics
Inside Rearview Mirror Schematics
DD8
