Evaporator Temperature Sensor / Switch
Evaporator Temperature Sensor / Switch

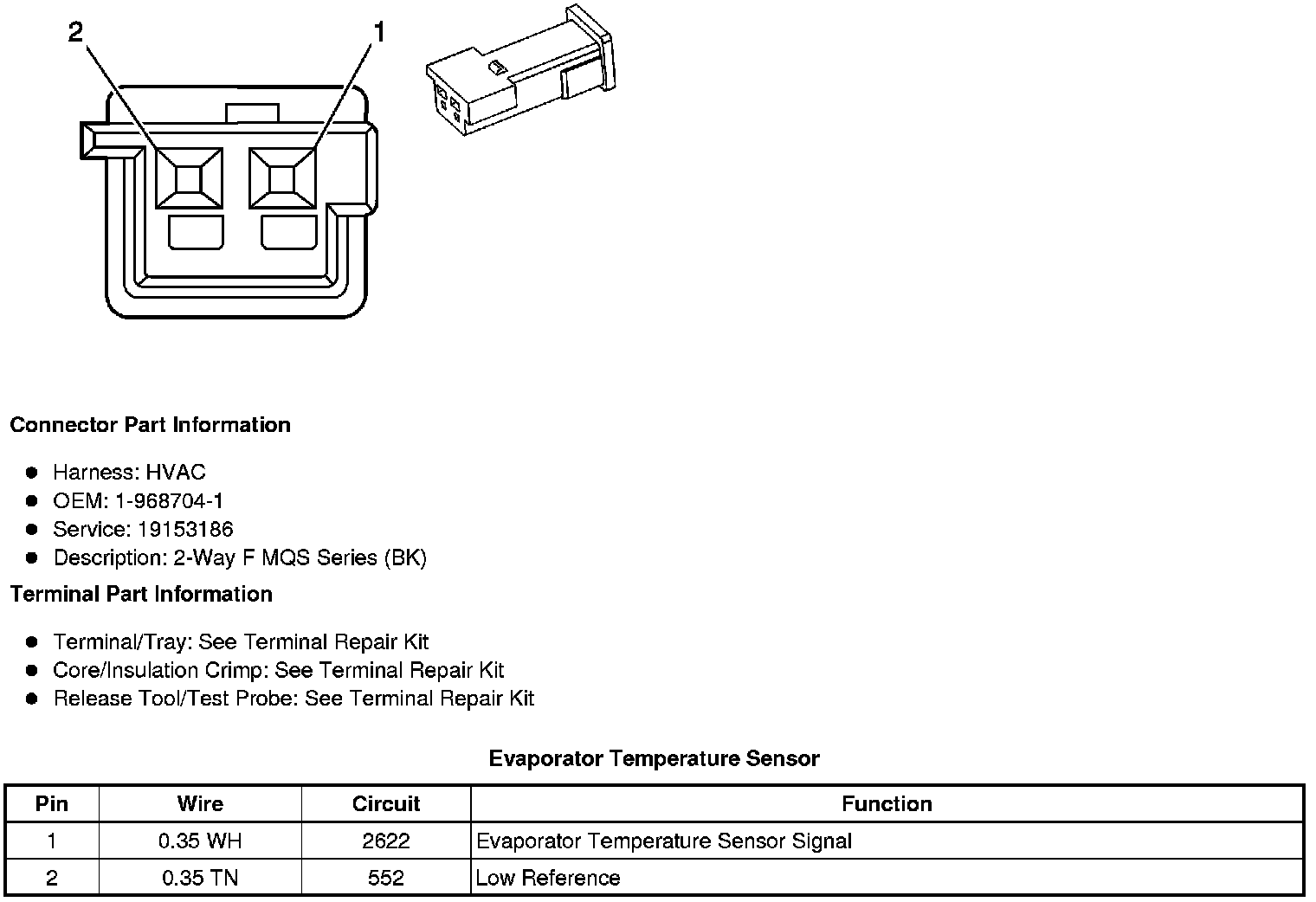

Component Connector End Views
Evaporator Temperature Sensor
