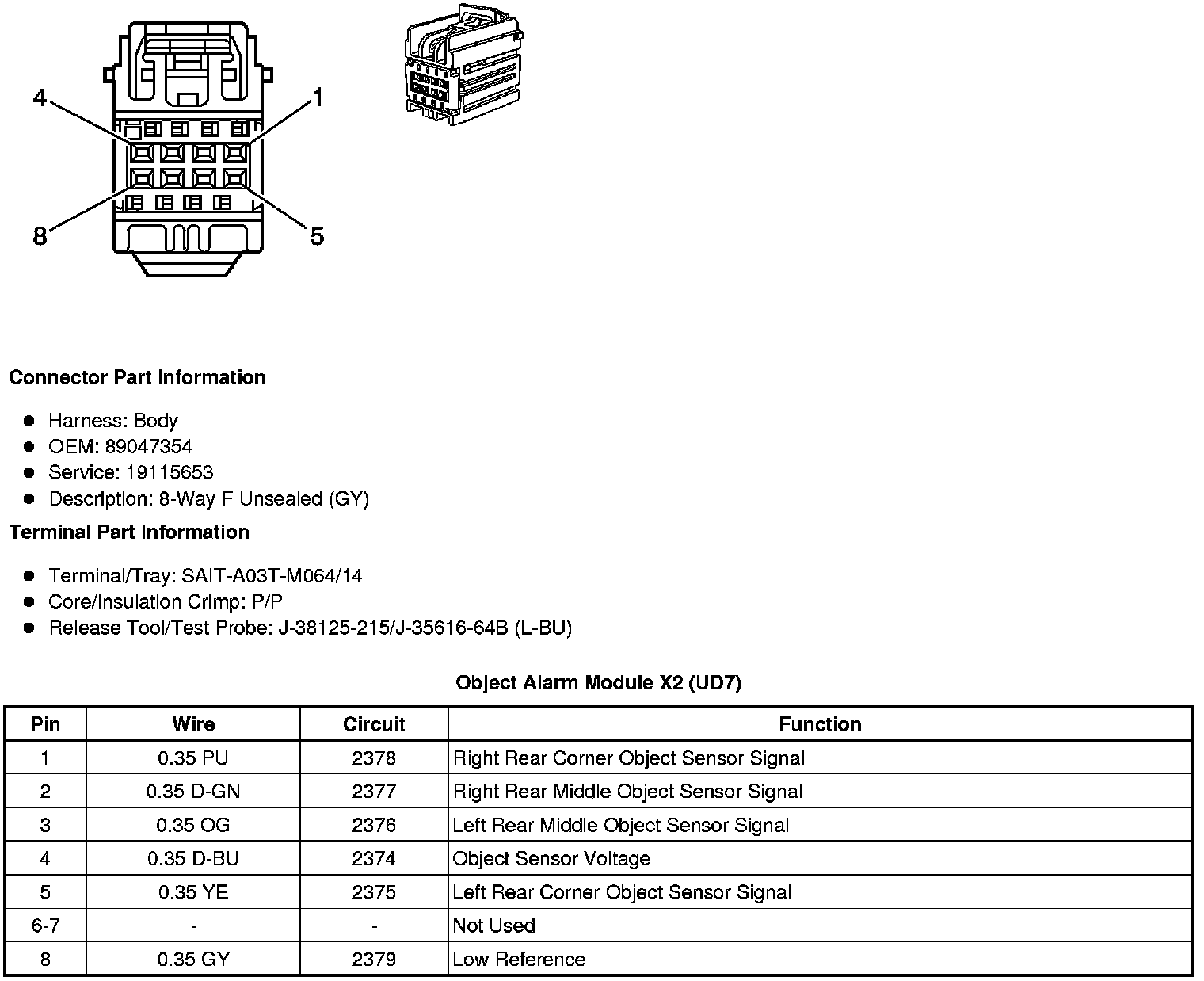

Object Alarm Module X2 (UD7)
Object Alarm Module X2 (UD7)
Component Connector End Views
Object
Alarm Module
X2 (UD7)
