Home >> Chevy Truck >> 2011 >> Tahoe 4WD V8-6.0L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Relays and Modules - Hybrid Drive >> Drive Motor Control Module >> Service and Repair

Drive Motor Control Module: Service and Repair

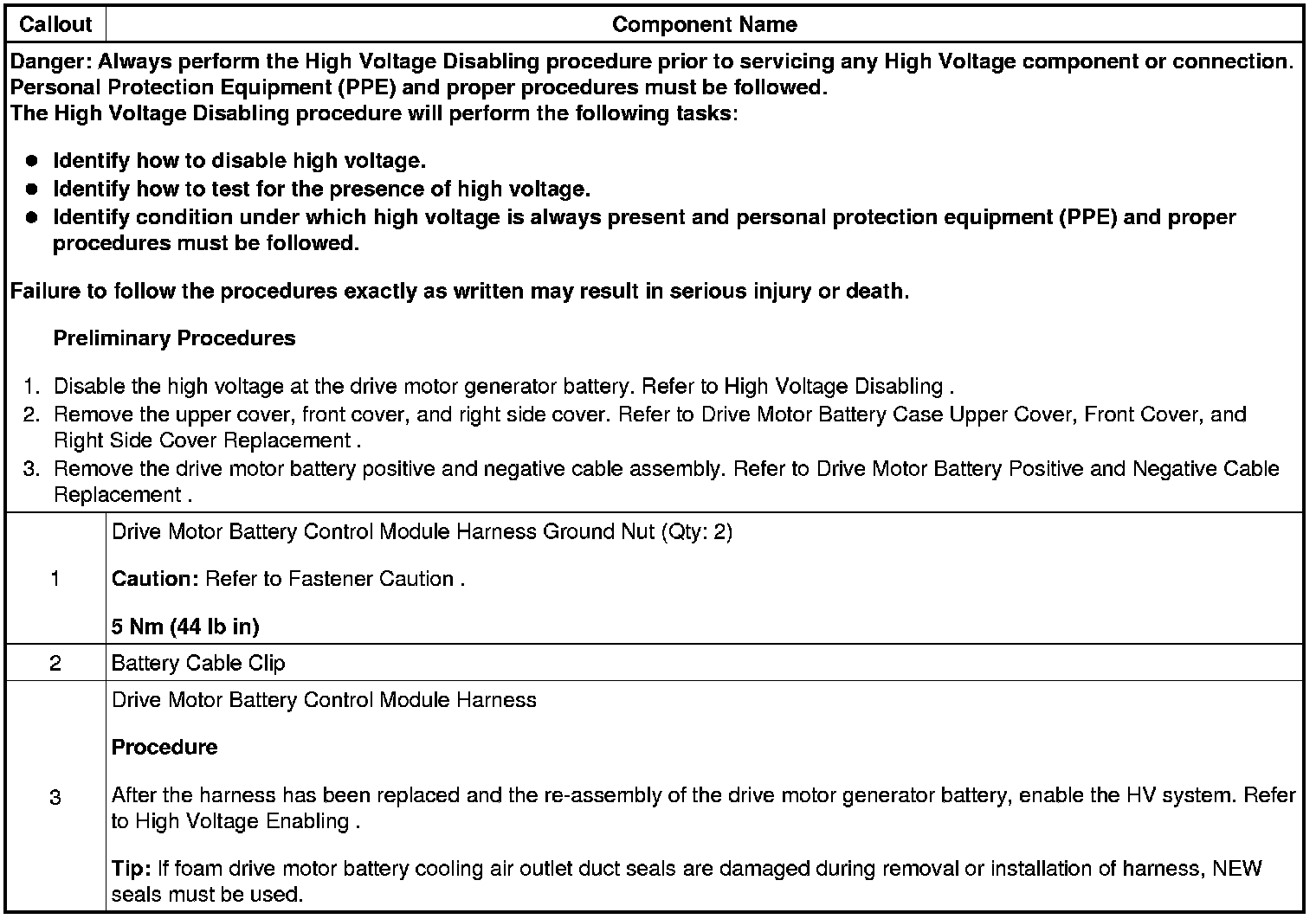

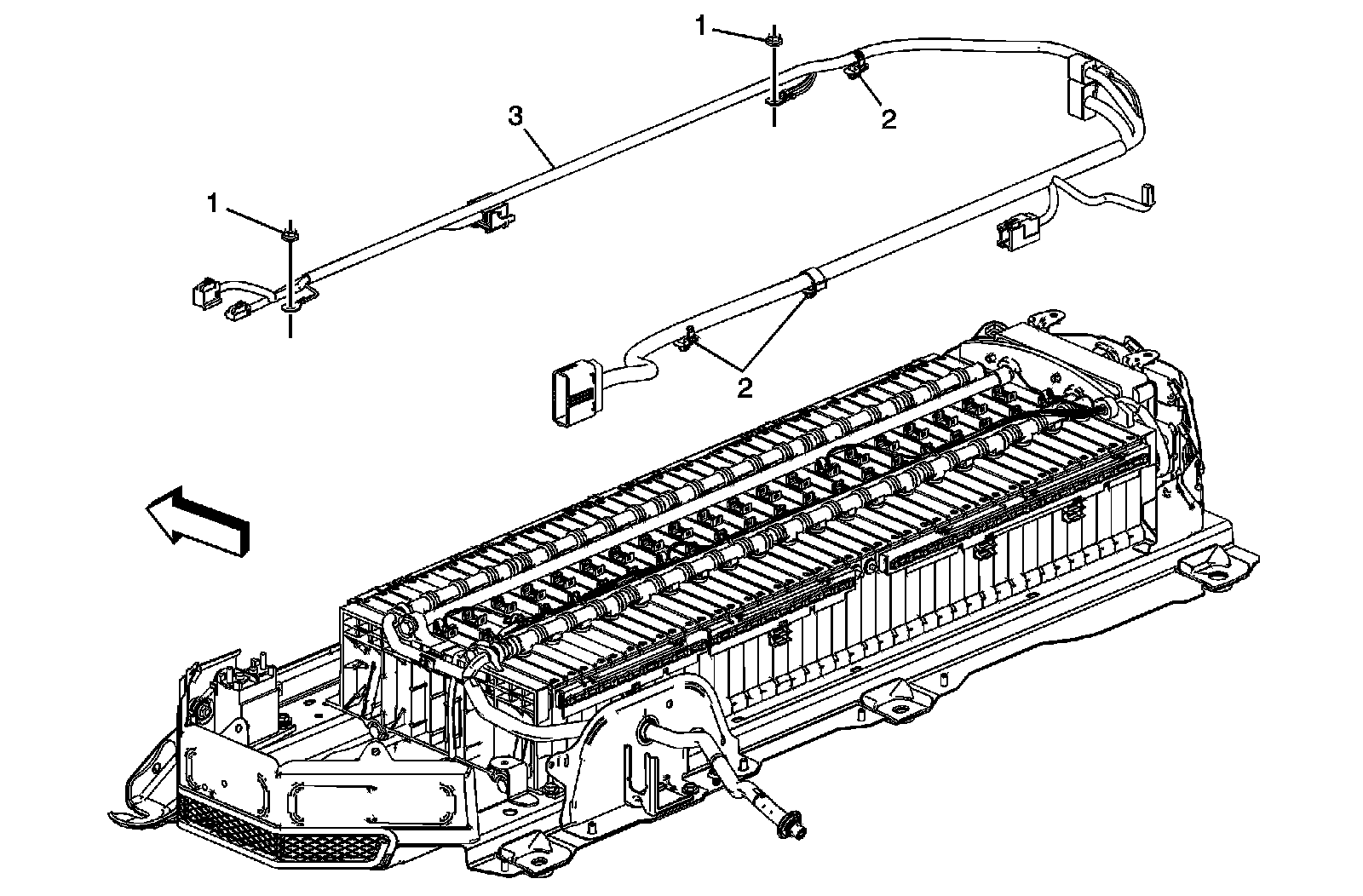

Drive Motor Battery Control Module Harness Replacement
