Accessory DC Power Control Module X2
Accessory DC Power Control Module X2
Component Connector End Views

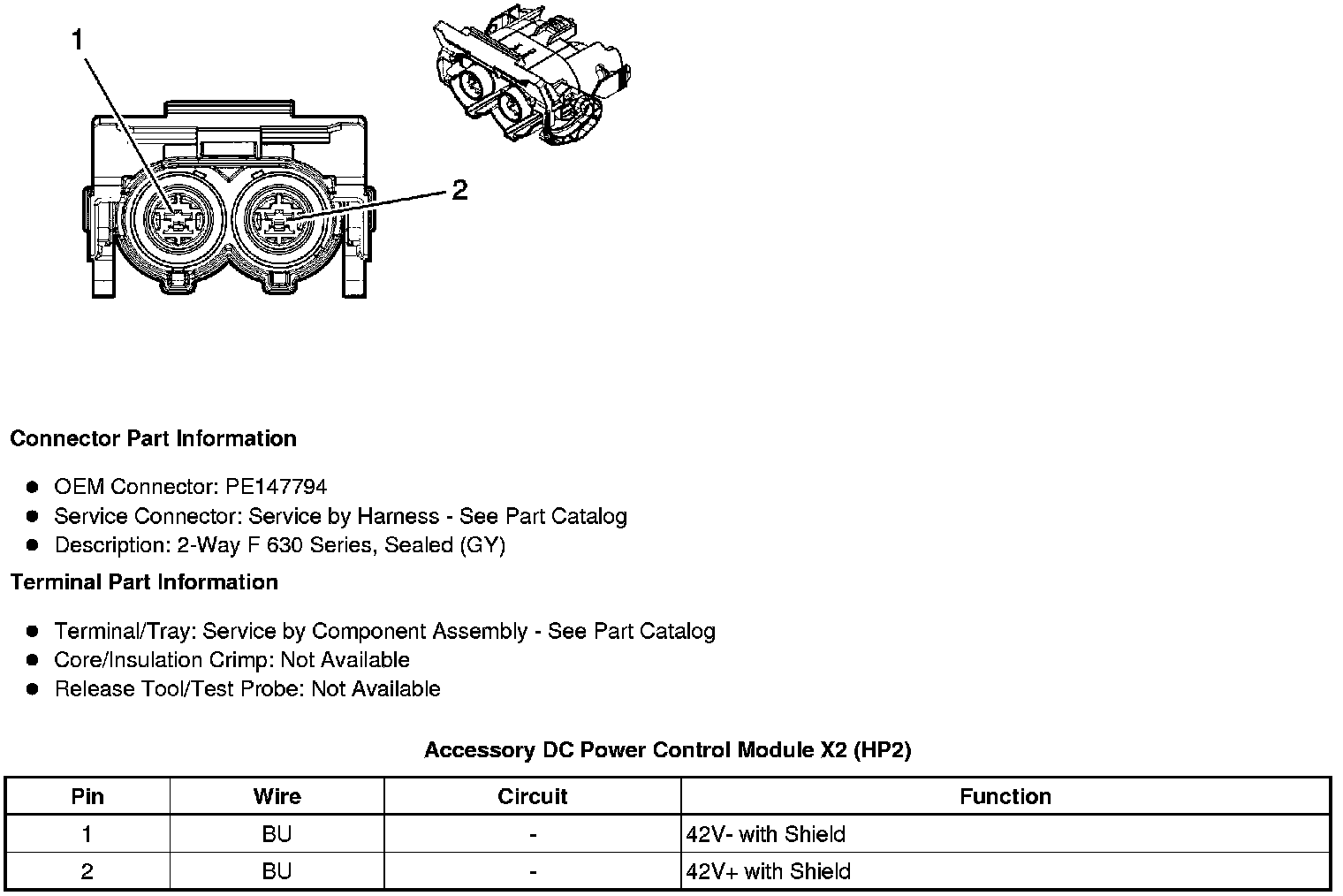

Accessory DC Power Control Module X2 (HP2)
