Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2011
>>
Tahoe 4WD V8-6.0L Hybrid
>>
Repair and Diagnosis
>>
Hybrid Drive Systems
>>
Drive Motor/Generator
>>
Drive Motor Power Cable
>>
Service and Repair
>>

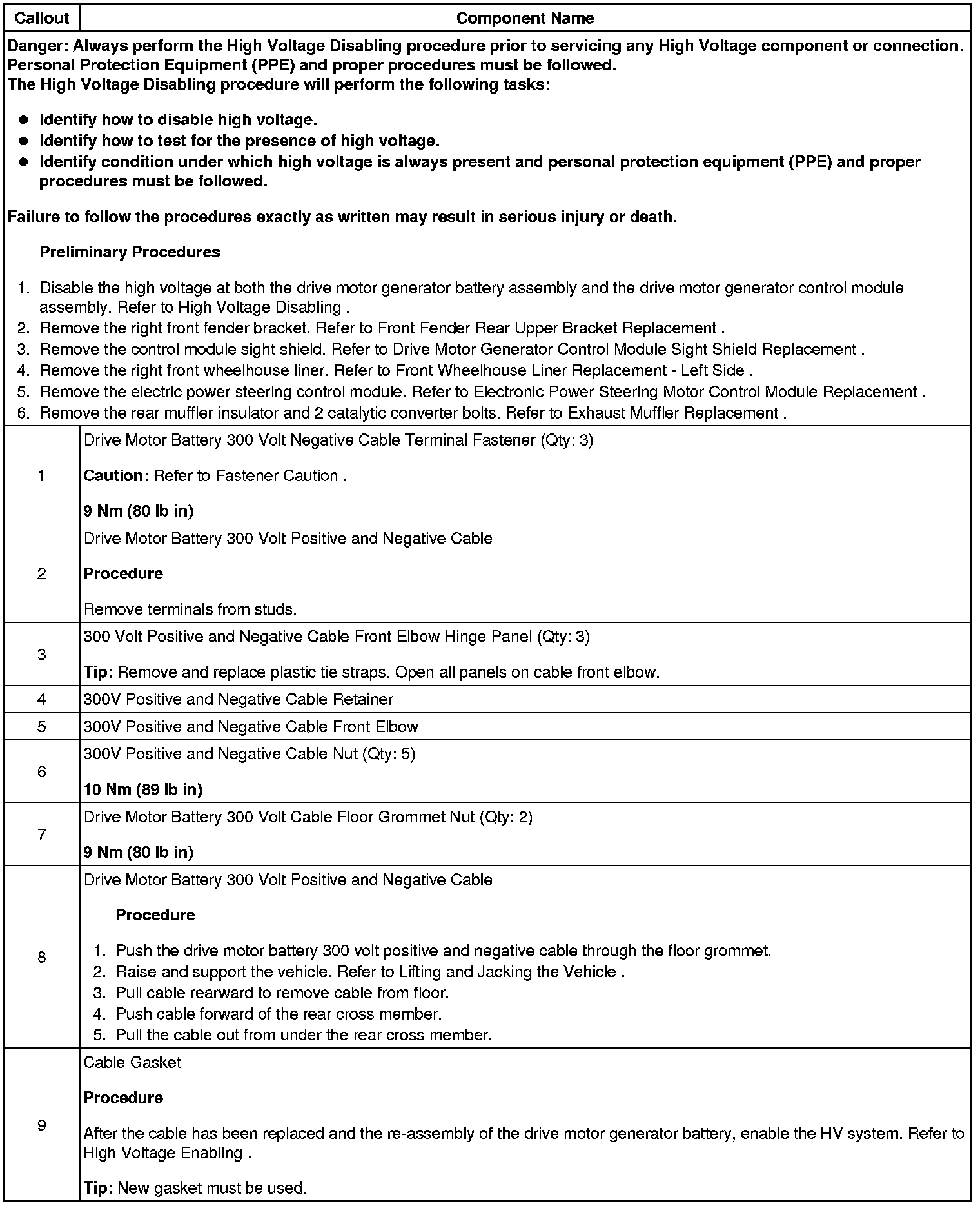

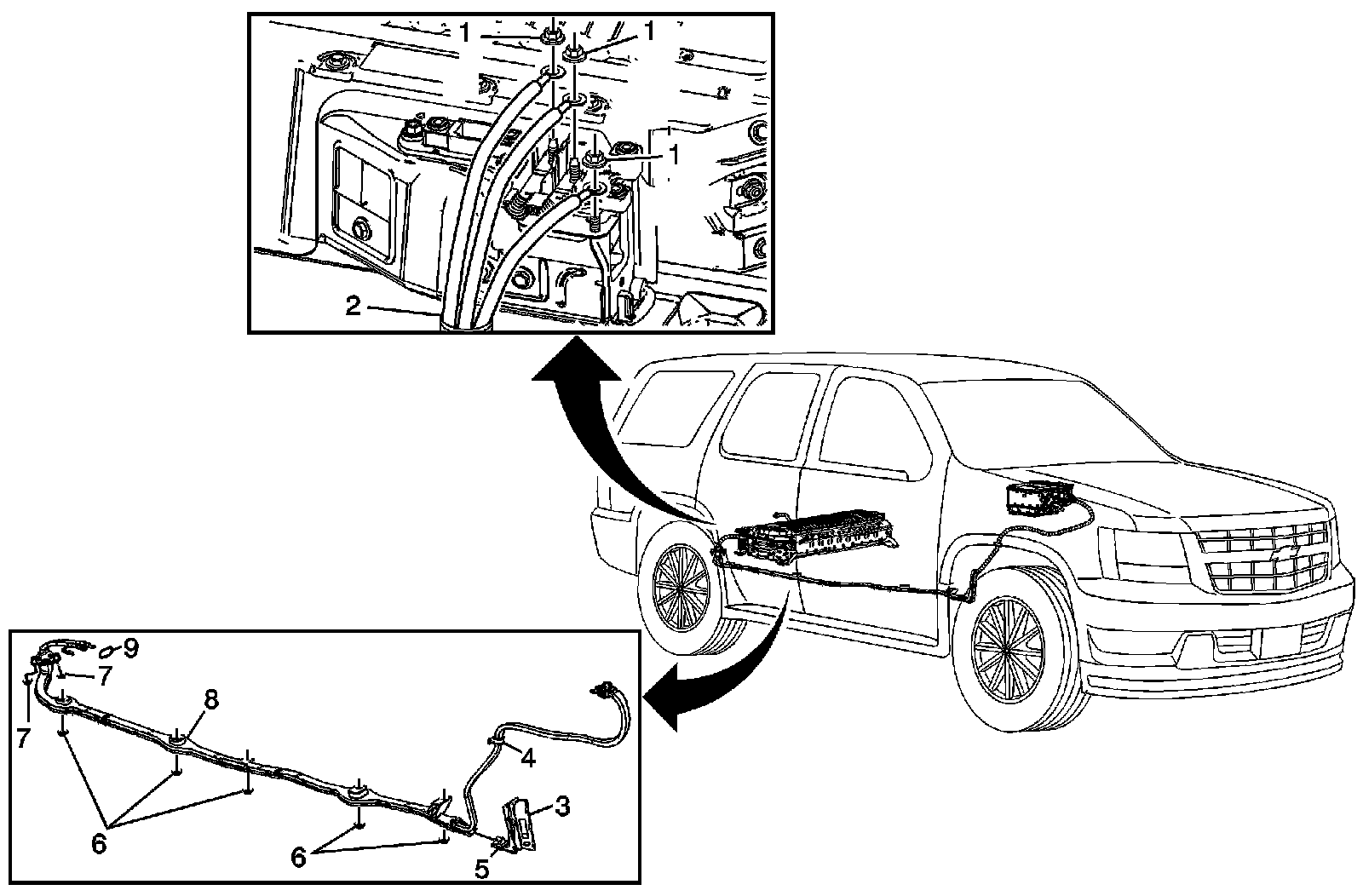

Drive Motor Battery 300-Volt Positive and Negative Cable Replacement
Drive Motor Battery 300-Volt Positive and Negative Cable Replacement
Drive Motor Battery 300-Volt Positive and Negative Cable Replacement
