Generator Control Module Temperature Sensor
Generator Control Module Temperature Sensor
Component Connector End Views

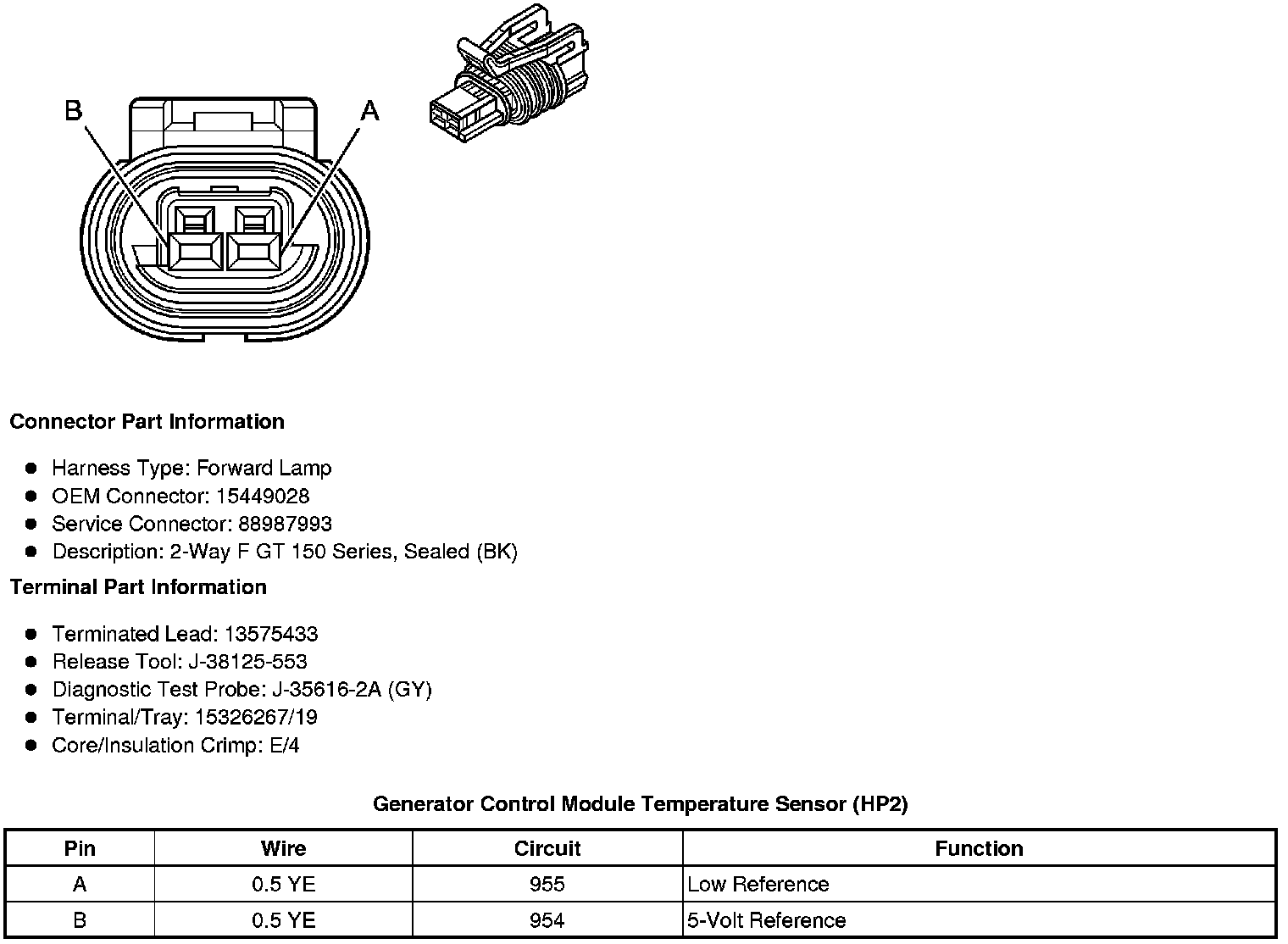

Generator Control Module Temperature Sensor (HP2)
