Fuel Pump Flow Control Module (without JL1)
Fuel Pump Flow Control Module (without JL1)
Component Connector End Views

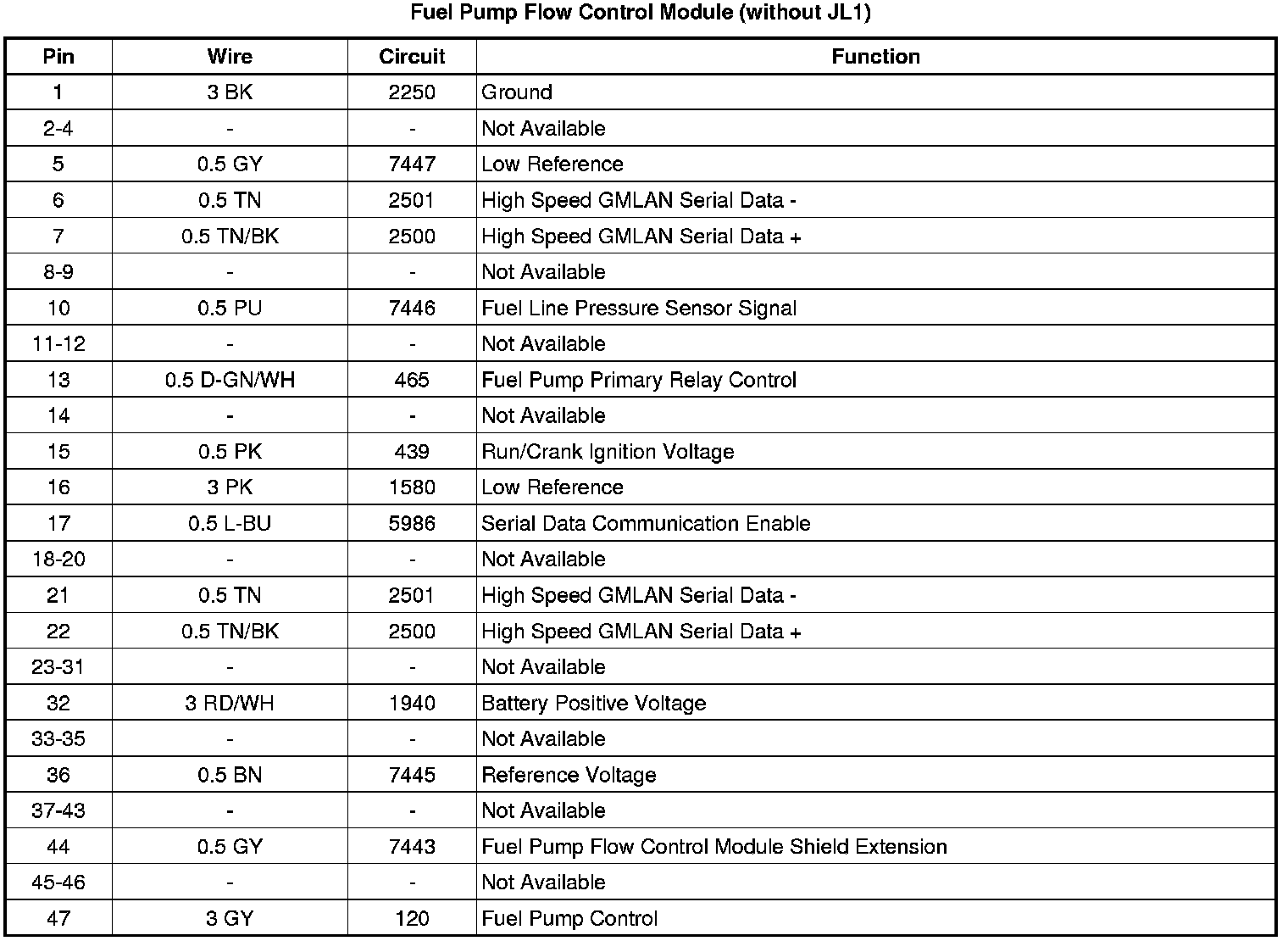

Fuel Pump Flow Control Module (without JL1)
