Daytime Running Lamp (DRL) - Right
Daytime Running Lamp (DRL) - Right
Component Connector End Views

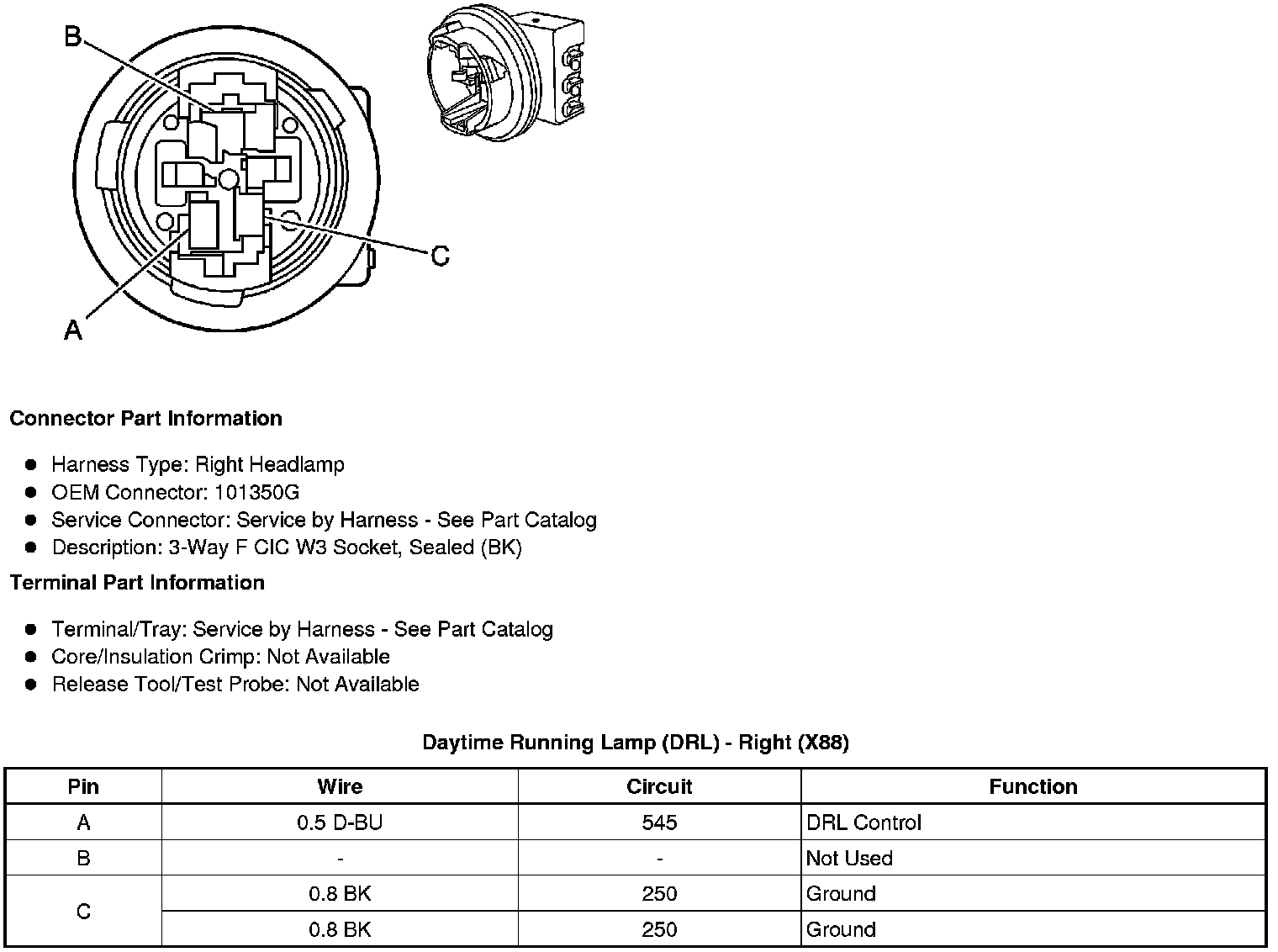

Daytime Running Lamp (DRL) - Right (X88)
