Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2011
>>
Silverado 2500 4WD V8-6.6L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Number
>>
X100 - X199
>>
X103
X103

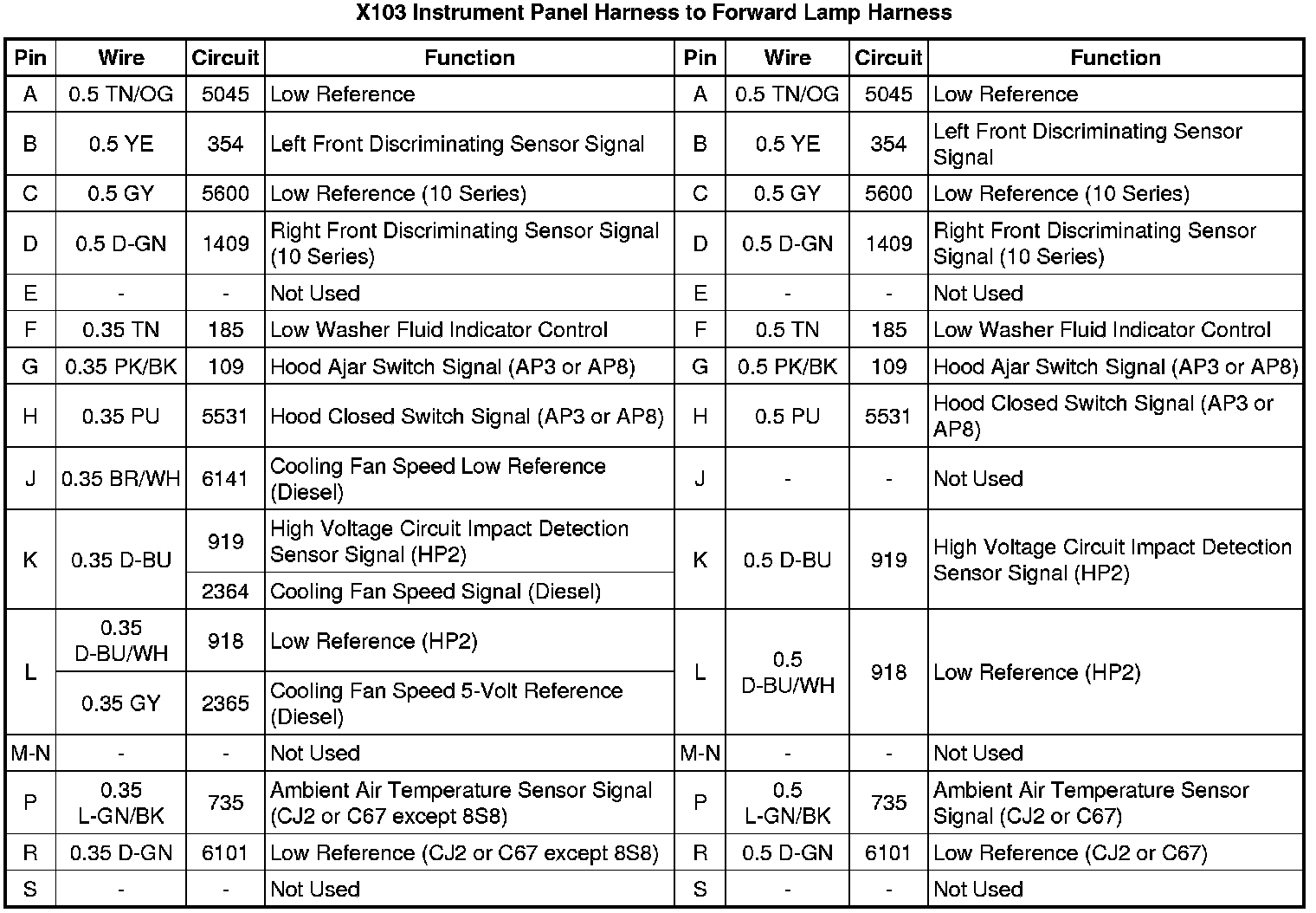

X103 Instrument Panel Harness to Forward Lamp Harness
