Home
>>
Chevy Truck
>>
2011
>>
HHR L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Number
>>
X200 - X299
>>
X211
X211

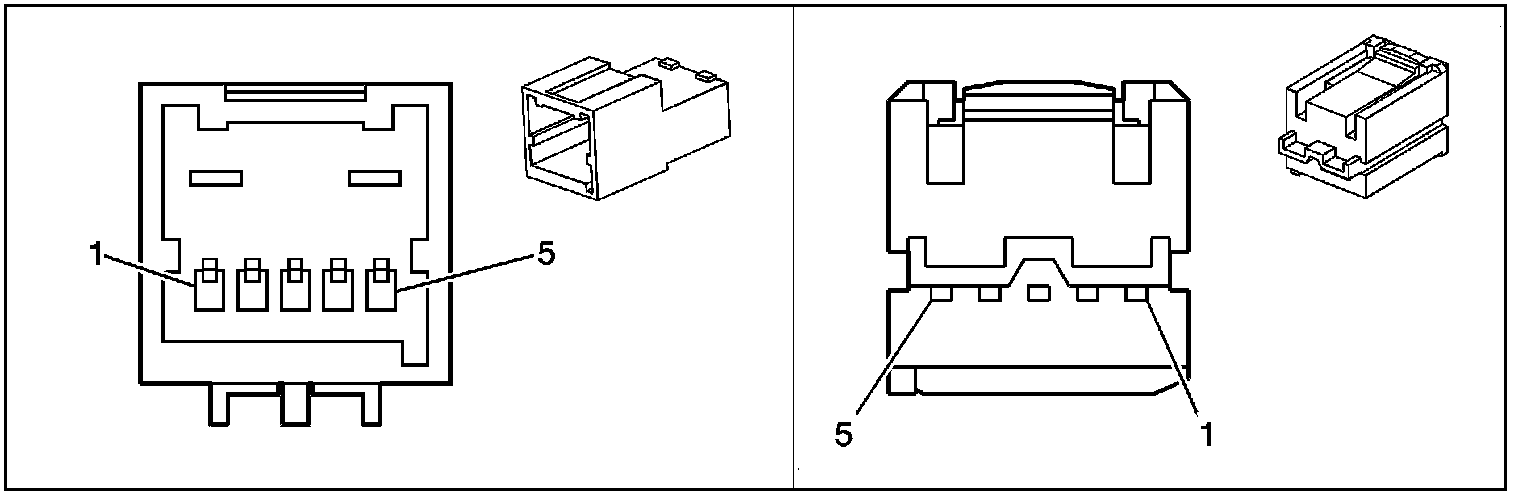

Inline Harness Connector End Views

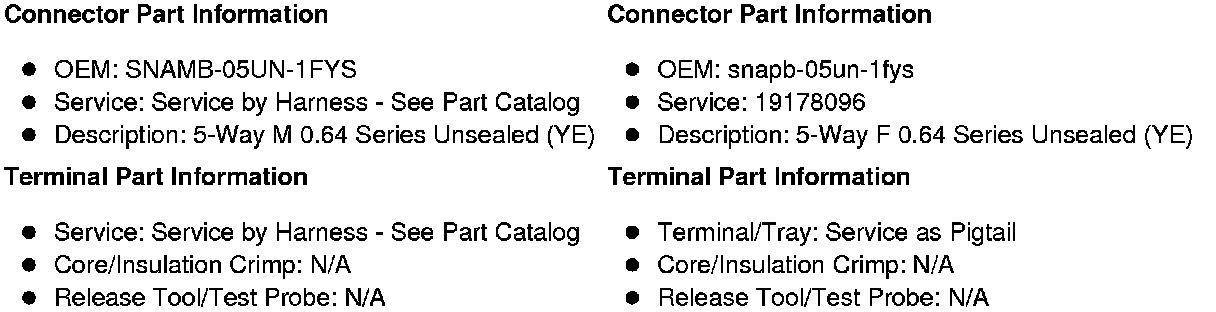

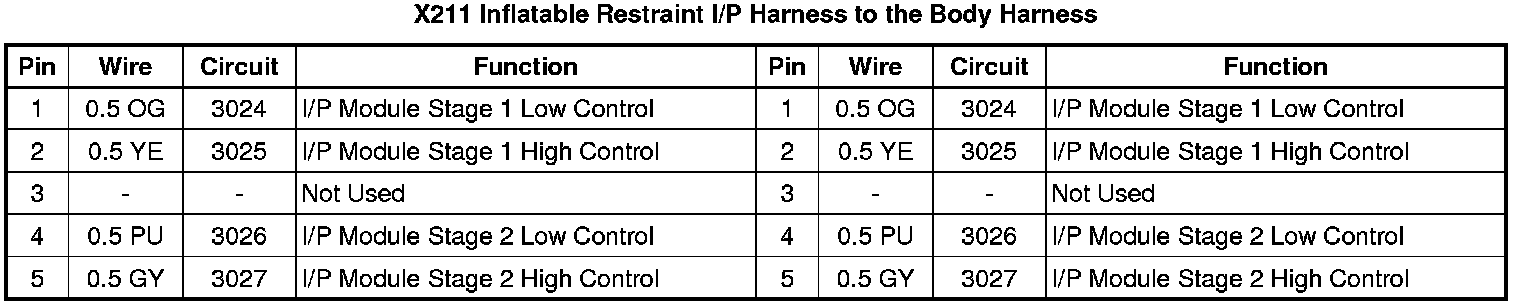

X211 Inflatable Restraint I/P Harness to the Body Harness
