Inflatable Restraint Steering Wheel Module Coil X3
Inflatable Restraint Steering Wheel Module Coil X3
Component Connector End Views

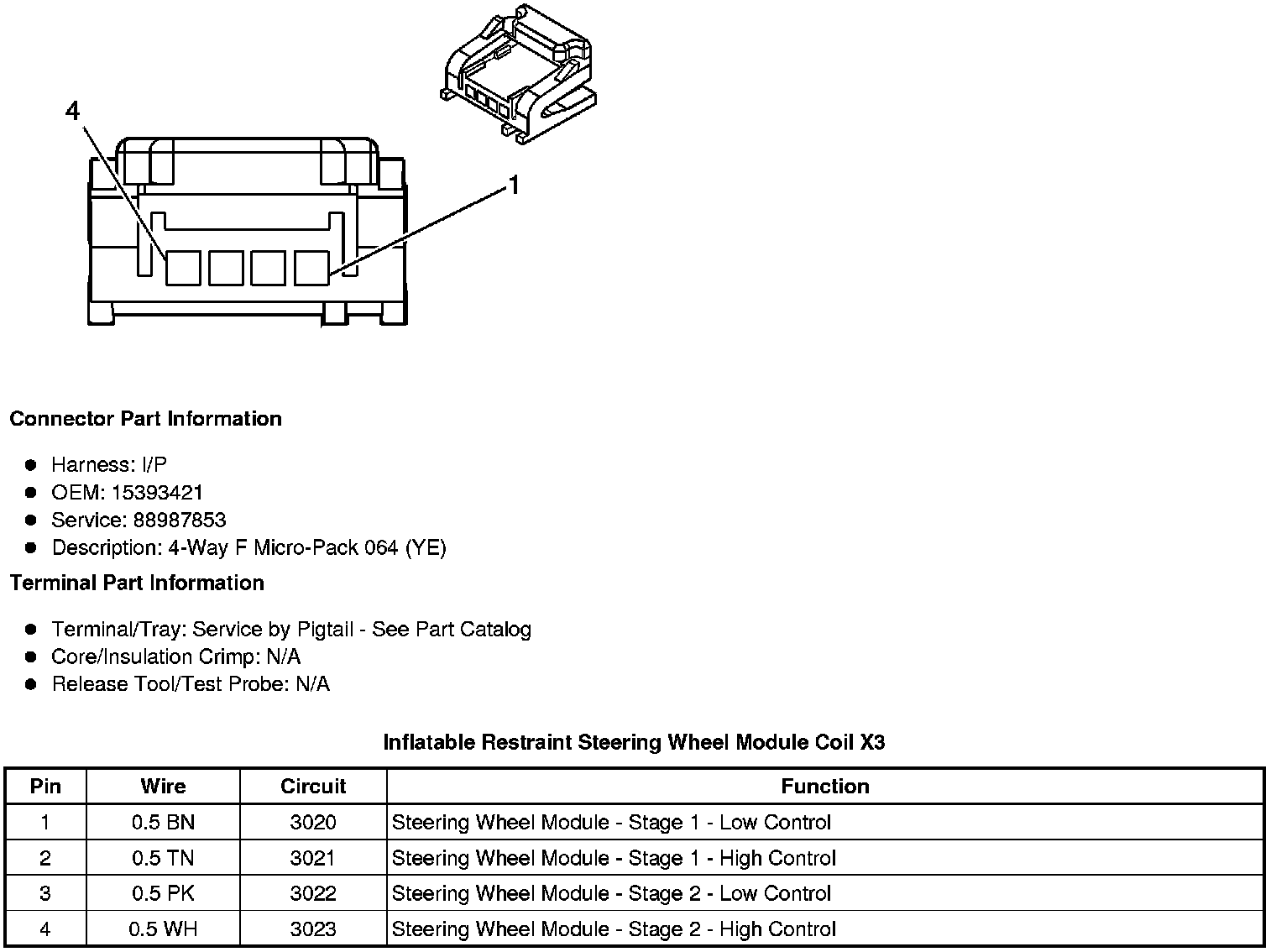

Inflatable Restraint Steering Wheel Module Coil X3
