X170

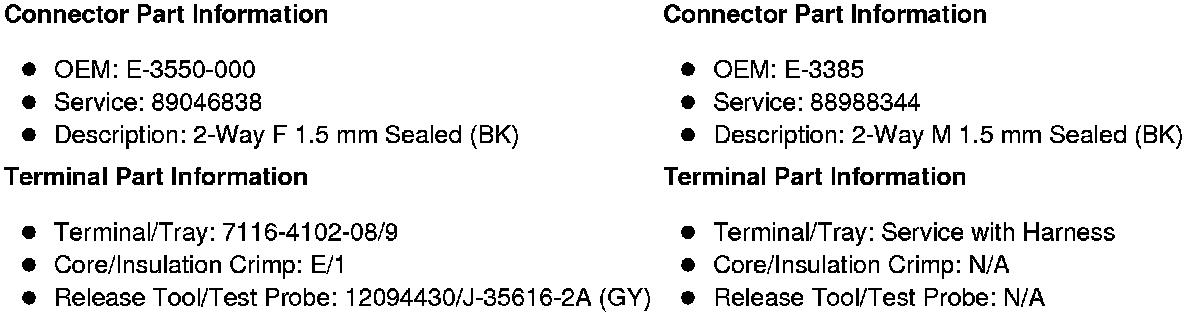

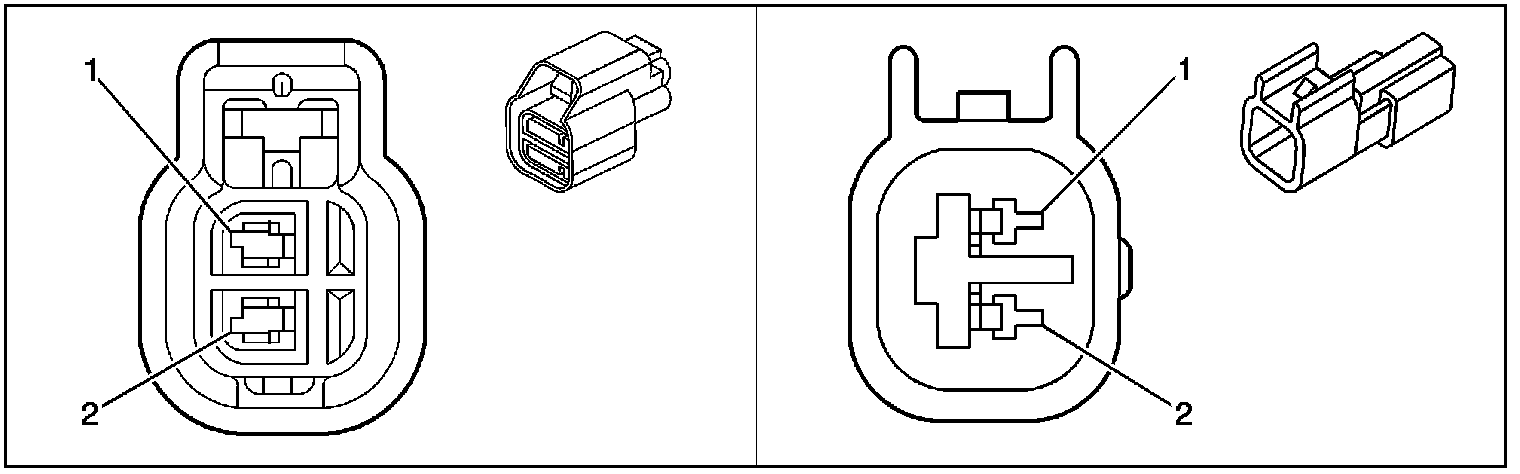

Inline Harness Connector End Views

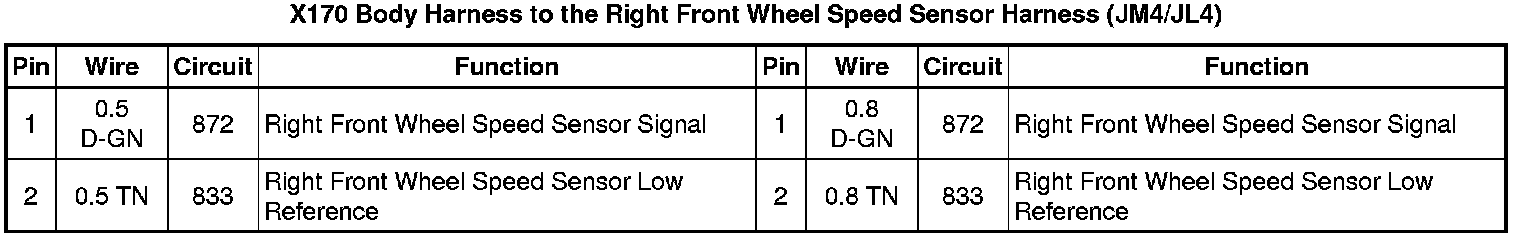

X170 Body Harness to the Right Front Wheel Speed Sensor Harness (JM4/JL4)
