Home
>>
Chevy Truck
>>
2011
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Inflatable Restraint I/P Module X2

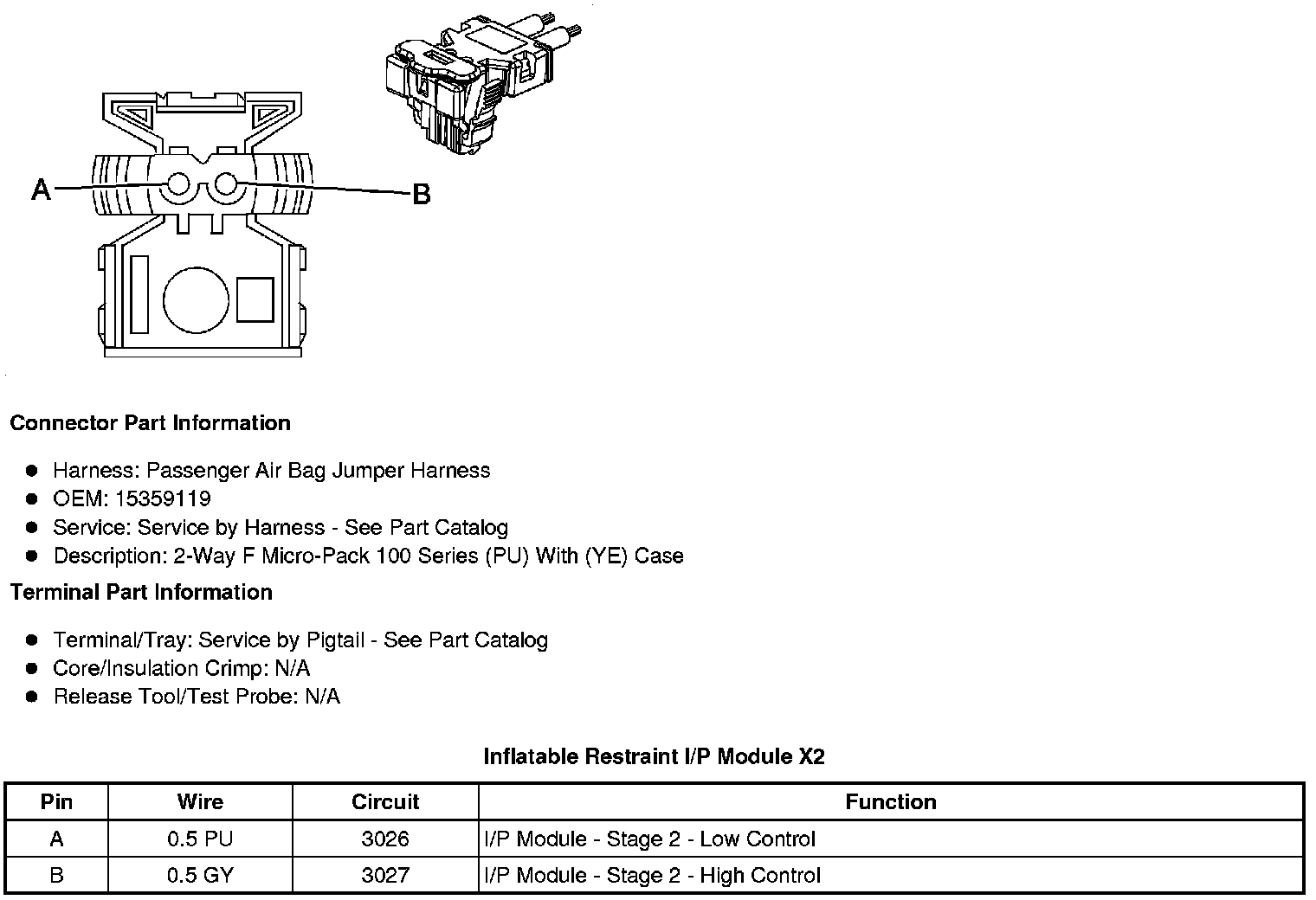

Inflatable Restraint I/P Module X2
Component Connector End Views
Inflatable Restraint I/P Module X2
