Chevy Truck
>>
2011
>>
HHR L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Digital Radio Receiver (U2K)
Digital Radio Receiver (U2K)

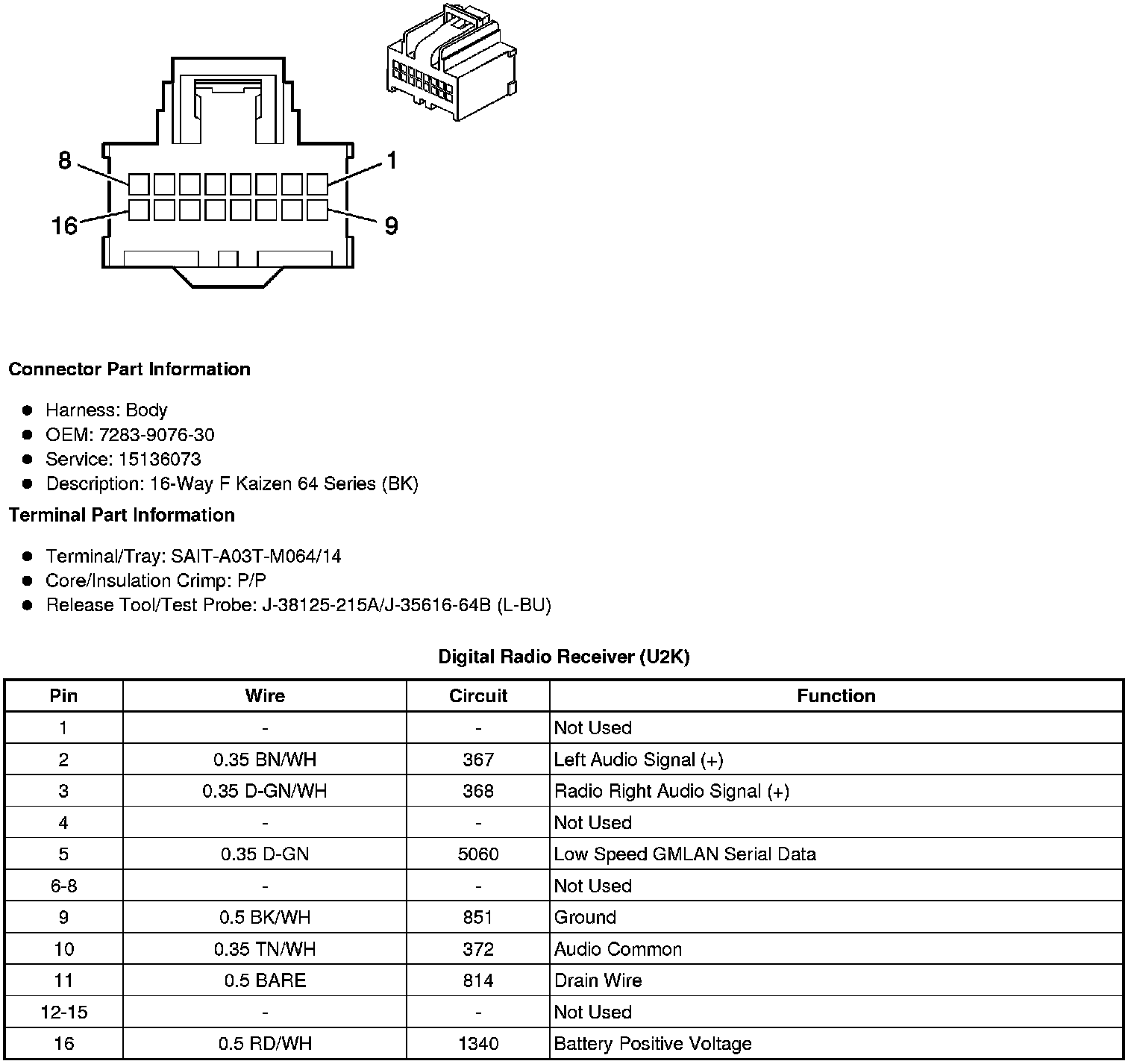

Component Connector End Views
Digital Radio Receiver (U2K)
