Front Bumper Fascia Air Deflector Replacement

Front Bumper Fascia Air Deflector Replacement

Removal Procedure

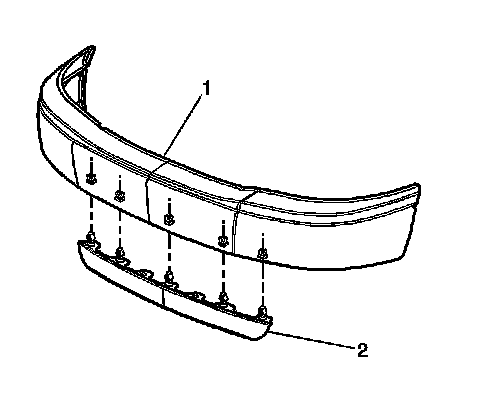

1. Release the push-pins that retain the air deflector (2) to the front impact bar (1).
2. Remove the air deflector (2) from the front impact bar (1).

Installation Procedure




1. Install the air deflector (2) to the front impact bar (1).
2. Install and fully seat the push-pins that retain the air deflector (2) to the front impact bar (1).
