Chevy Truck
>>
2011
>>
Express 1500 AWD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Deactivation Indicator
Air Bag Deactivation Indicator

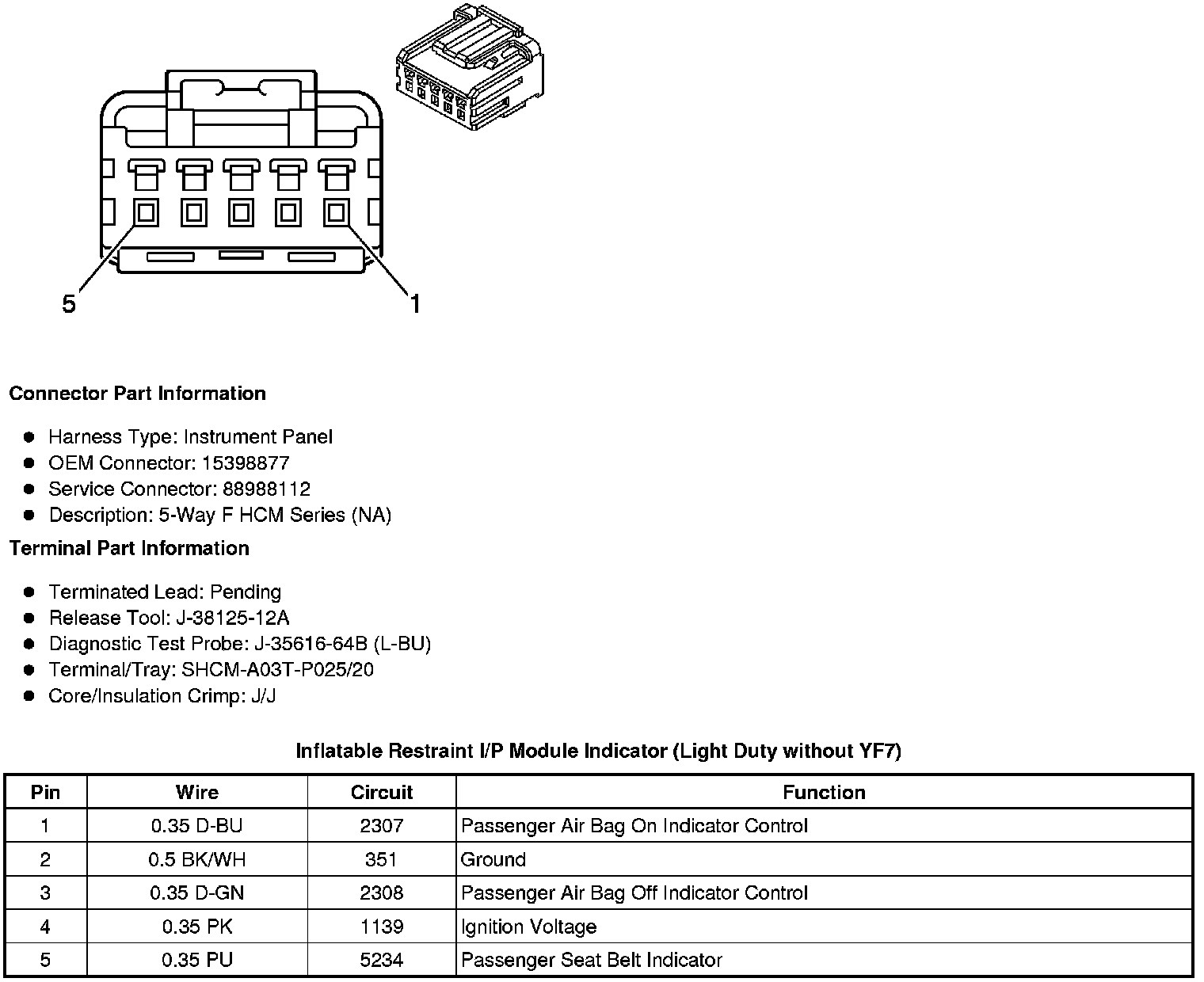

Component Connector End Views
Inflatable Restraint I/P Module Indicator (Light Duty without YF7)
