Trunk / Liftgate Motor
Trunk / Liftgate Motor
Component Connector End Views

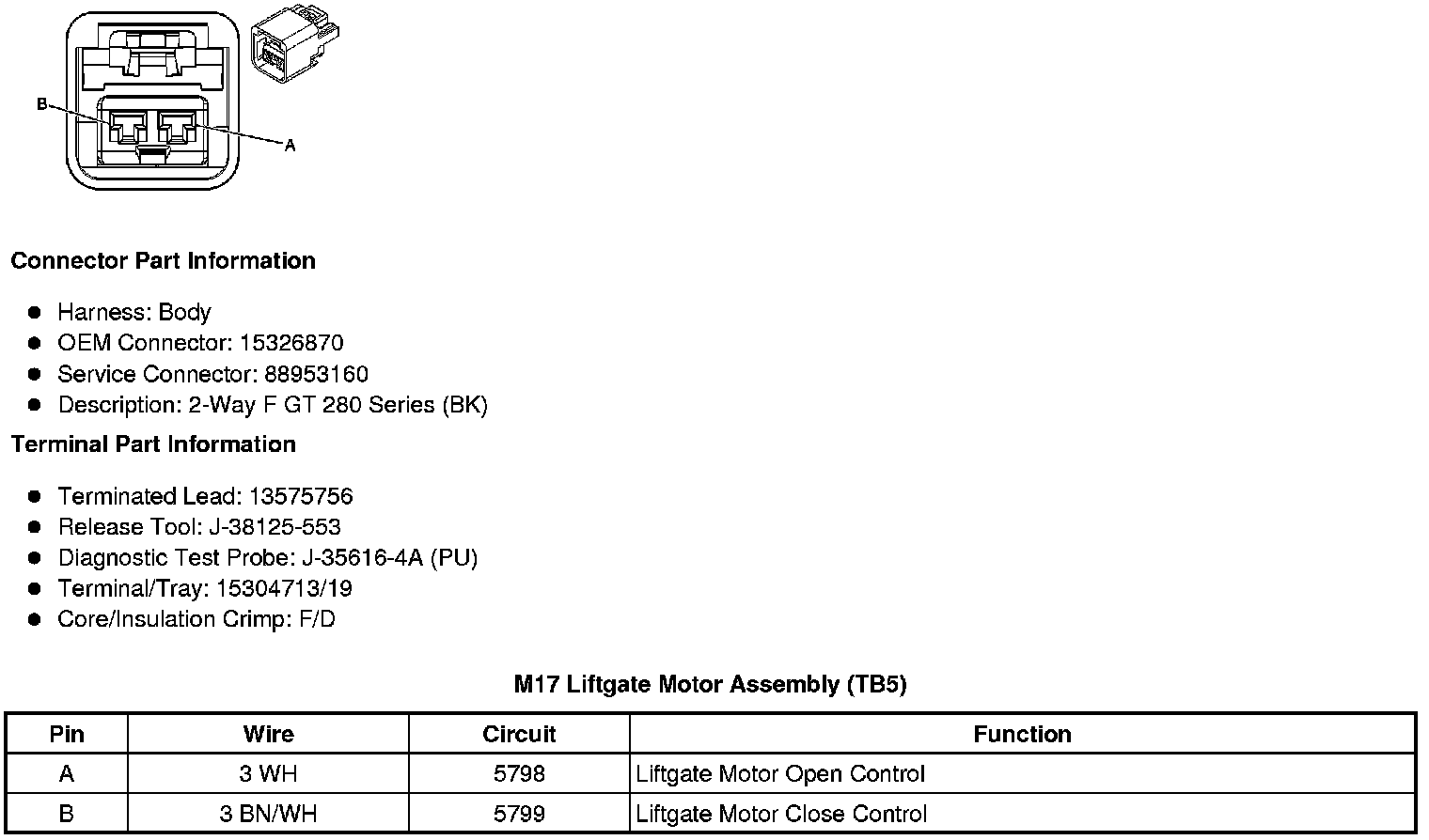

M17 Liftgate Motor Assembly (TB5)
