Home >> Chevy Truck >> 2011 >> Equinox AWD L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> 6T30/6T40/6T45/6T50 - Automatic Transmission >> 45. Control Valve Body Assembly Disassemble

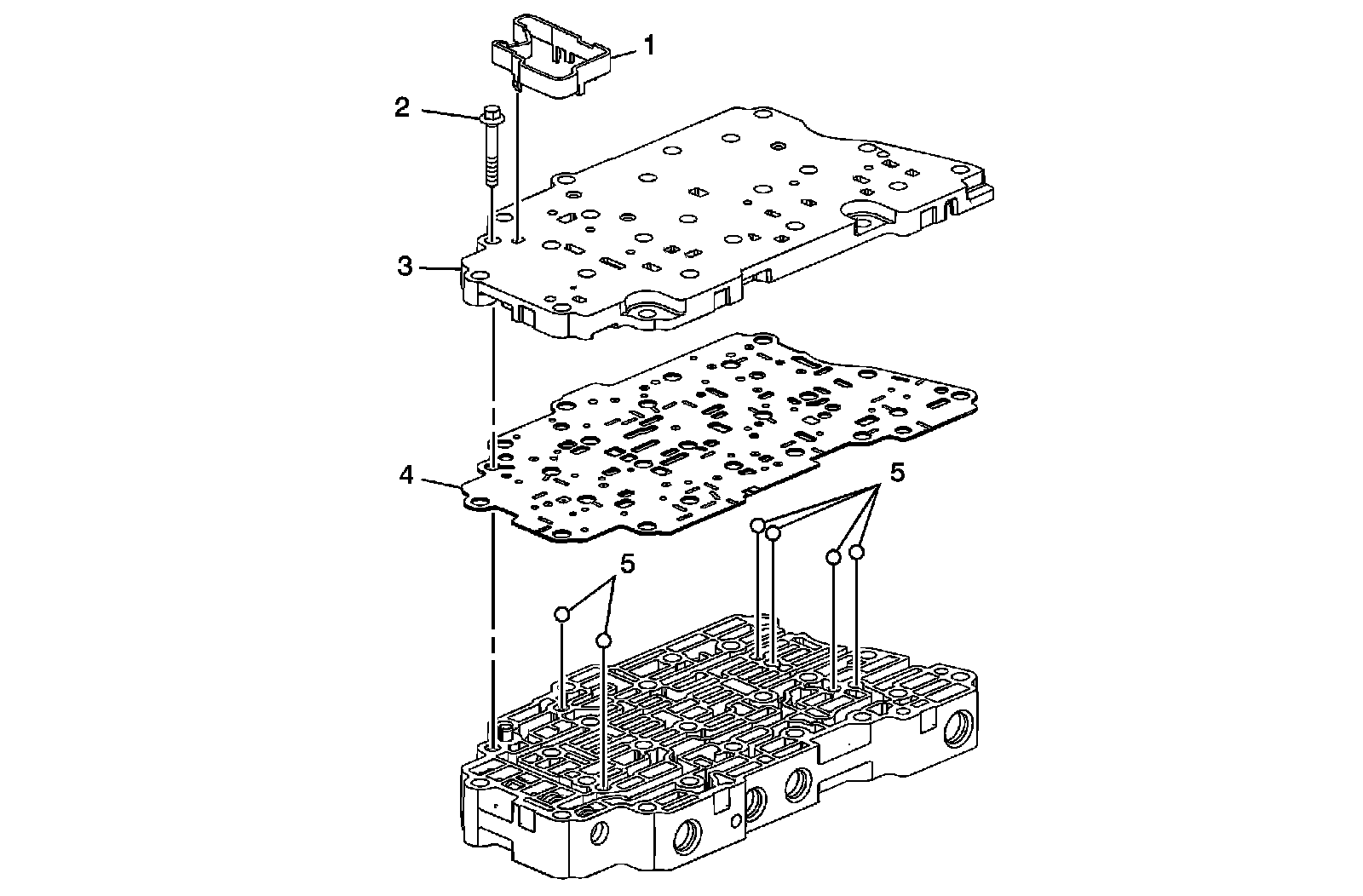

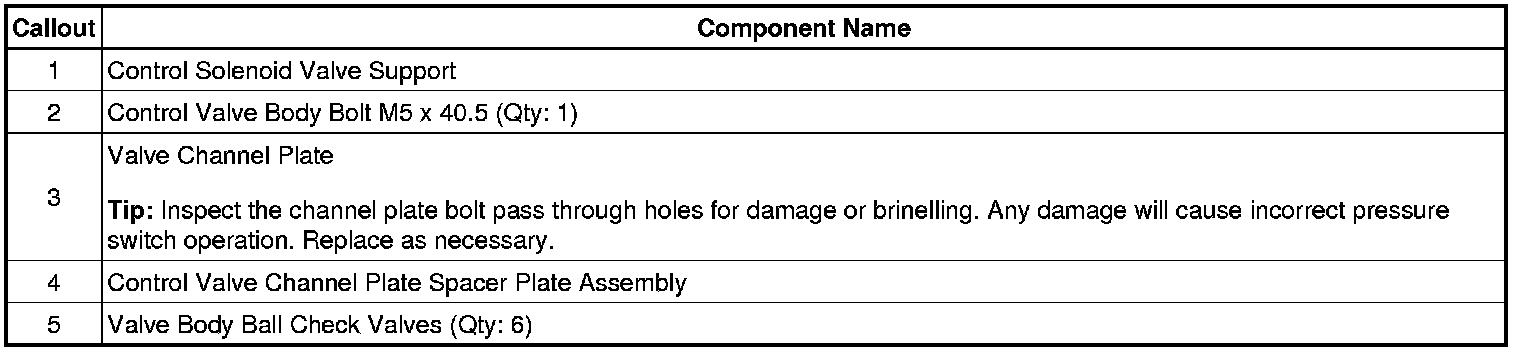

45. Control Valve Body Assembly Disassemble




Control Valve Body Assembly Disassemble
