Data Link Connector: Diagrams




Component Connector End Views

R6 Data Link Resistor

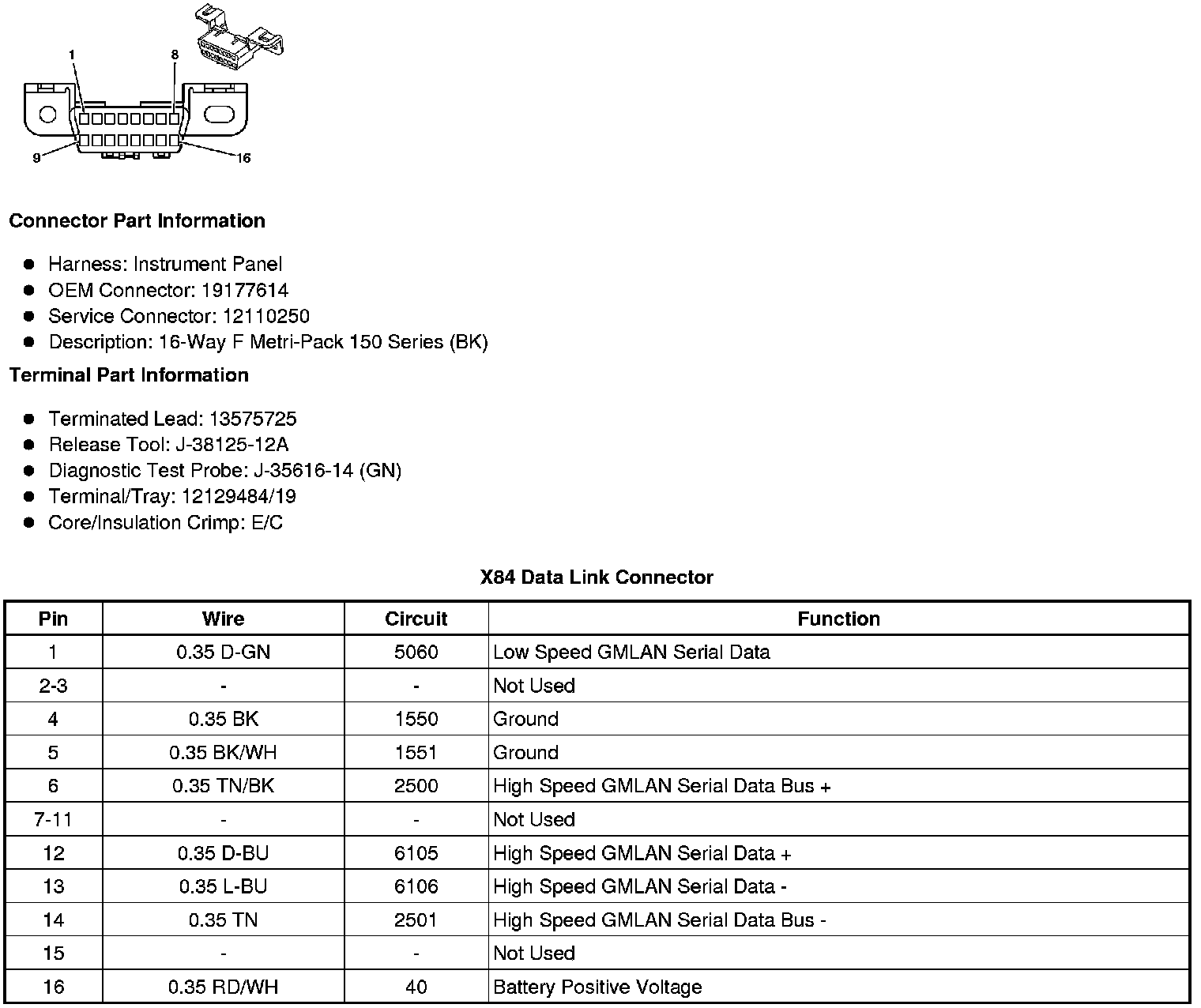

X84 Data Link Connector
