Home >> Chevy Truck >> 2011 >> Equinox AWD L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Compressor Clutch Hub >> Service and Repair

Compressor Clutch Hub: Service and Repair

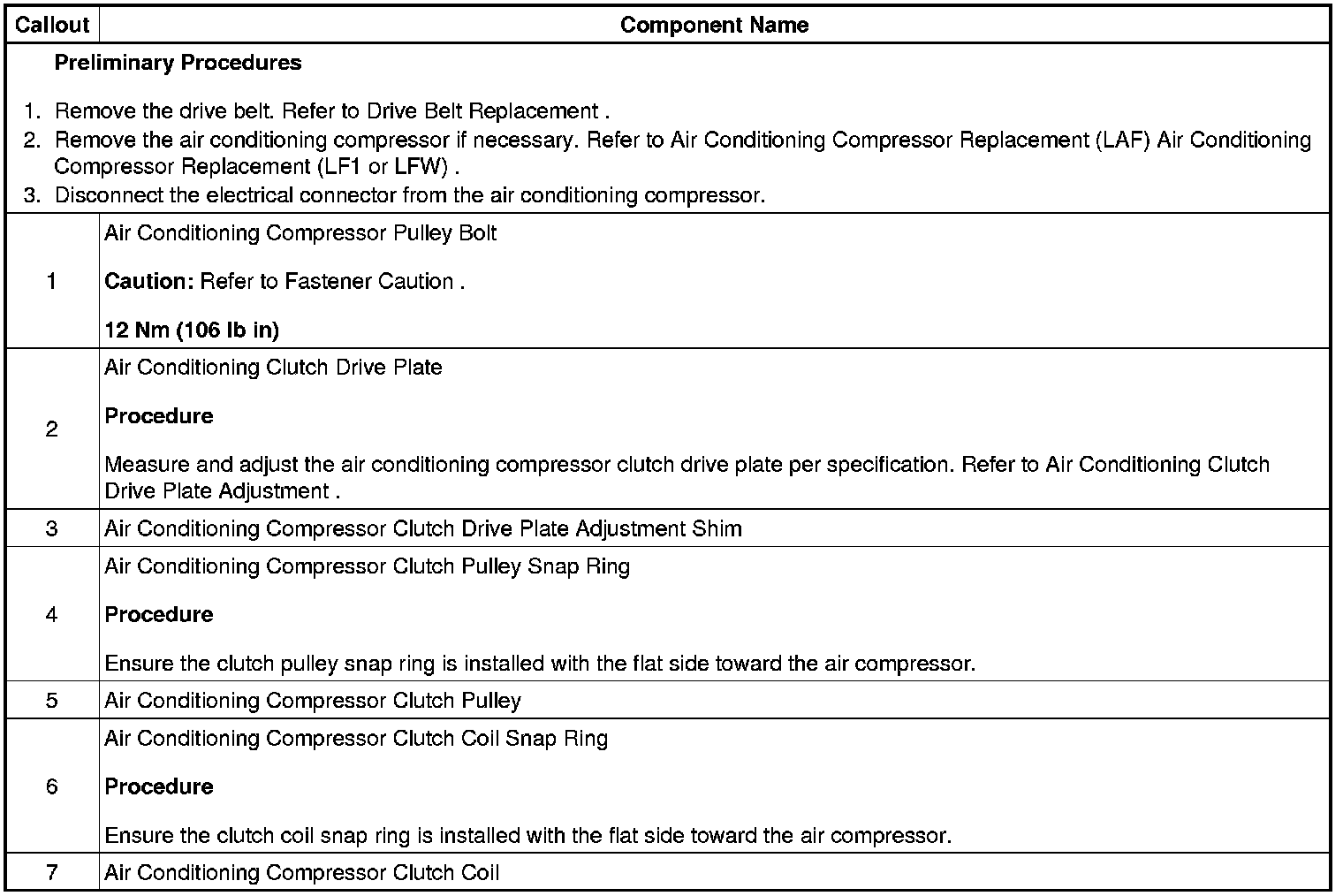

Compressor Clutch Plate and Hub Assembly Removal
