Chevy Truck
>>
2011
>>
Equinox AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Switch
Power Mirror Switch

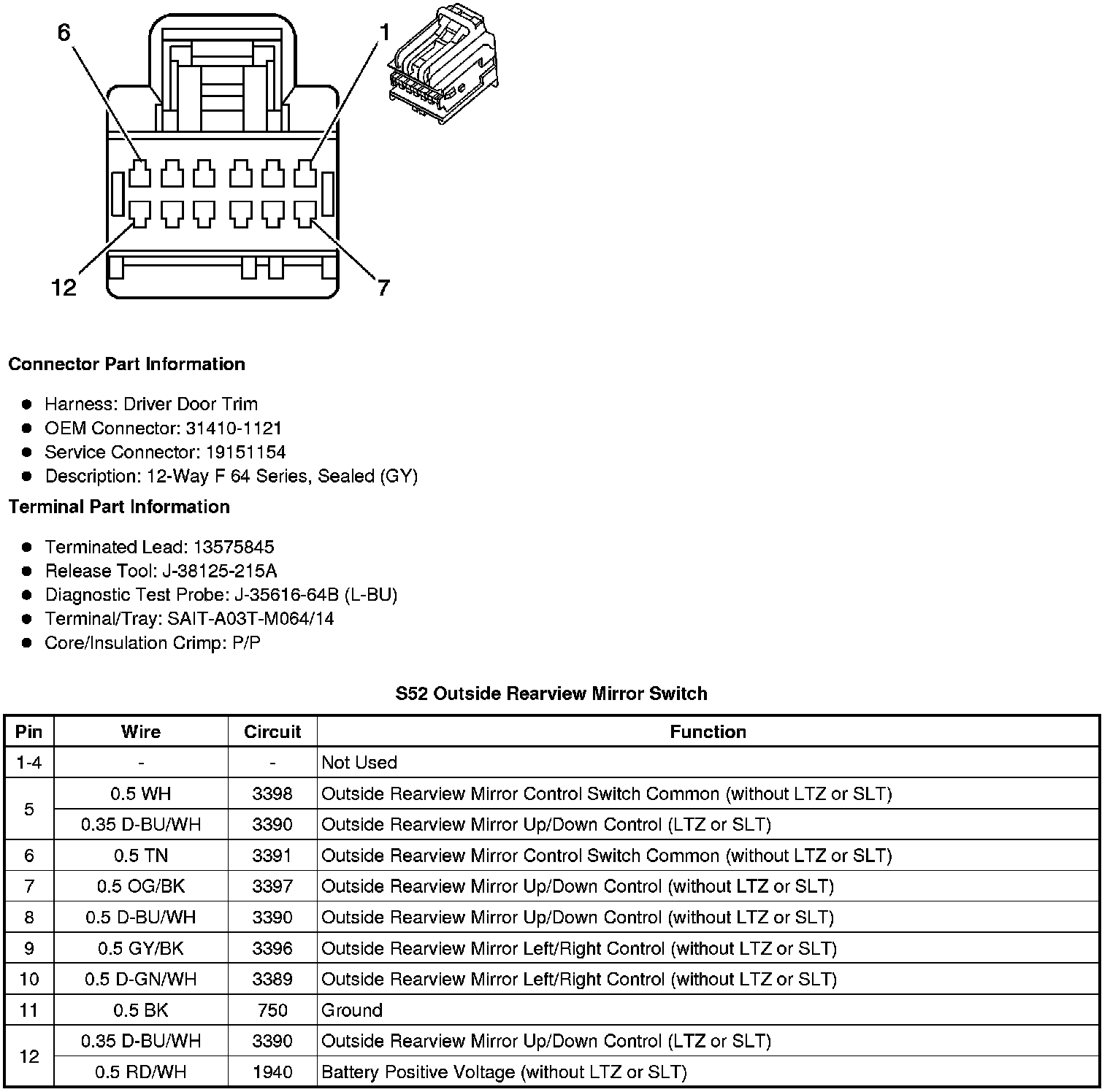

Component Connector End Views
S52 Outside Rearview Mirror Switch
