Chevy Truck
>>
2011
>>
Equinox AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry Module
Keyless Entry Module

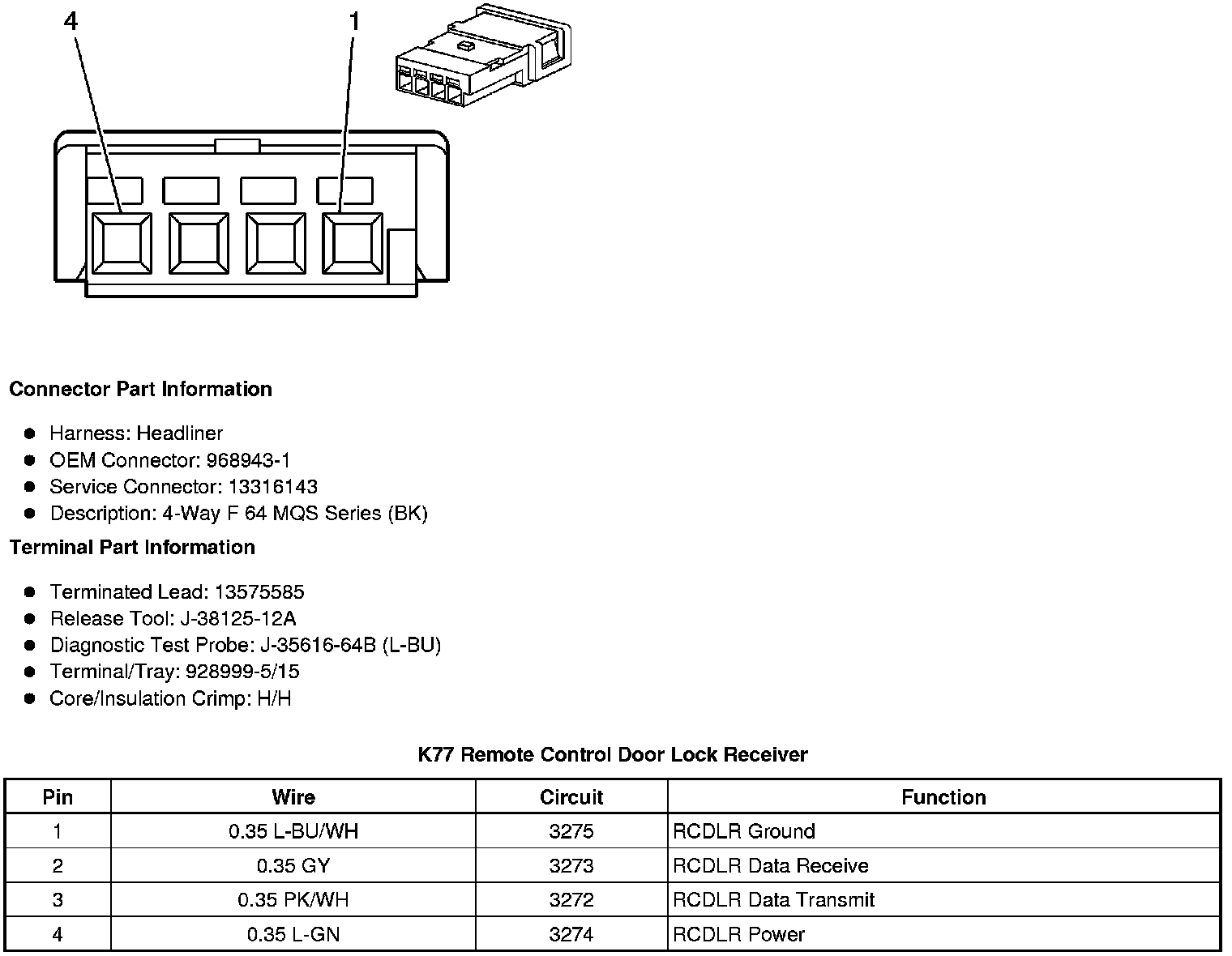

Component Connector End Views
K77 Remote Control Door Lock Receiver
