Evaporator Temperature Sensor / Switch
Evaporator Temperature Sensor / Switch

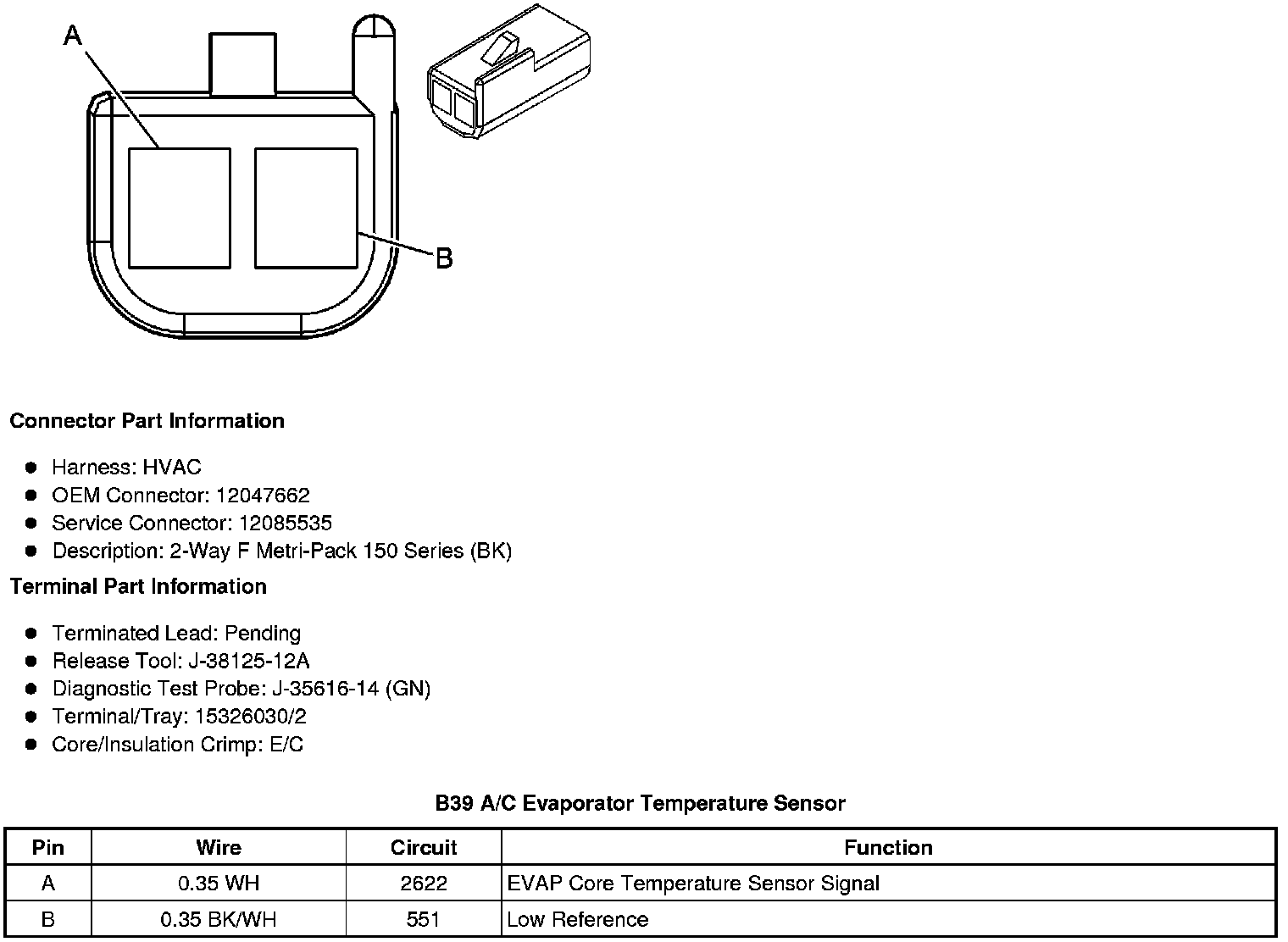

Component Connector End Views
B39 A/C Evaporator Temperature Sensor
