Home
>>
Chevy Truck
>>
2011
>>
Equinox AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Dome Lamp Switch
Dome Lamp Switch

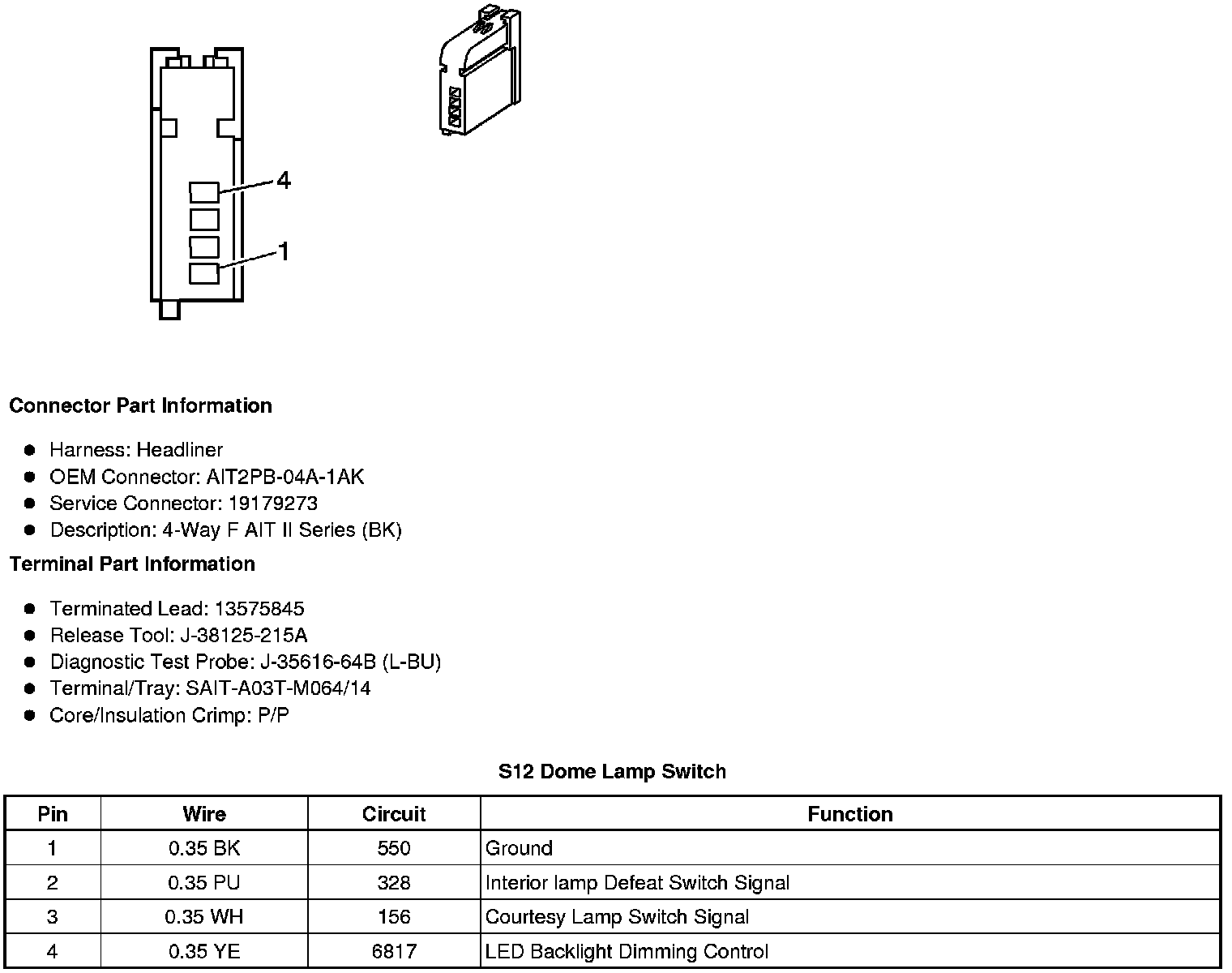

Component Connector End Views
S12
Dome Lamp Switch
