Immobilizer Antenna B101

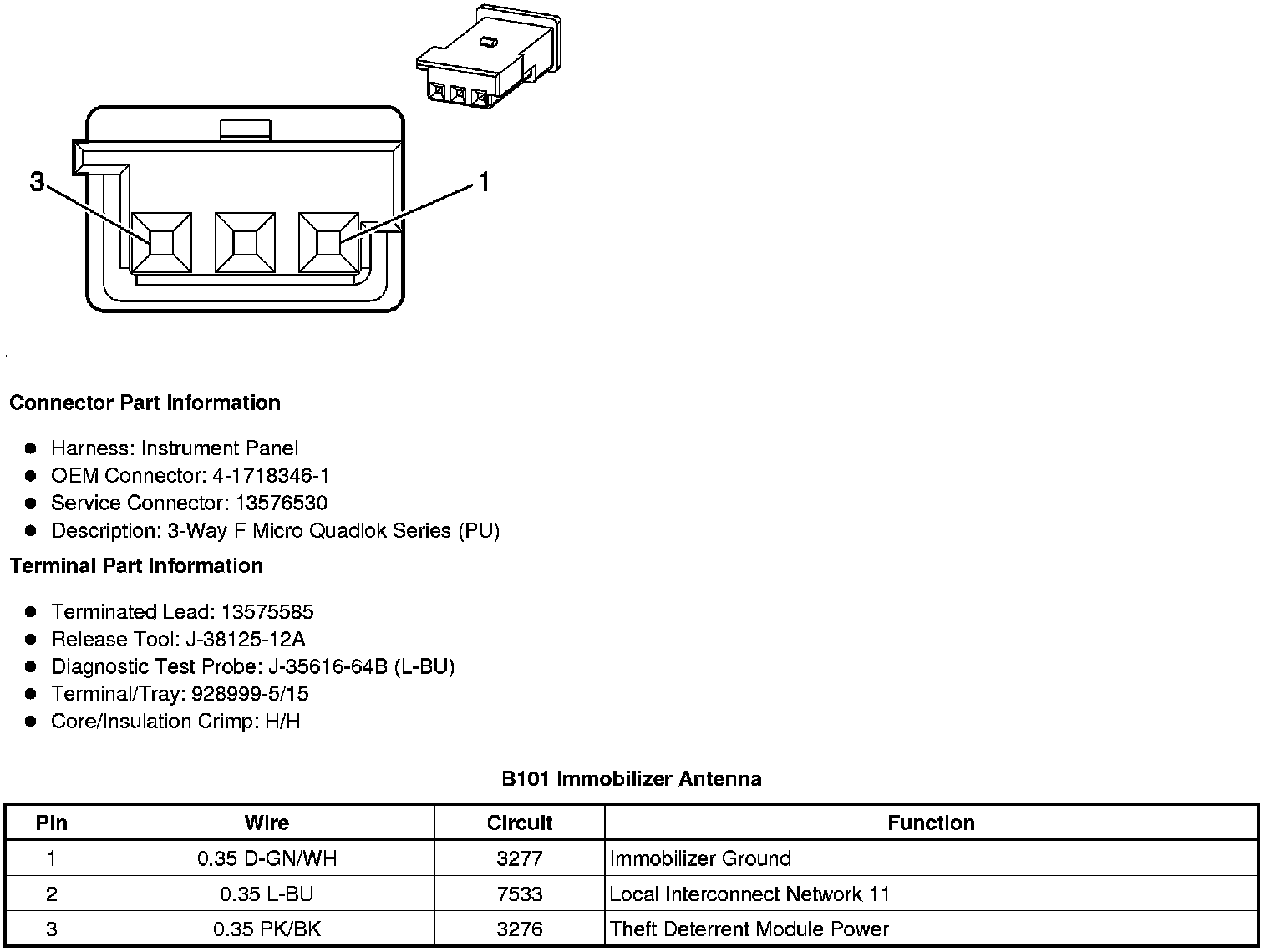

Immobilizer Antenna B101
Component Connector End Views
B101 Immobilizer Antenna
