Power Distribution Schematic 8
Power Distribution Schematic 8
Power Distribution Schematics

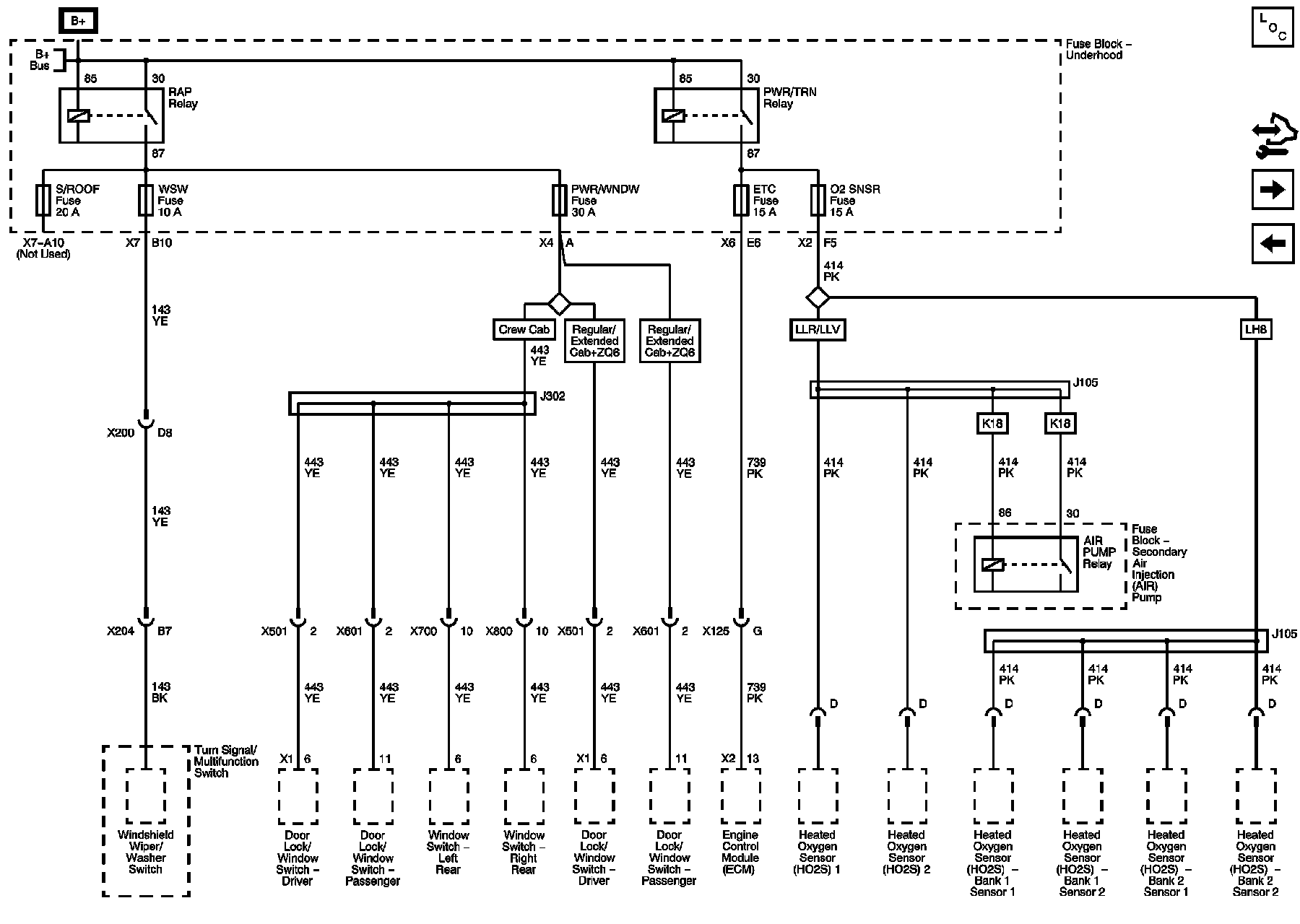

ETC, O2 SNSR, PWR/WNDW, S/ROOF, and WSW Fuses
