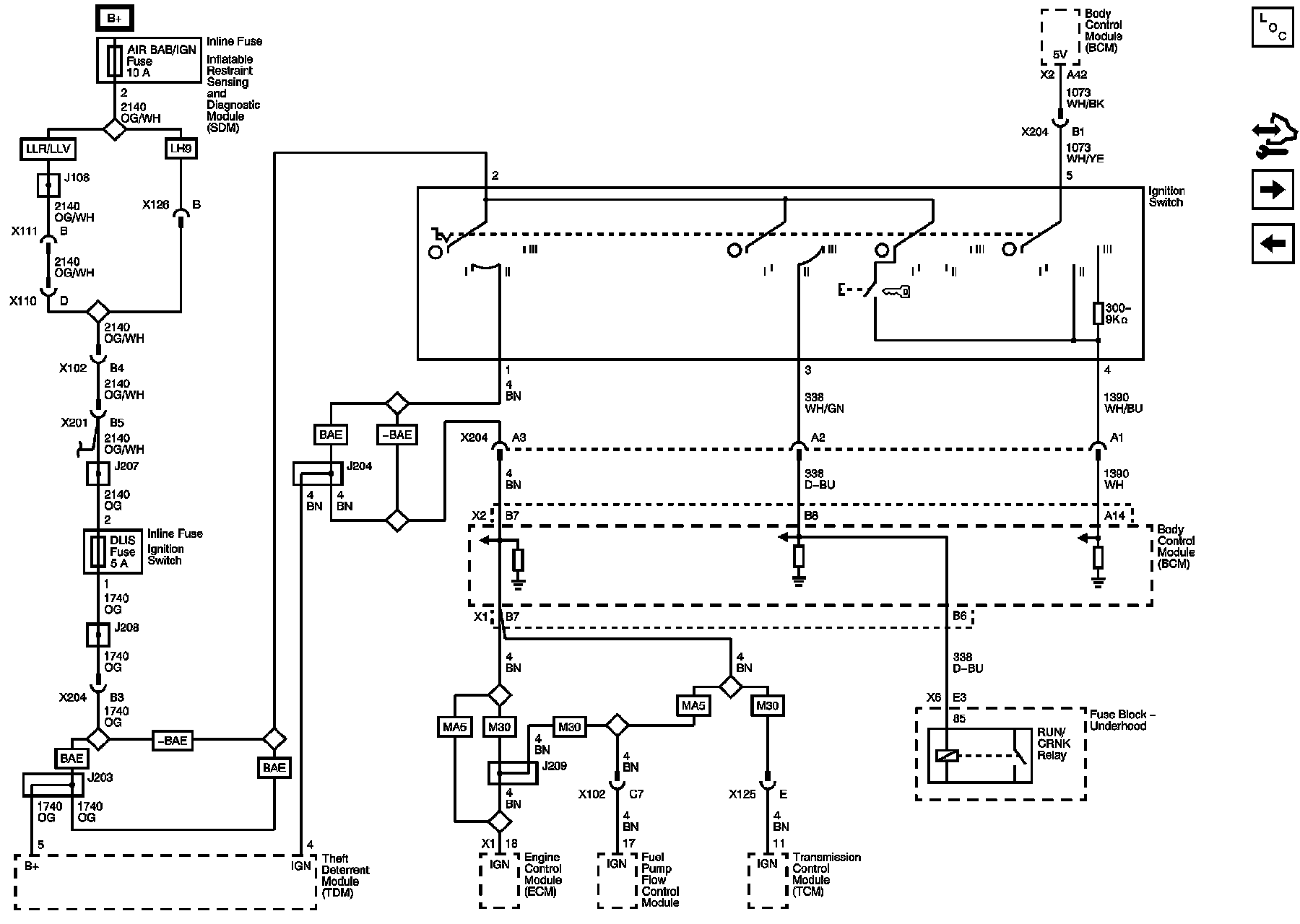

Power Distribution Schematic 4
Power Distribution Schematic 4
Power Distribution Schematics
Ignition Switch
