Home
>>
Chevy Truck
>>
2010
>>
Traverse AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate Motor
Trunk / Liftgate Motor

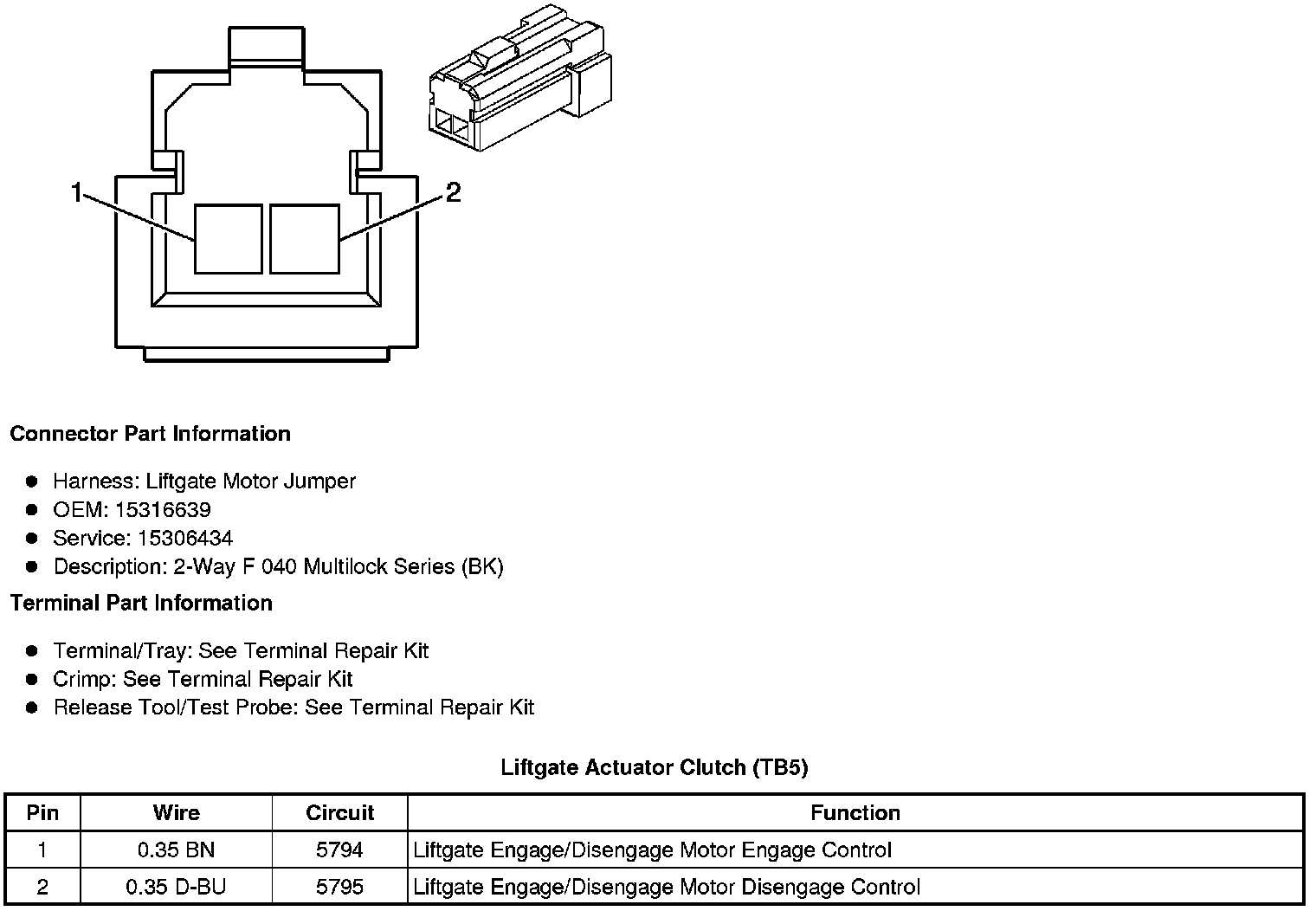

Component Connector End Views
Liftgate Actuator Clutch (TB5)
