Map Light
Map Light
Component Connector End Views
Courtesy/Reading Lamp - Center

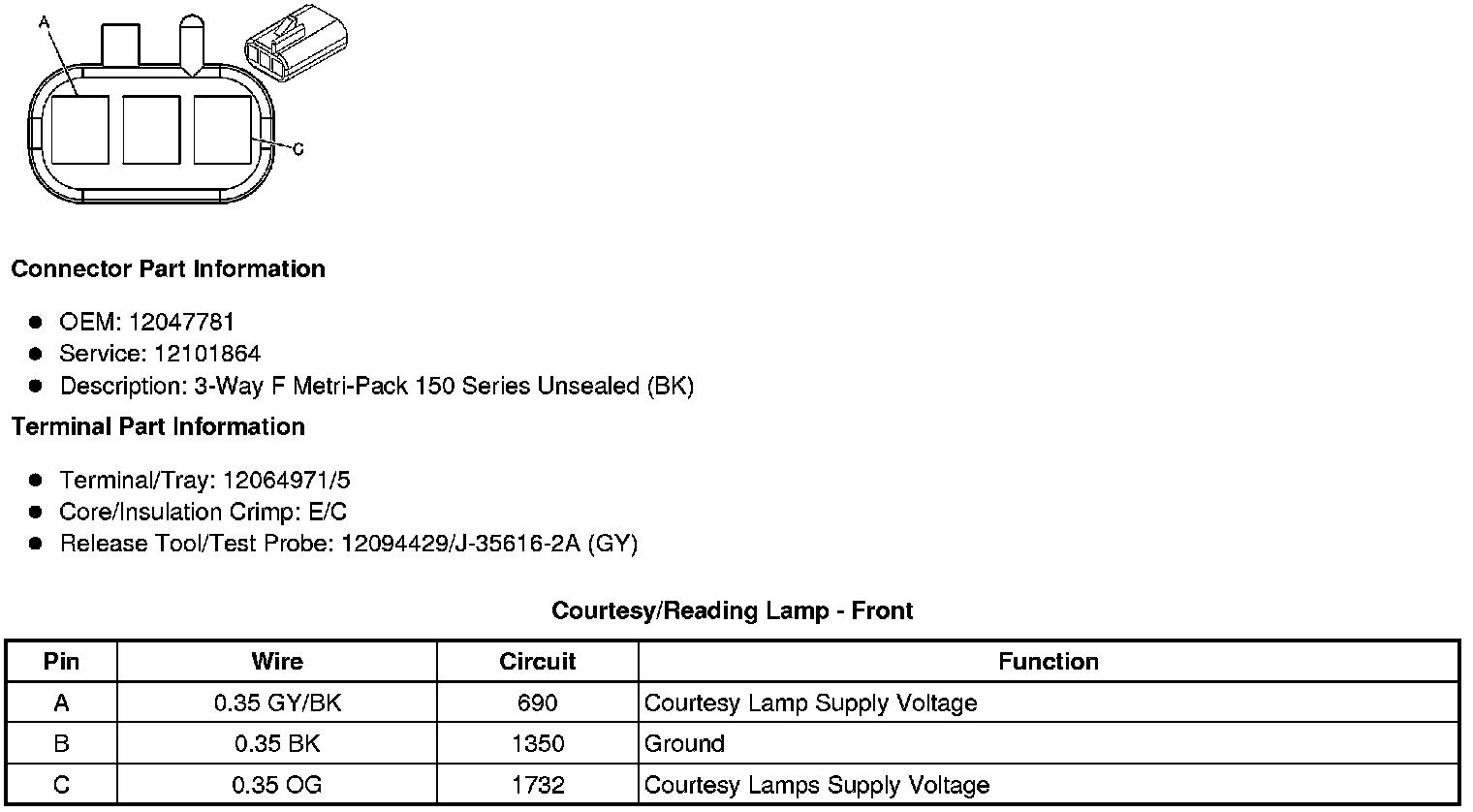

Courtesy/Reading Lamp - Front
