Compressor/Pump, Suspension Control




Component Connector End Views

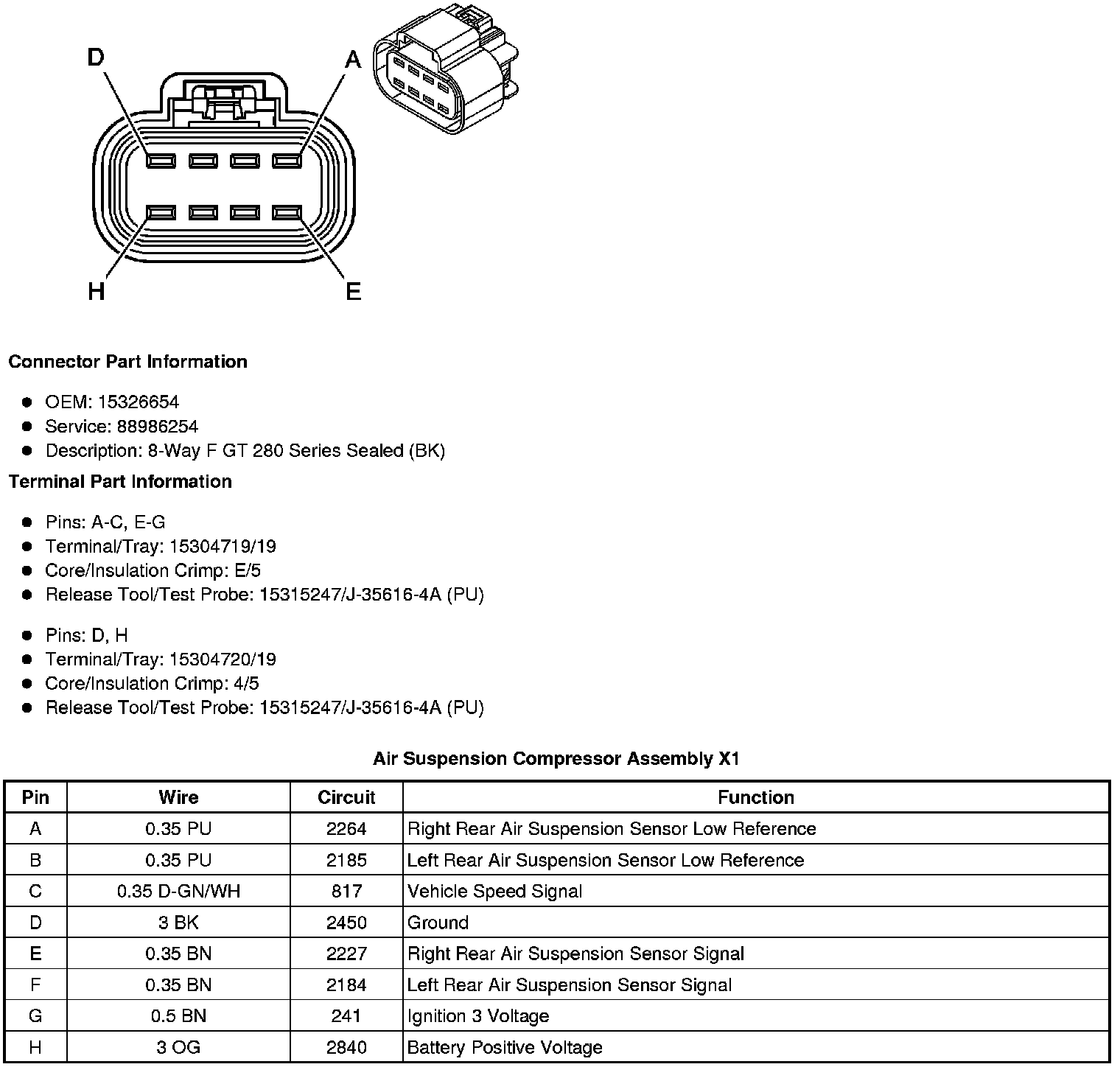

Air Suspension Compressor Assembly X1

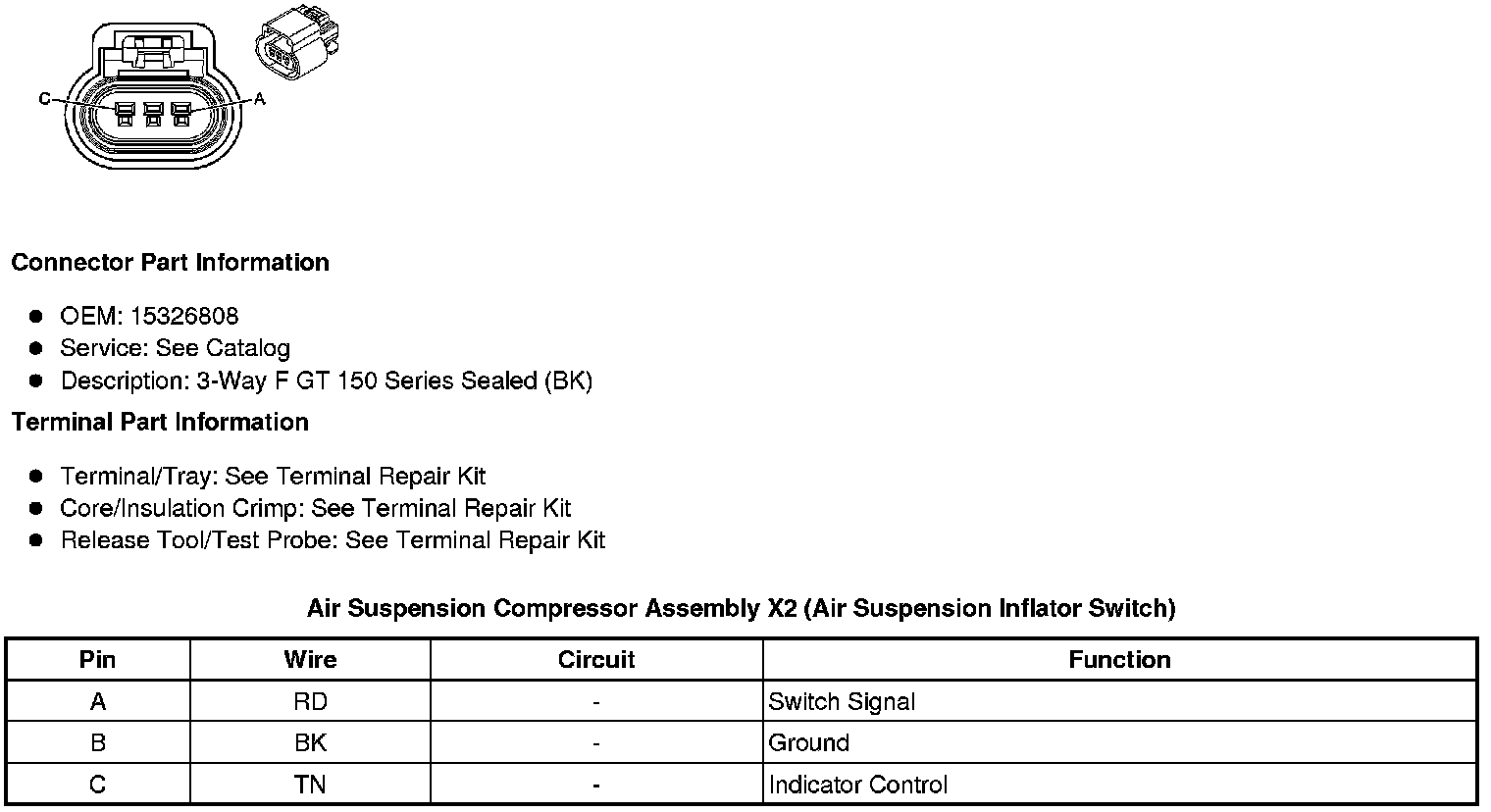

Air Suspension Compressor Assembly X2 (Air Suspension Inflator Switch)
