Chevy Truck
>>
2009
>>
Suburban 2WD V8-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment Systems
>>
Entertainment System Control Module
Entertainment System Control Module
Component Connector End Views

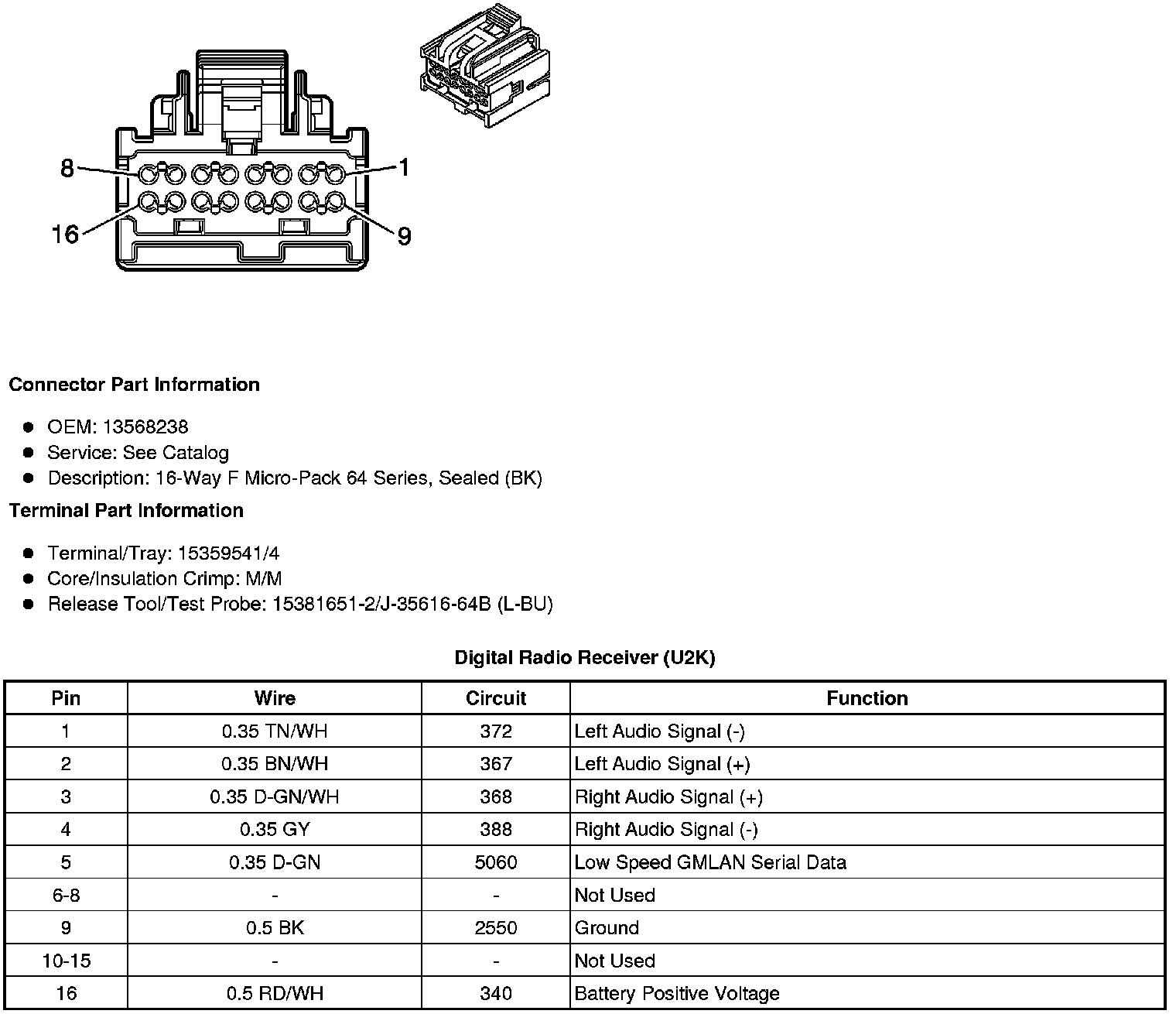

Digital Radio Receiver (U2K)
