Fuel Pump
Fuel Pump

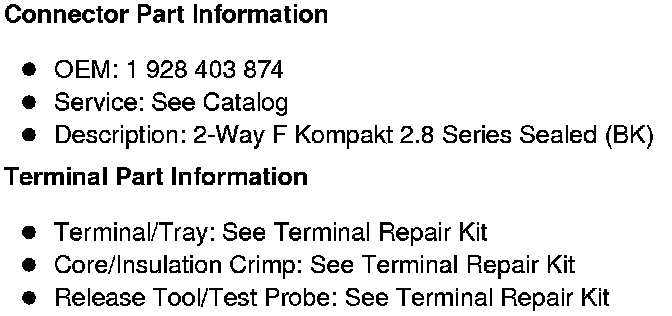

Component Connector End Views

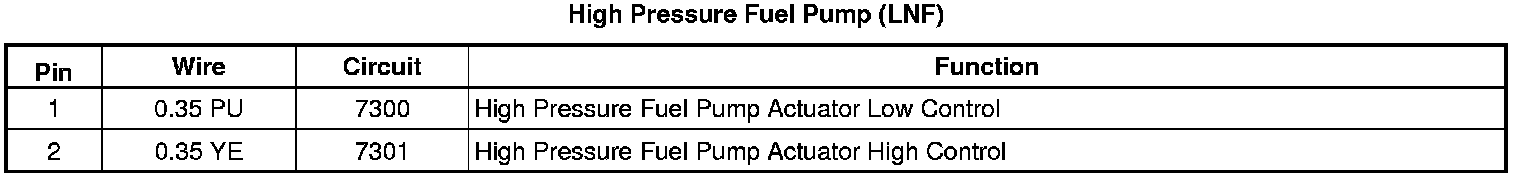

High Pressure
Fuel Pump
(LNF)
Fuel Pump and Sender Assembly
