Engine Mount Bracket Replacement

Engine Mount Bracket Replacement

Removal Procedure




1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (Air Cleaner Outlet Duct Replacement).
2. Remove the engine mount struts. Refer to Engine Mount Strut Replacement - Left Side (Service and Repair) andEngine Mount Strut Replacement - Right Side (Service and Repair).
3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).
4. Remove the catalytic converter. Refer to Catalytic Converter Replacement (Service and Repair).
5. Remove the right front wheel and tire. Refer to Tire and Wheel Removal and Installation (Service and Repair).
6. Remove the right engine splash shield. Refer to Engine Splash Shield Replacement (Service and Repair).
7. Remove the engine mount to frame nuts.

Notice: In order to avoid oil pan damage and possible engine failure, insert a block of wood that spans the width of the oil pan bottom between the oil pan and the jack support.

8. Place a utility stand and a block of wood under the oil pan in order to raise the engine.




9. Remove the engine mount bracket to oil pan bolts.

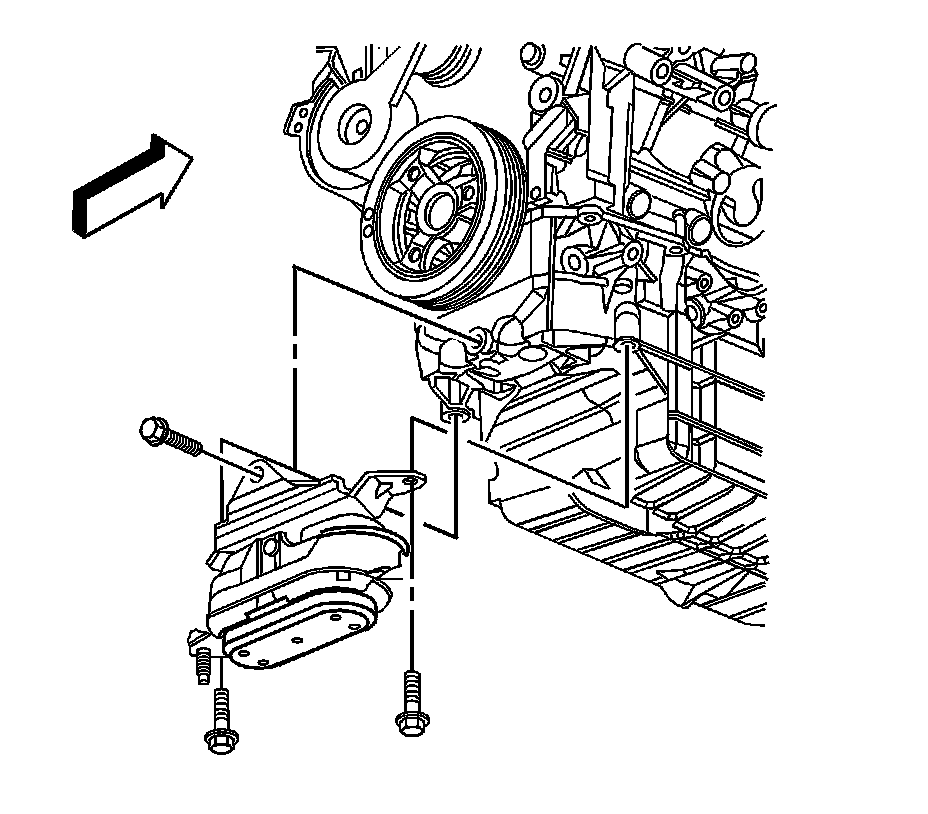

10. Remove the engine mount and bracket.




11. Remove the engine mount bracket to engine mount nuts.
12. Remove the engine bracket from the engine mount.

Installation Procedure




1. Install the engine mount bracket to the engine mount.

Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the engine mount bracket to engine mount nuts.

Tighten the nuts to 50 N.m (37 lb ft).




3. Install the engine mount and bracket to the oil pan.
4. Install the engine mount bracket to oil pan bolts.

Tighten the bolts to 58 N.m (43 lb ft).

5. Using the utility stand, lower the engine.




6. Install the engine mount to frame nuts.

Tighten the nuts to 47 N.m (35 lb ft).

7. Install the right engine splash shield. Refer to Engine Splash Shield Replacement (Service and Repair).
8. Install the right front wheel and tire. Refer to Tire and Wheel Removal and Installation (Service and Repair).
9. Install the catalytic converter. Refer to Catalytic Converter Replacement (Service and Repair).
10. Lower the vehicle.
11. Install the engine mount struts. Refer to Engine Mount Strut Replacement - Left Side (Service and Repair) andEngine Mount Strut Replacement - Right Side (Service and Repair).
12. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (Air Cleaner Outlet Duct Replacement).
