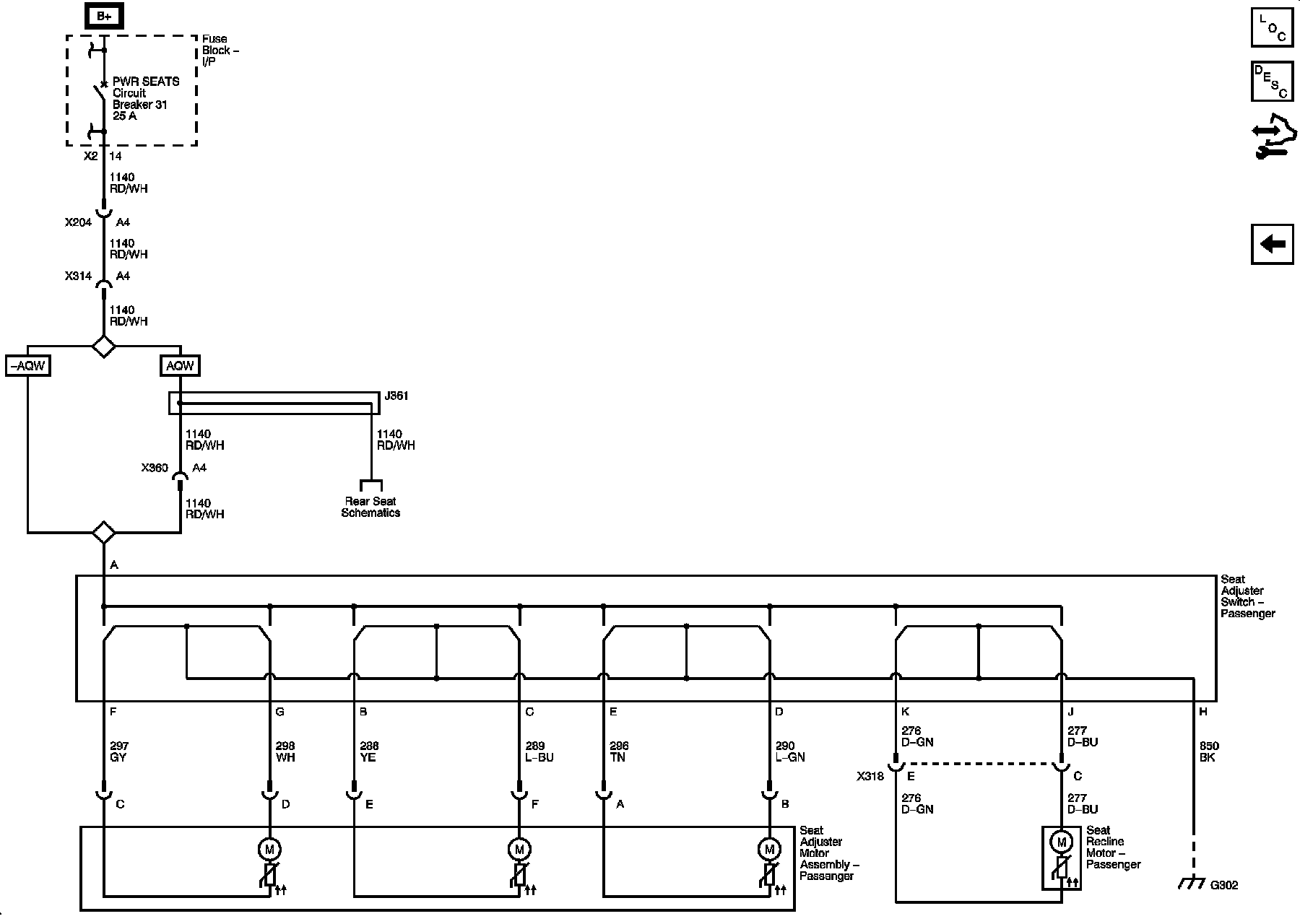

Passenger Seat Schematics
Passenger Seat Schematics
Passenger Seat Schematics
6-Way Power Seat
8-Way Power Seat
