Home
>>
Chevy Truck
>>
2008
>>
Uplander V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Doors
>>

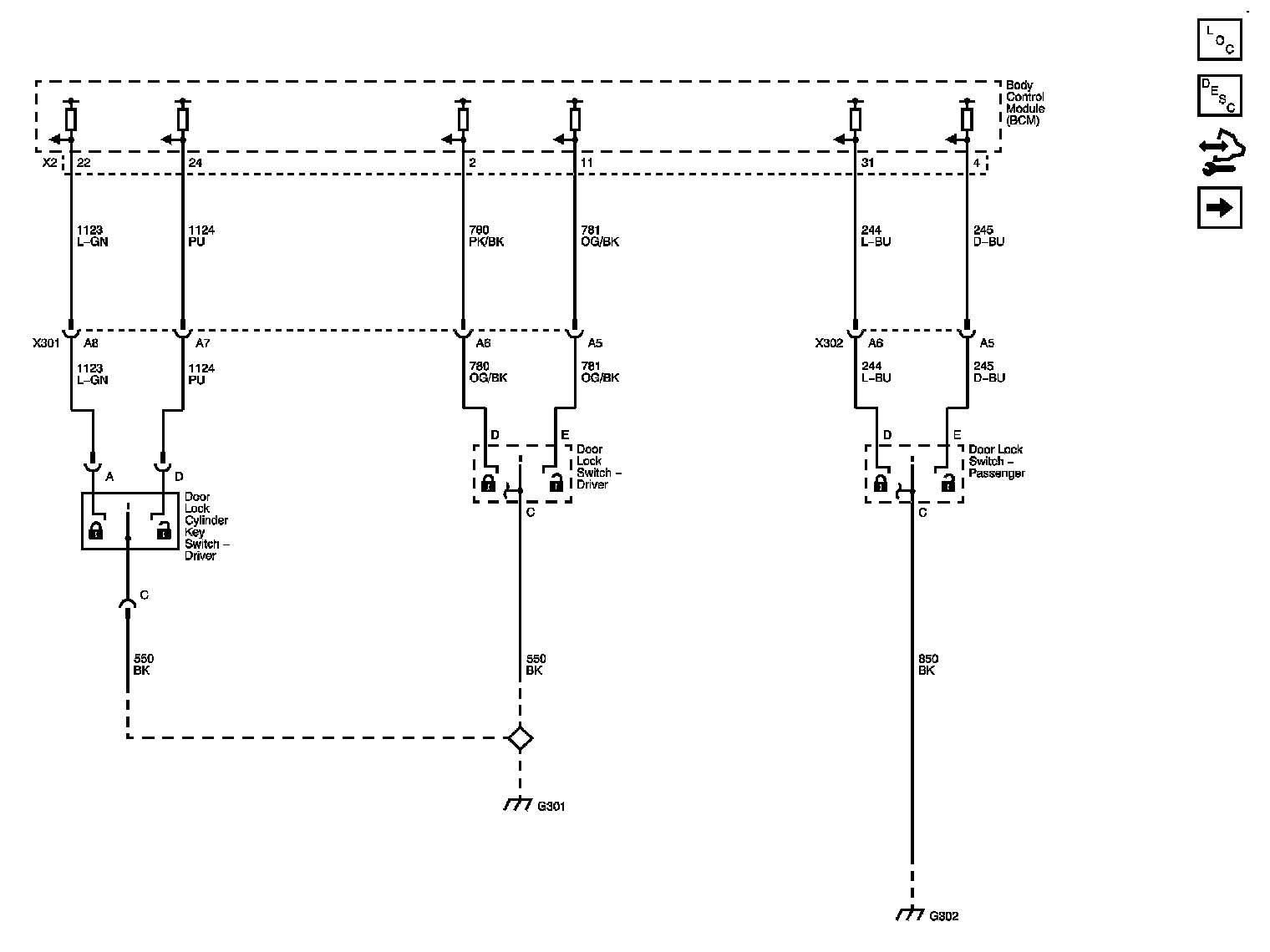

Door Lock/Indicator Diagrams
Door Lock/Indicator Diagrams
Switches
Actuators

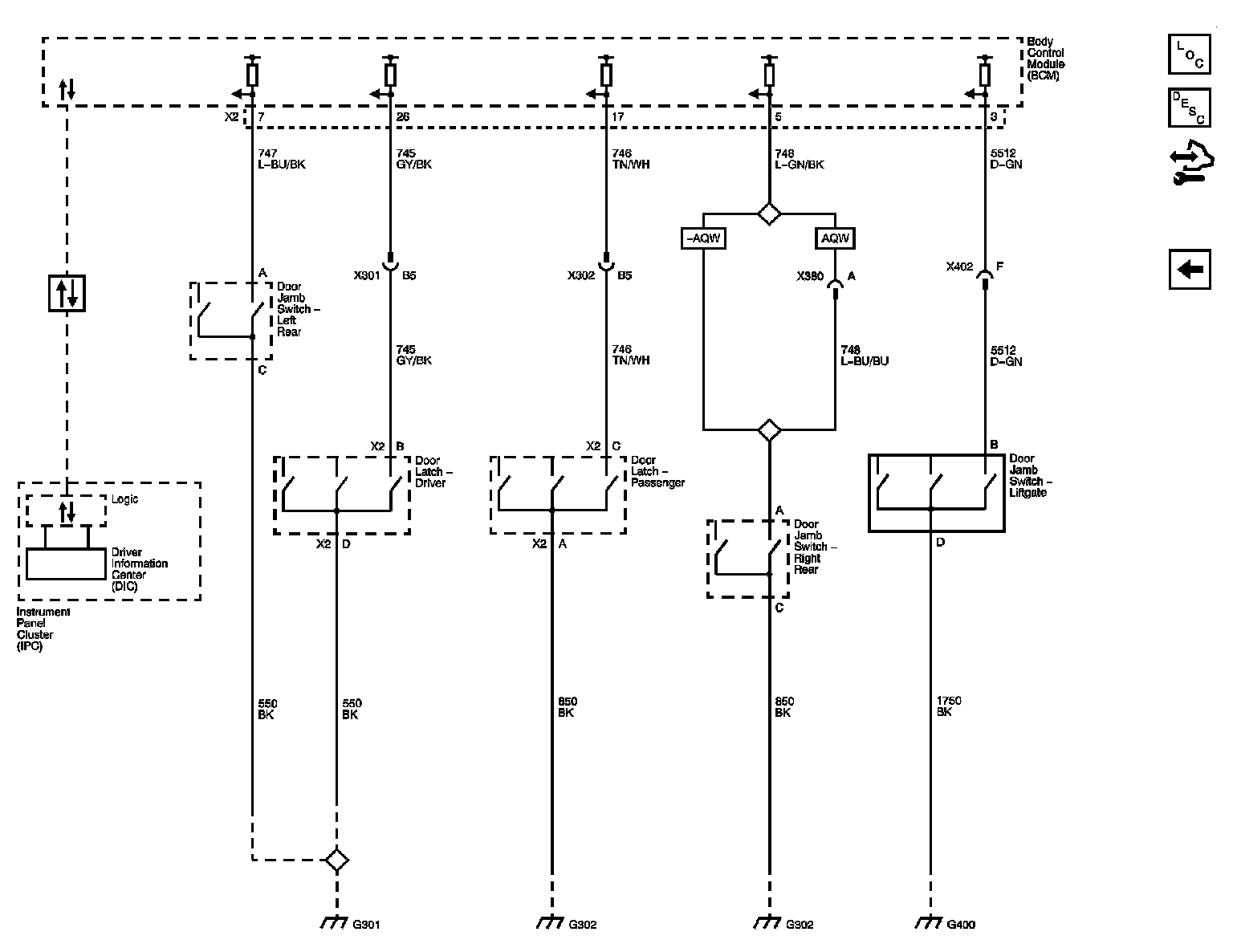

Indicators
