Seat Recline Motor



Component Connector End Views

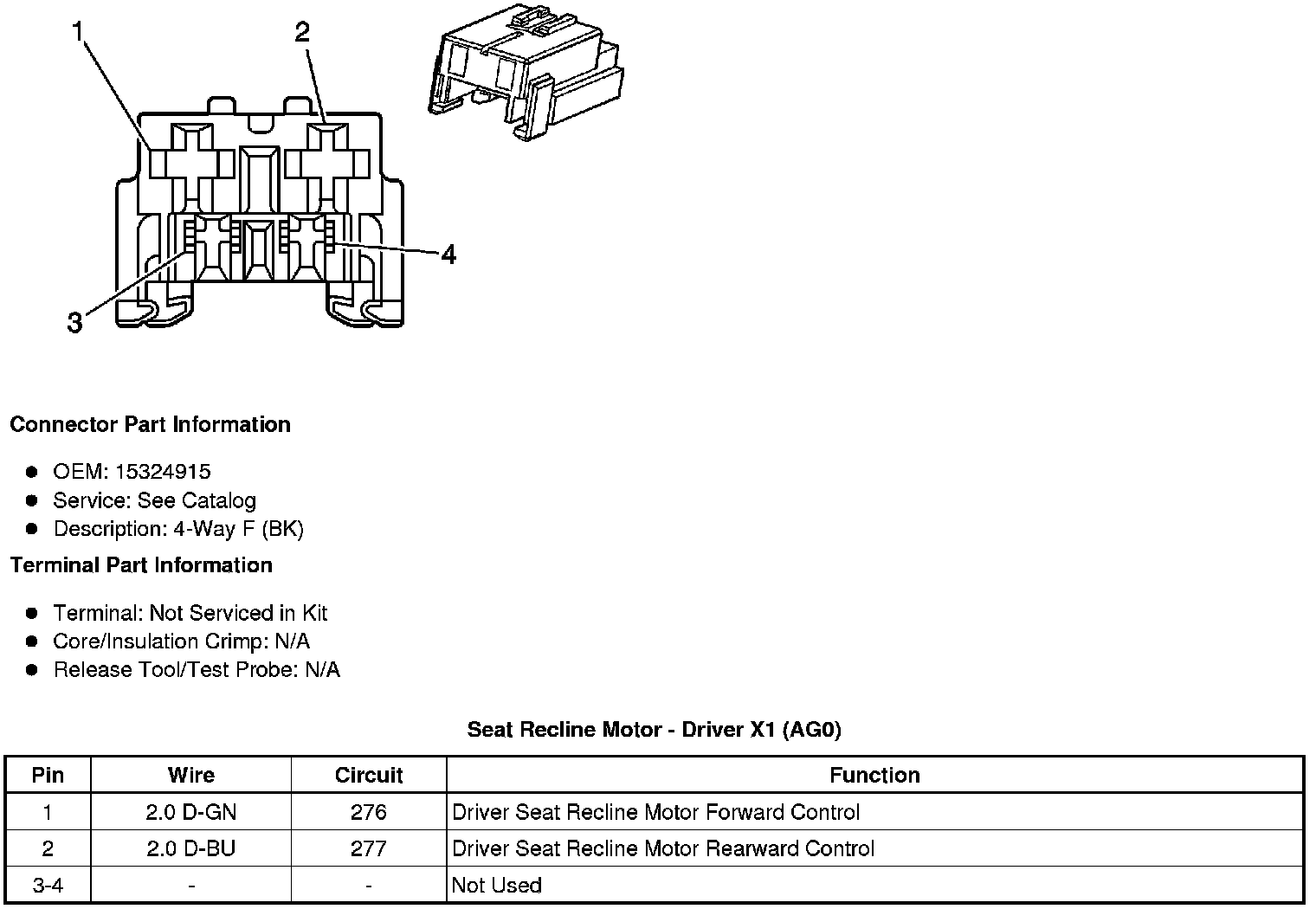

Seat Recline Motor - Driver X1 (AG0)

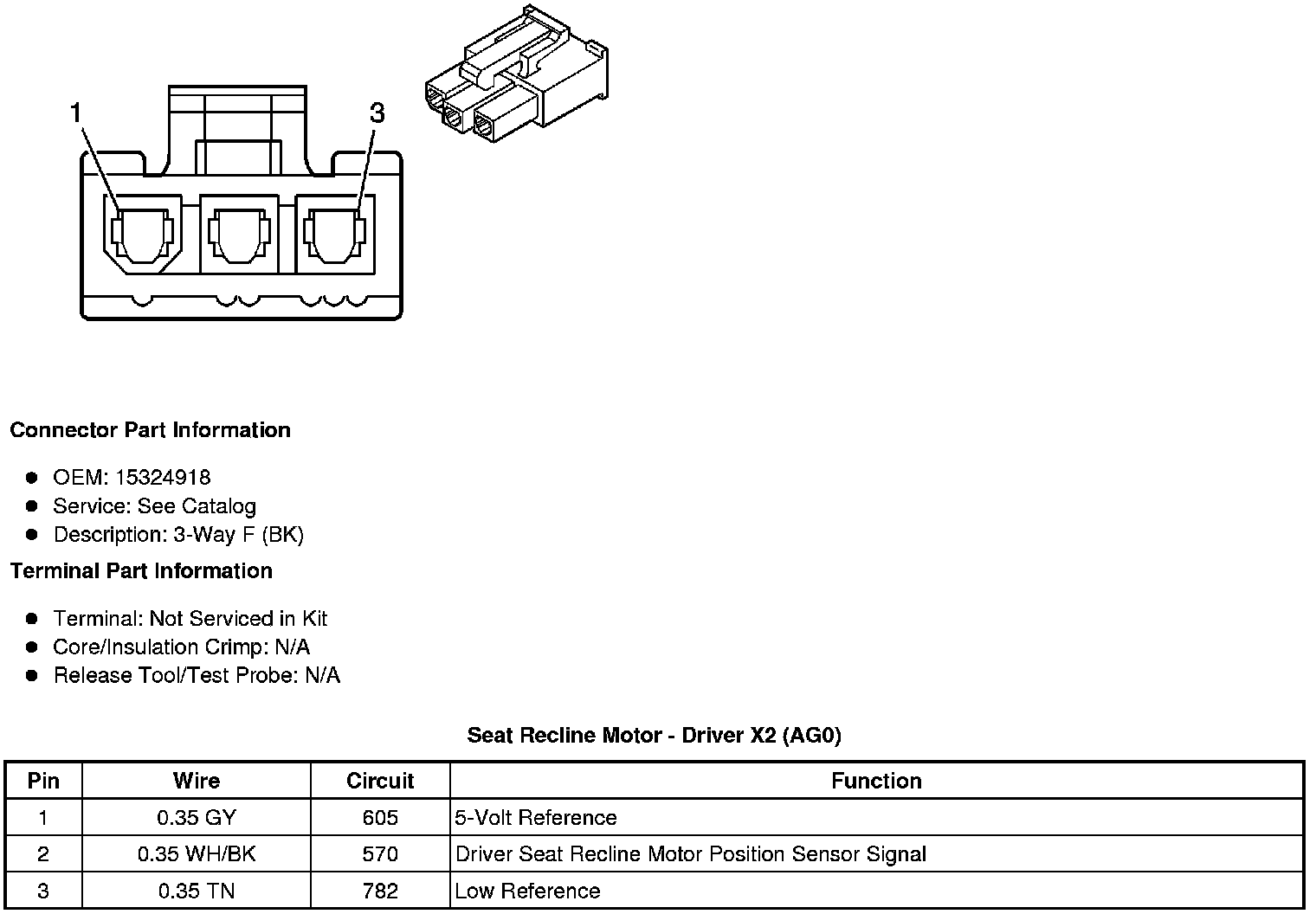

Seat Recline Motor - Driver X2 (AG0)

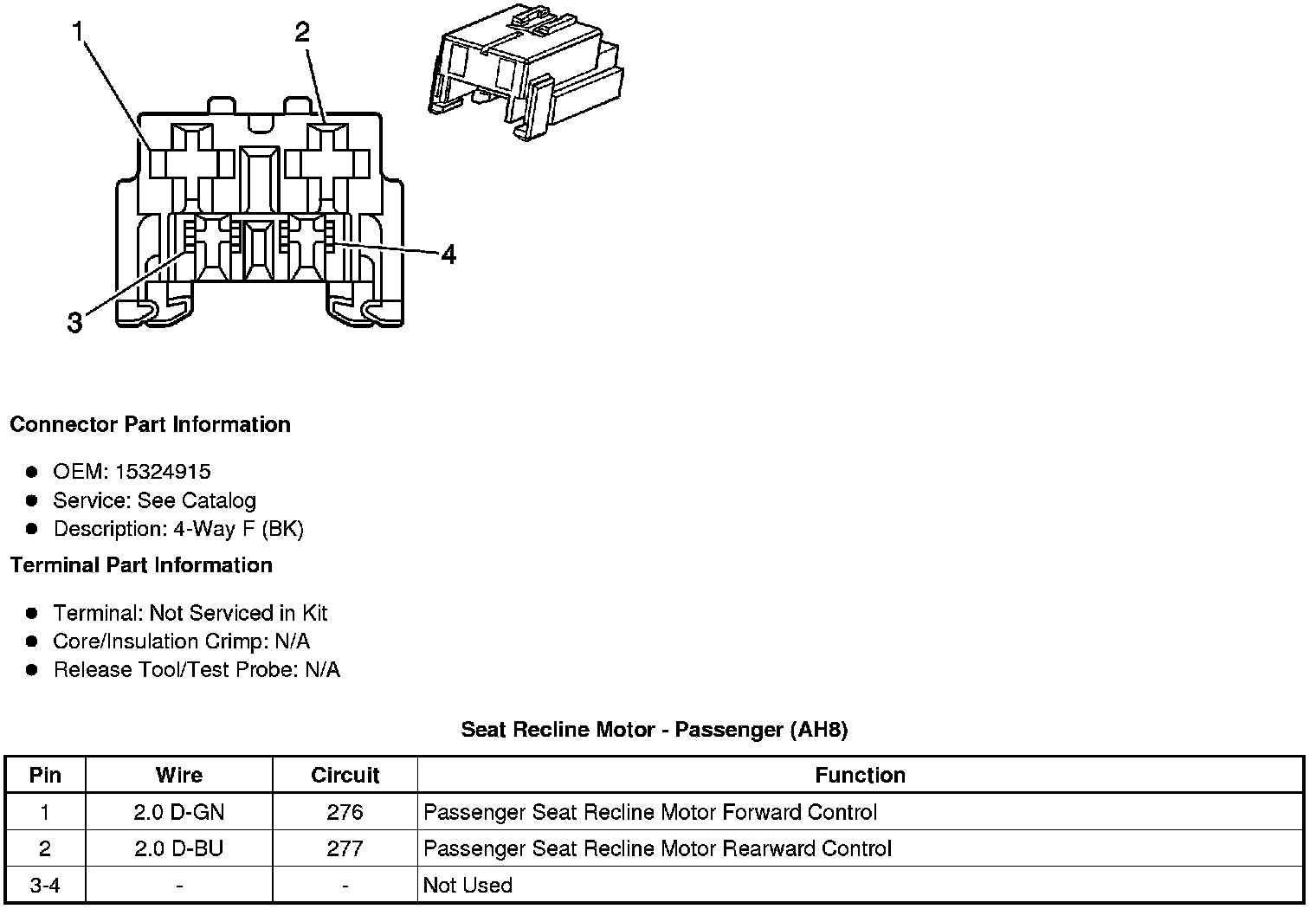

Seat Recline Motor - Passenger (AH8)
