X440
X440

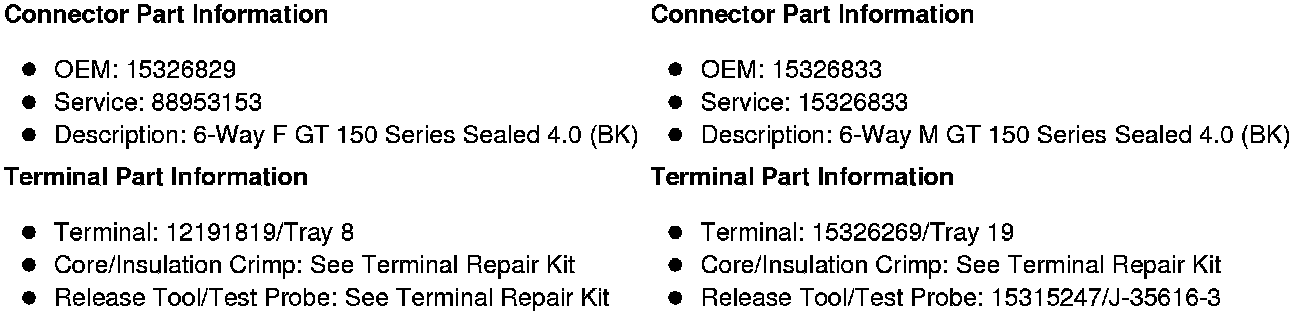

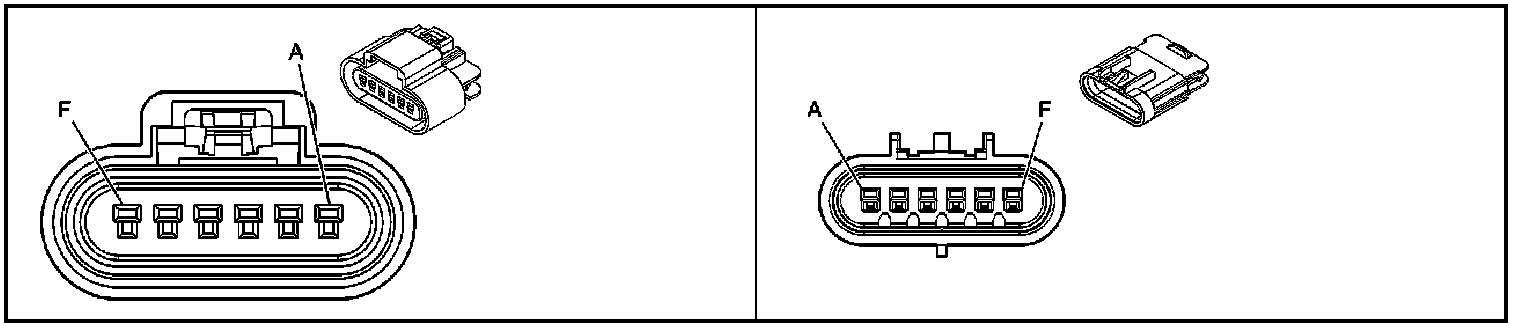

Inline Harness Connector End Views

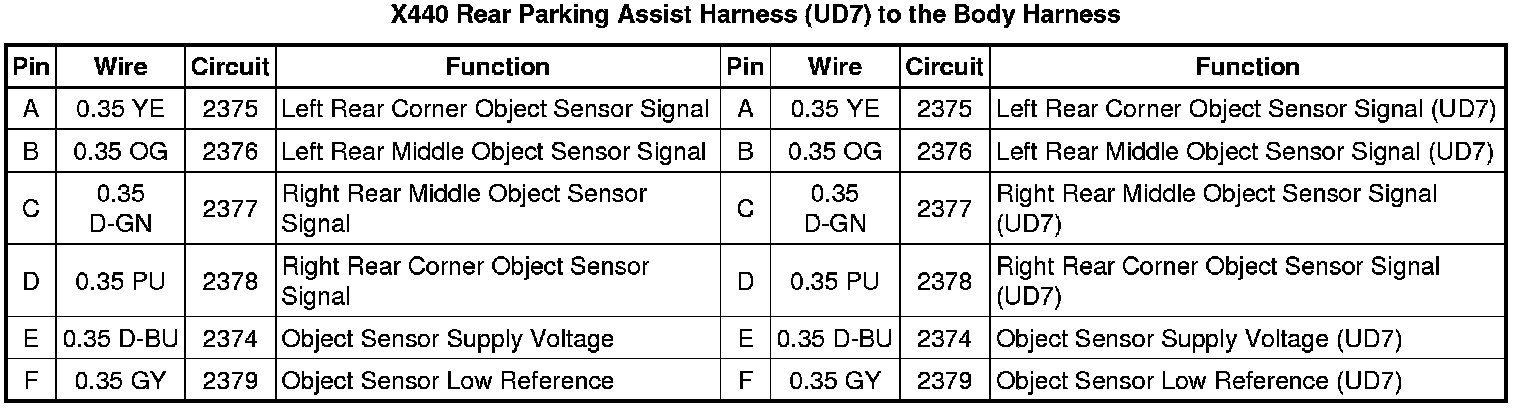

X440 Rear Parking Assist Harness (UD7) to the Body Harness
