X396

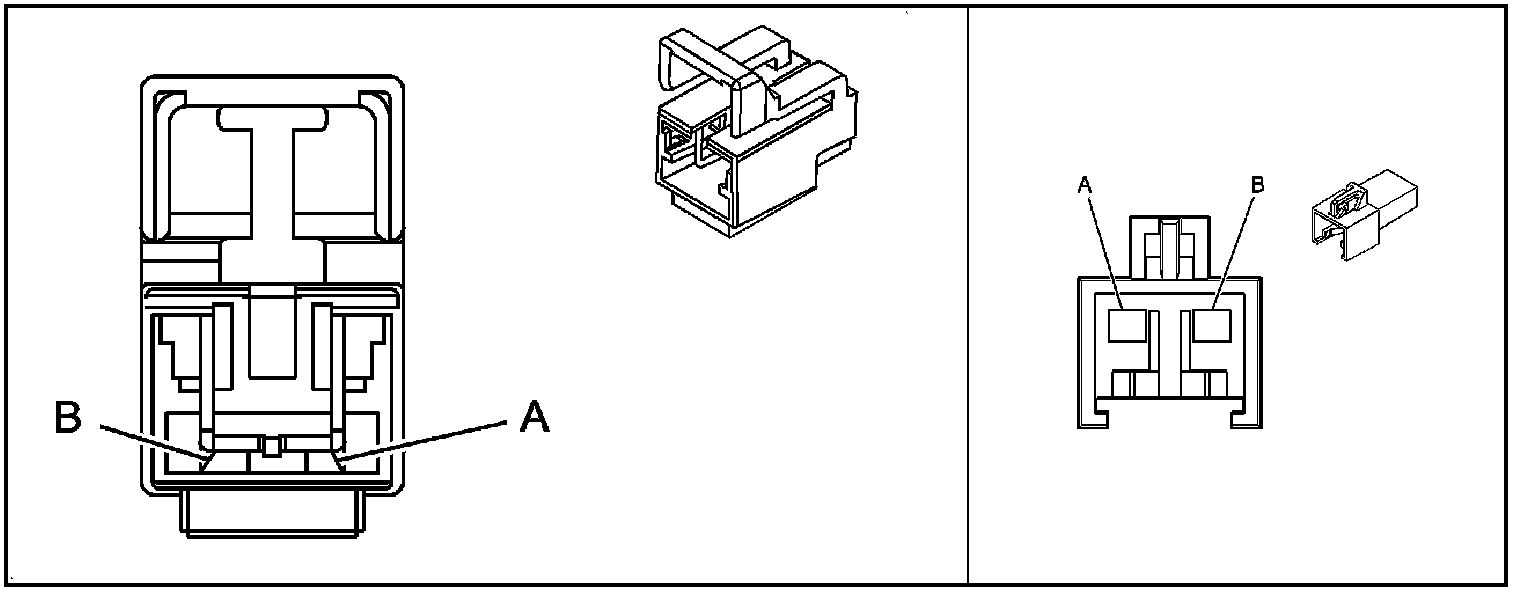

Inline Harness Connector End Views

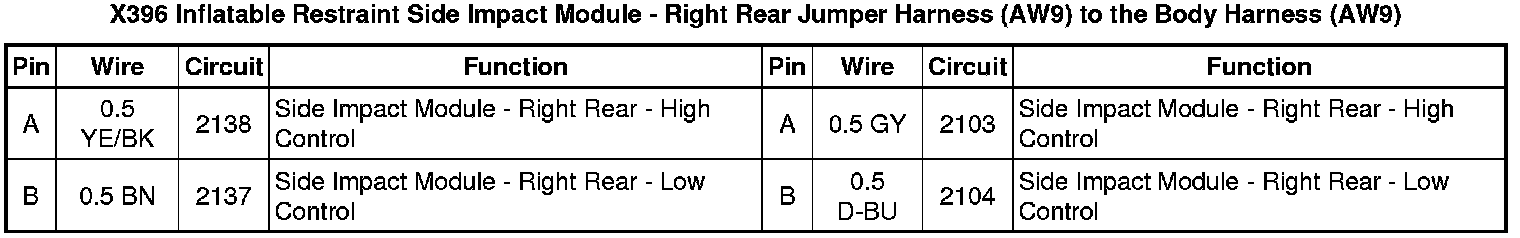

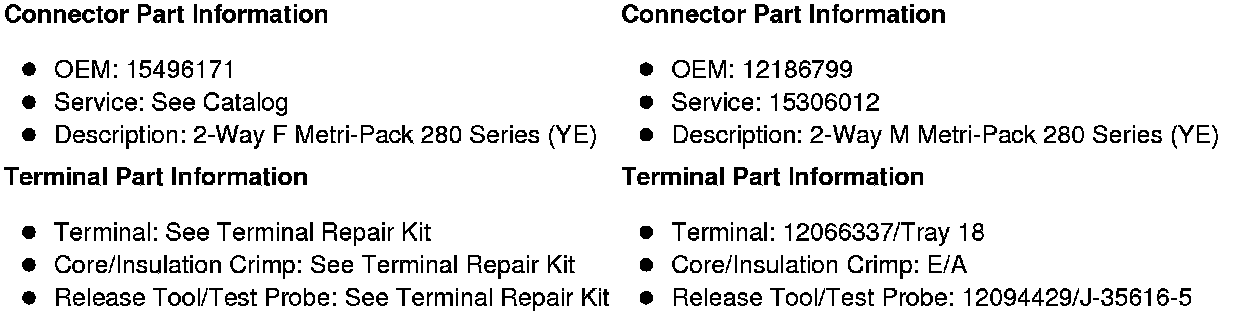

X396 Inflatable Restraint Side Impact Module - Right Rear Jumper Harness (AW9) to the Body Harness (AW9)
