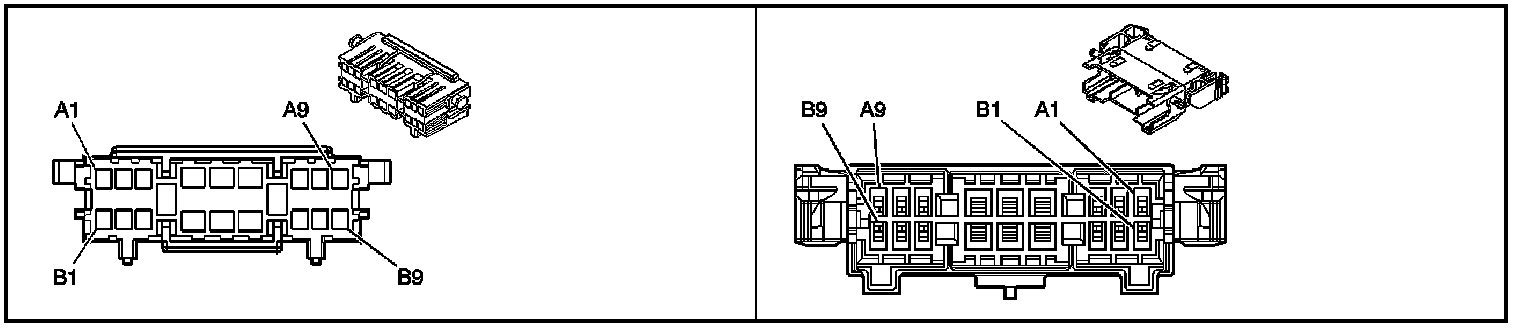

Inline Harness Connector End Views

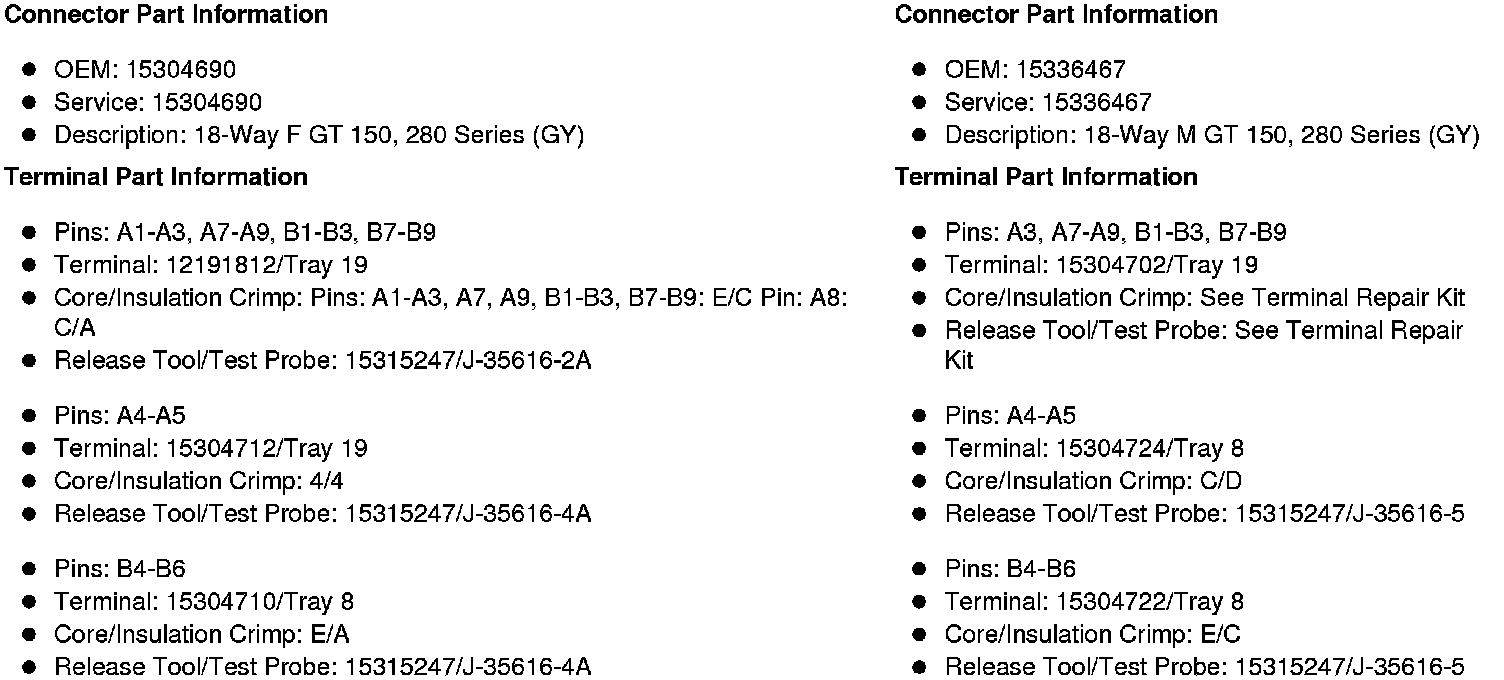

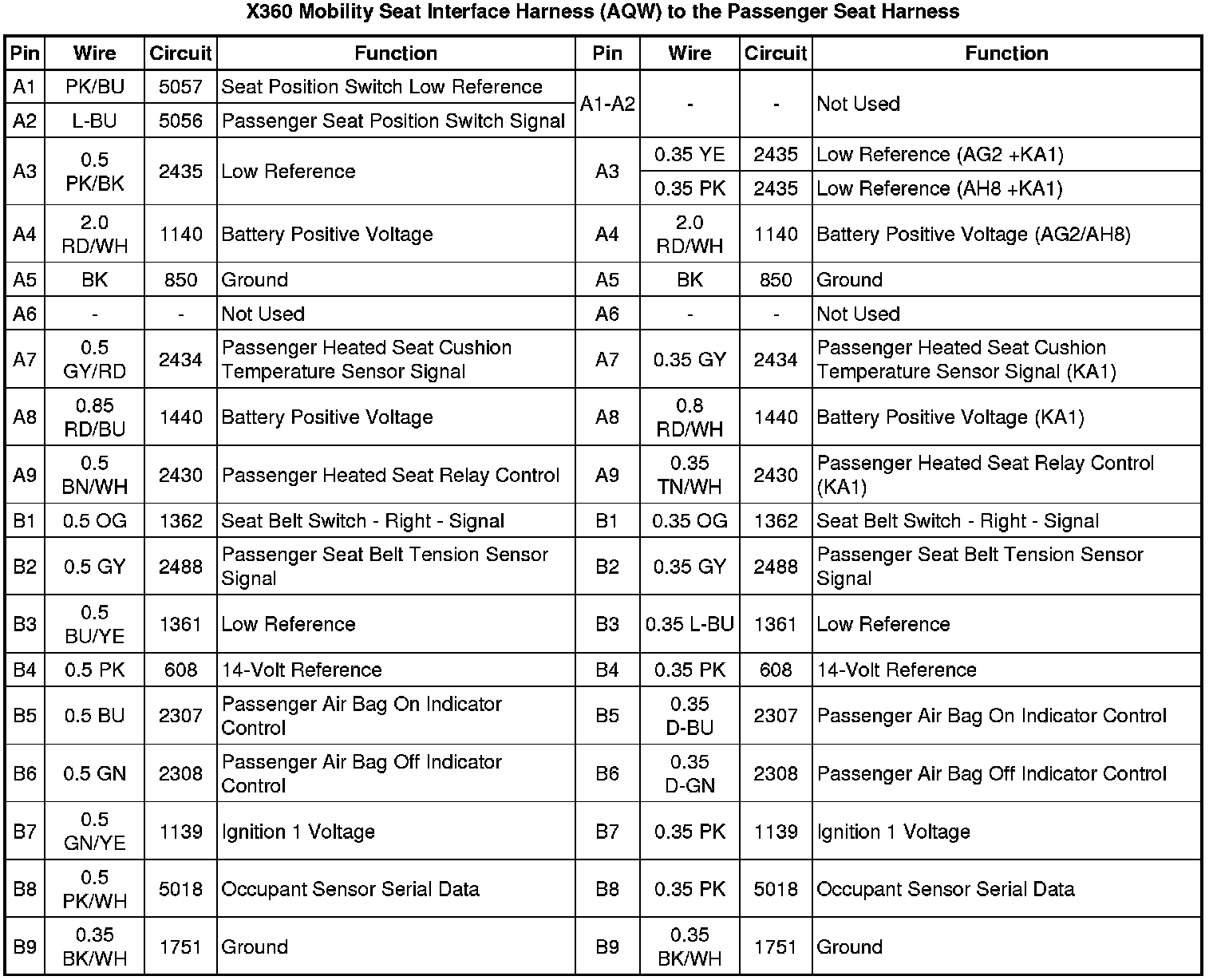

X360 Mobility Seat Interface Harness (AQW) to the Passenger Seat Harness
