X309
X309

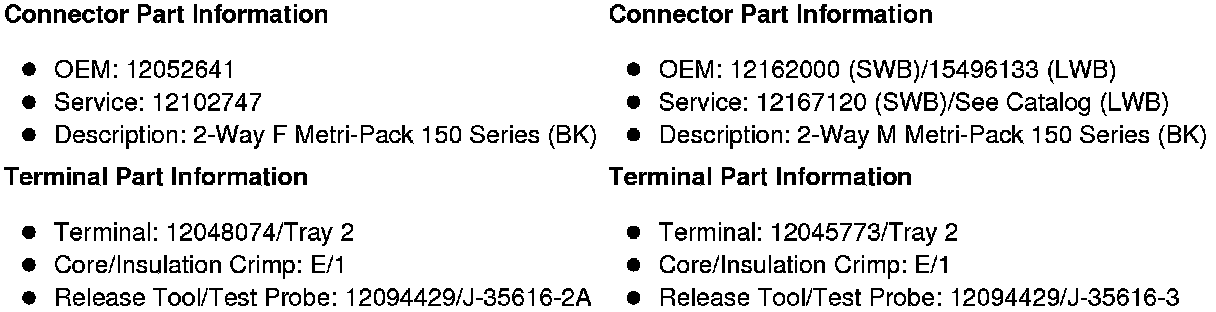

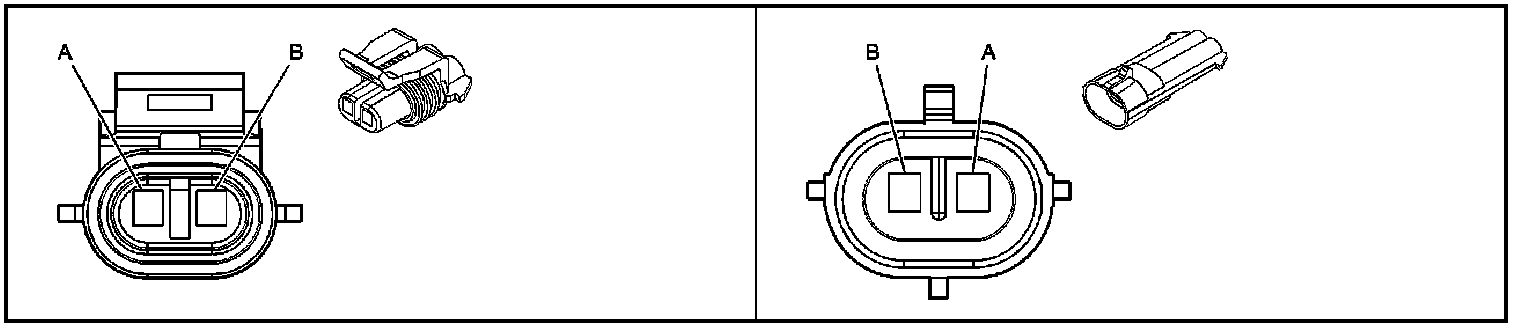

Inline Harness Connector End Views

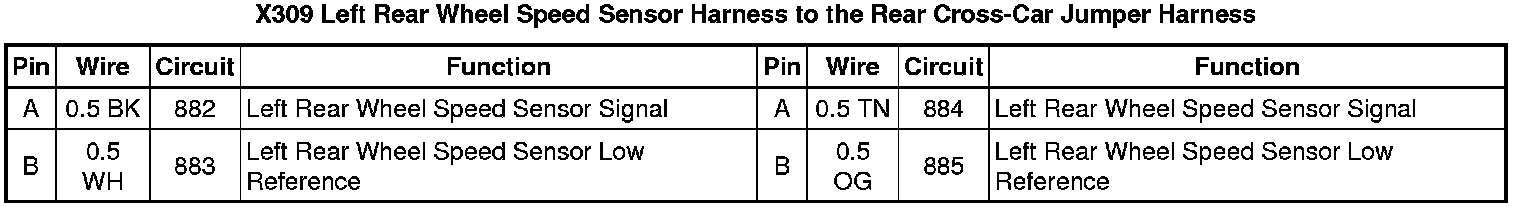

X309 Left Rear Wheel Speed Sensor Harness to the Rear Cross-Car Jumper Harness
