X306
X306

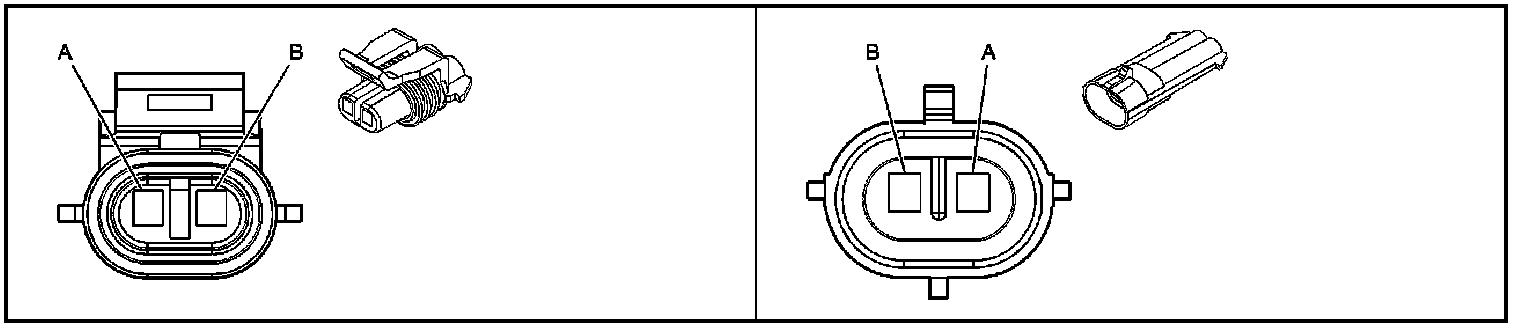

Inline Harness Connector End Views

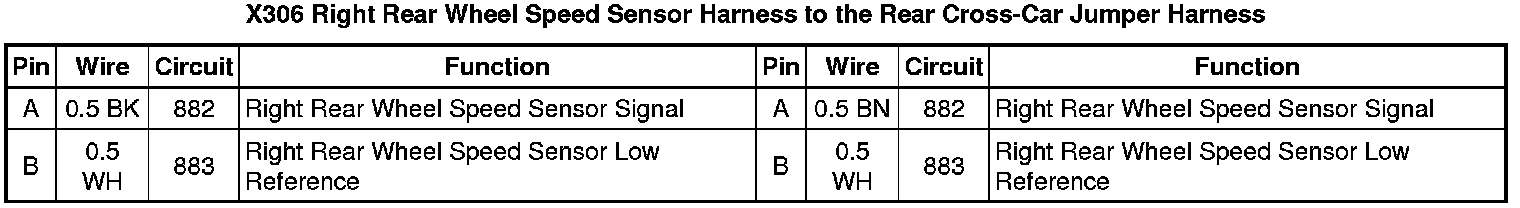

X306 Right Rear Wheel Speed Sensor Harness to the Rear Cross-Car Jumper Harness
