X305

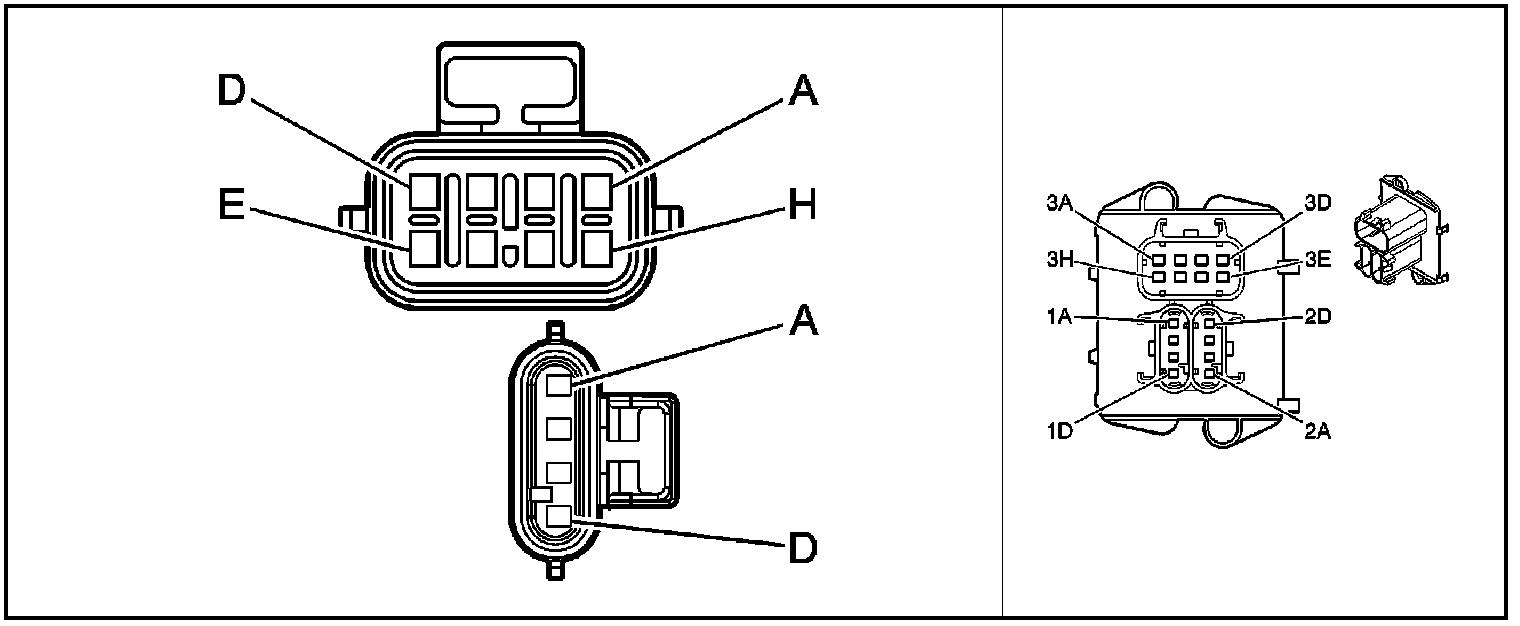

Inline Harness Connector End Views

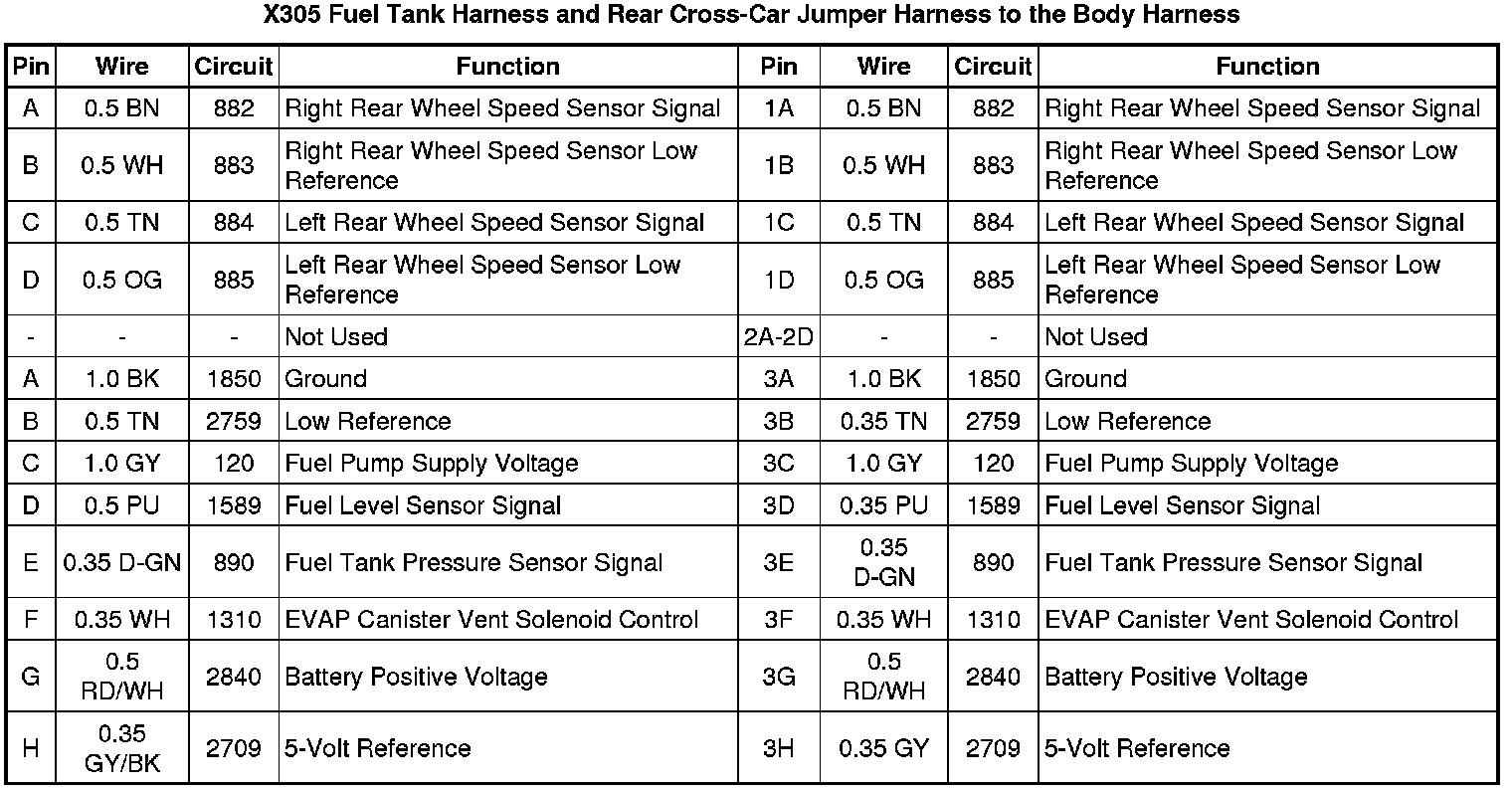

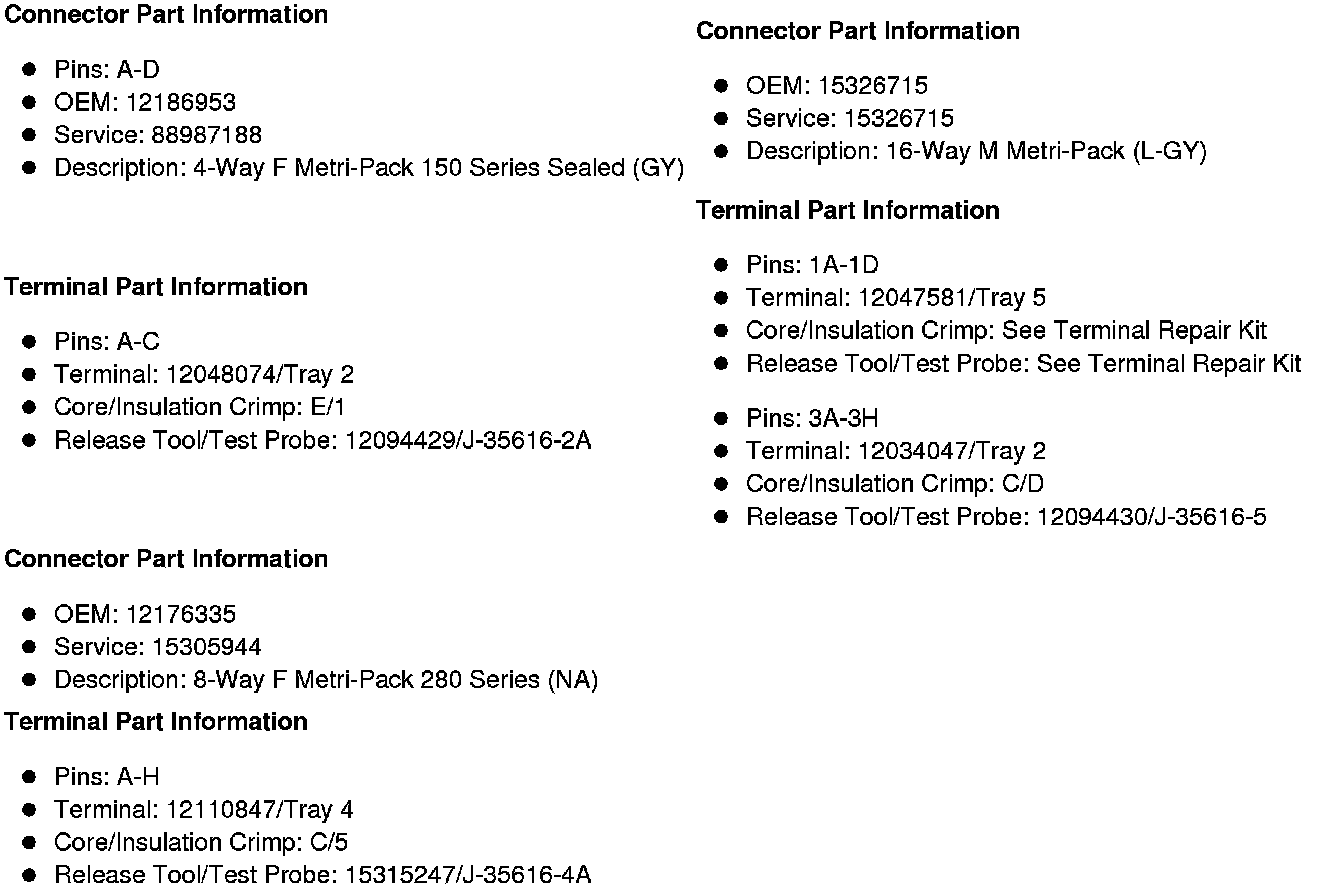

X305 Fuel Tank Harness and Rear Cross-Car Jumper Harness to the Body Harness
