Chevy Truck
>>
2008
>>
Uplander V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X300 - X399
>>
X301
X301

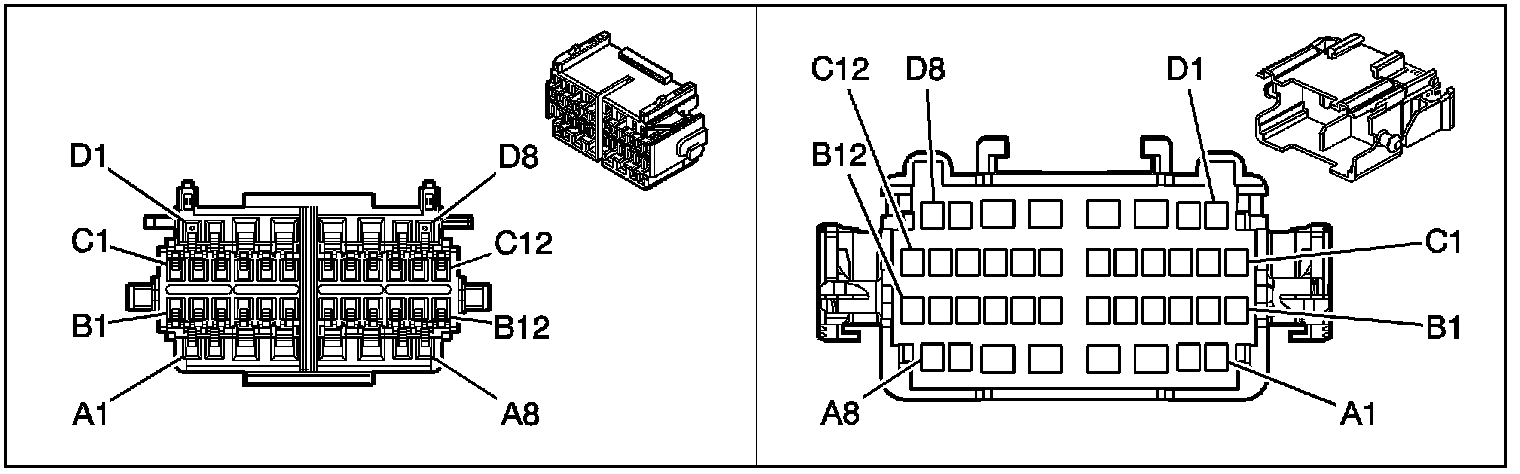

Inline Harness Connector End Views

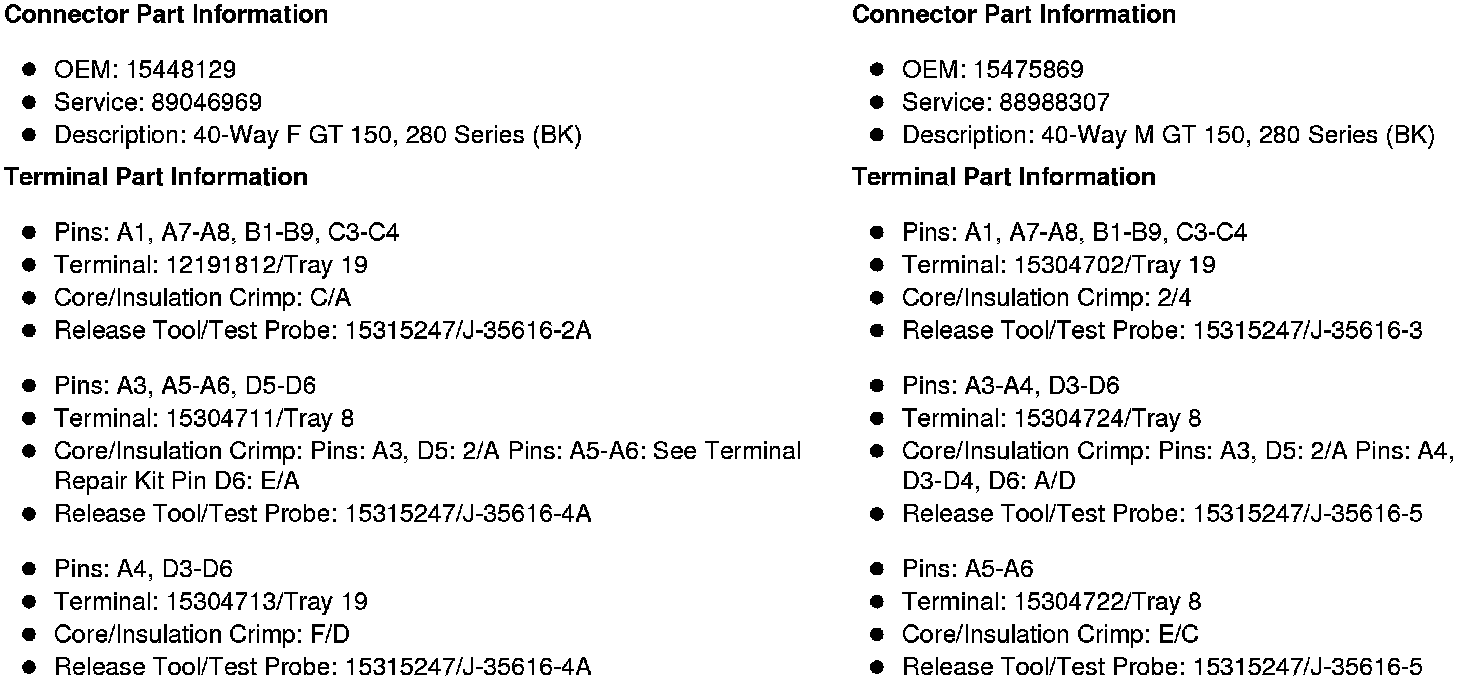

X301 Driver Door Harness to the Body Harness
