X254
X254

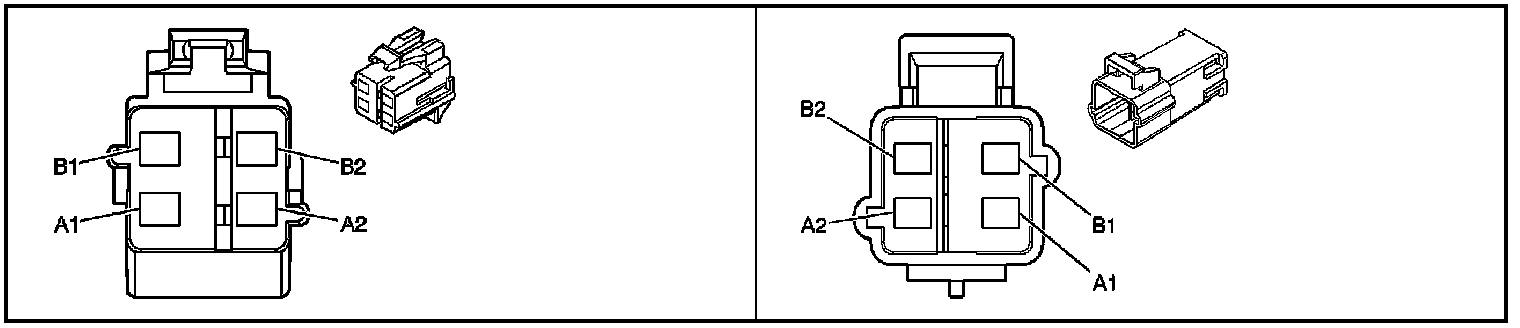

Inline Harness Connector End Views

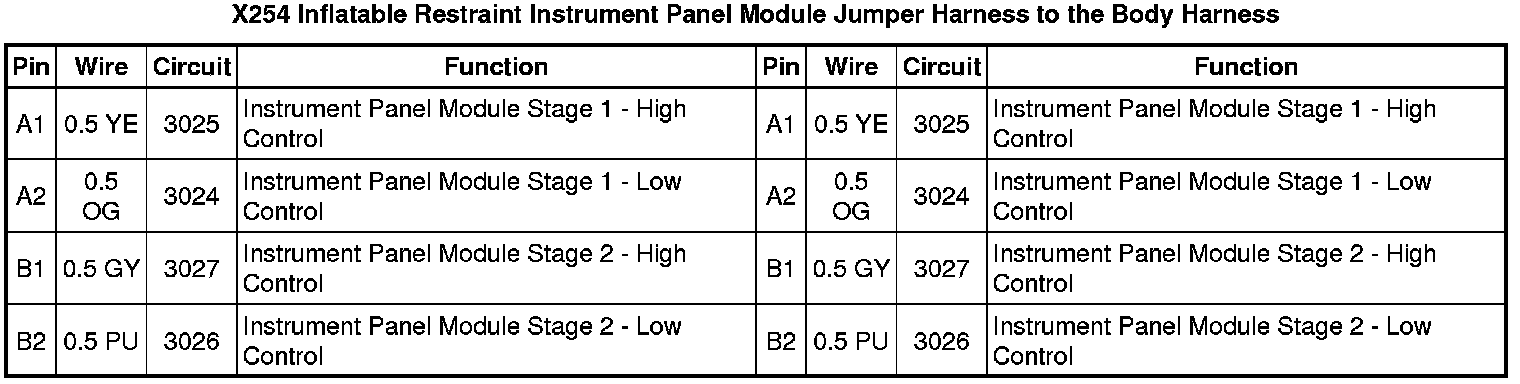

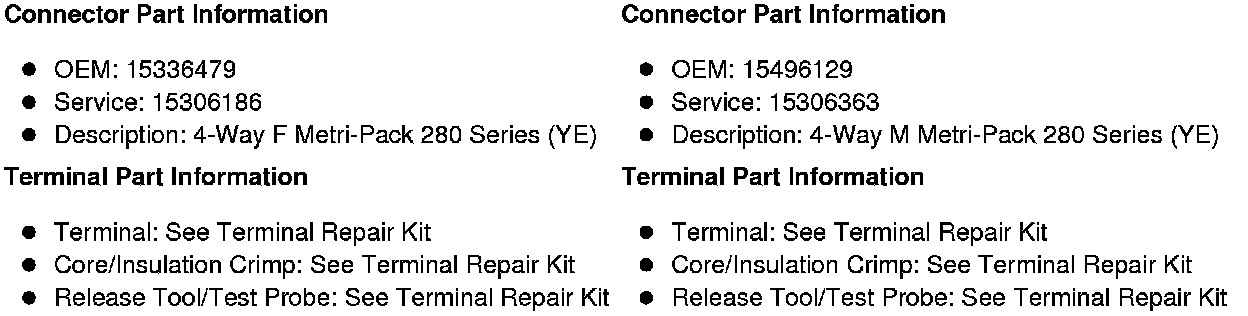

X254 Inflatable Restraint Instrument Panel Module Jumper Harness to the Body Harness
