Home
>>
Chevy Truck
>>
2008
>>
Uplander V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
X200 - X299
>>
X219
X219

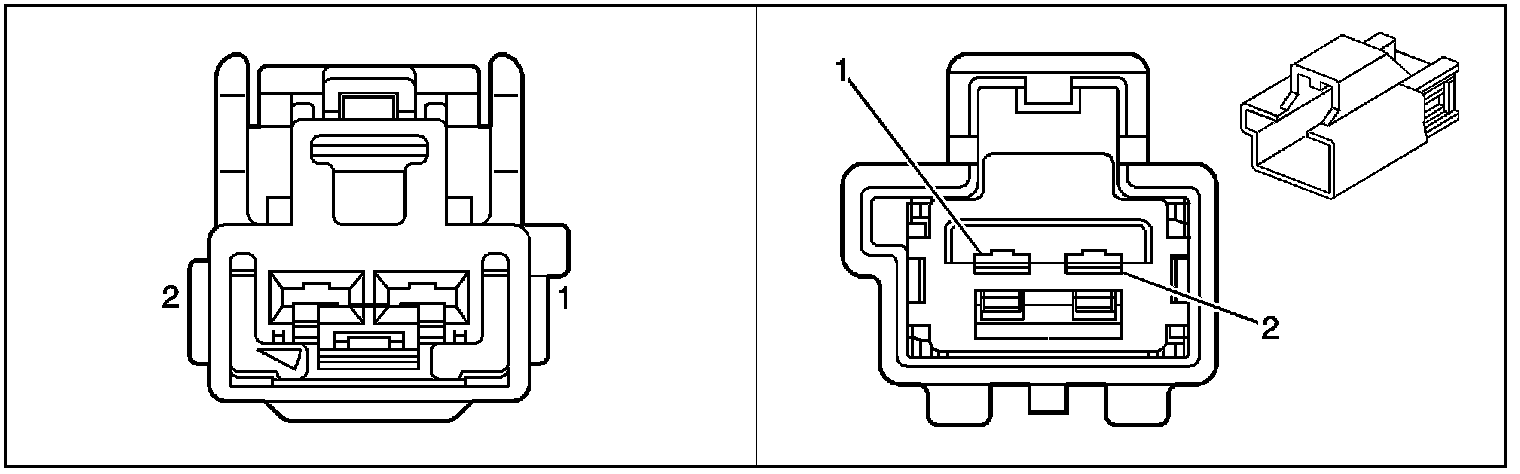

Inline Harness Connector End Views

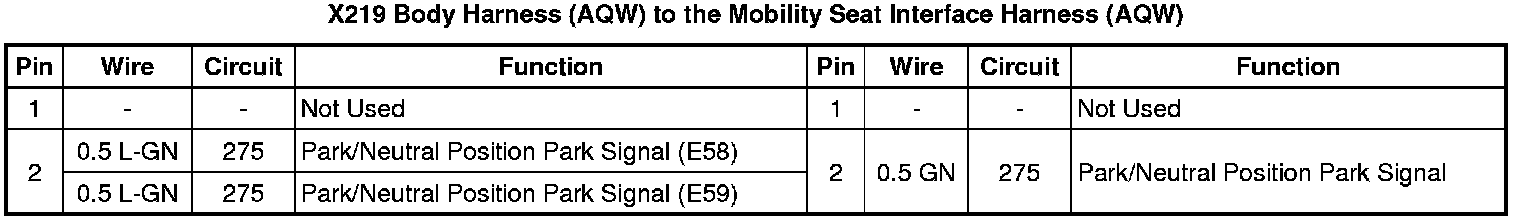

X219 Body Harness (AQW) to the Mobility Seat Interface Harness (AQW)
