X205
X205

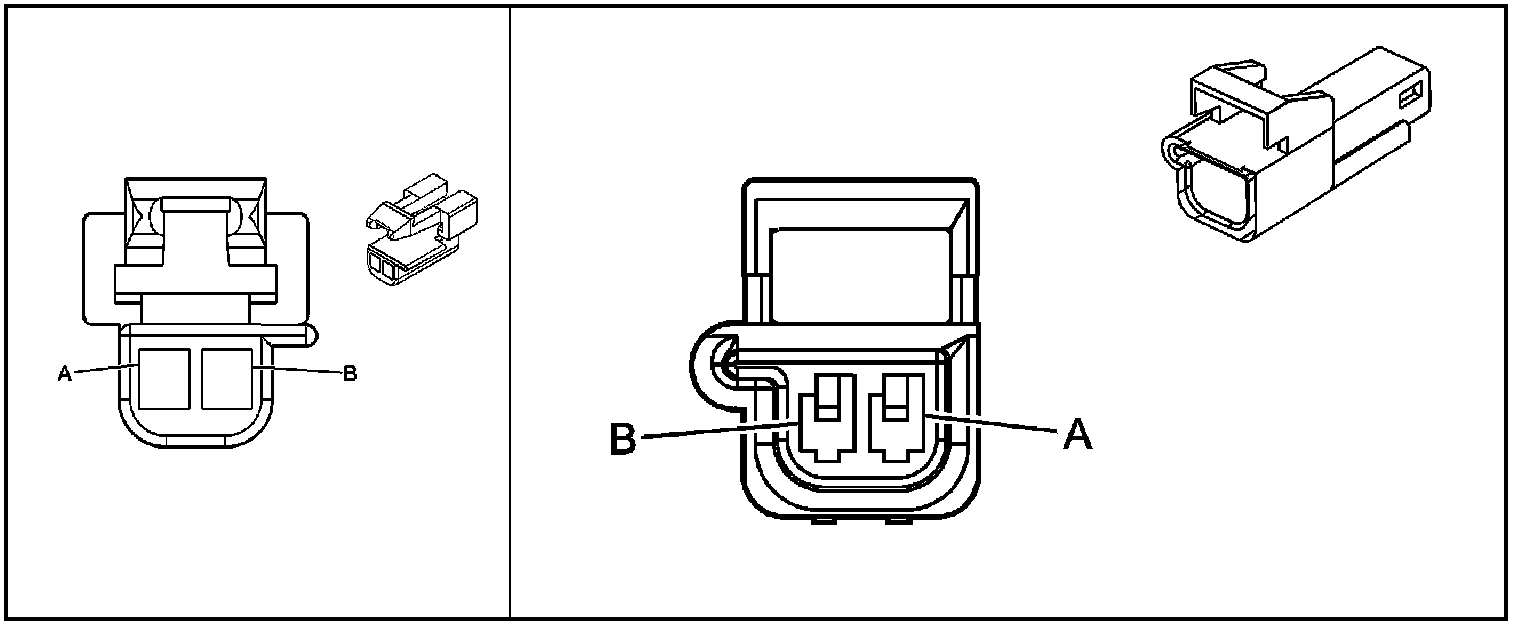

Inline Harness Connector End Views

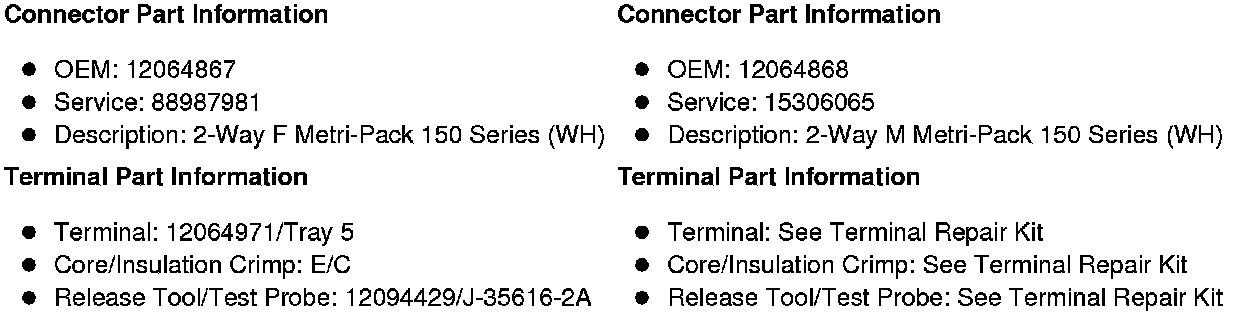

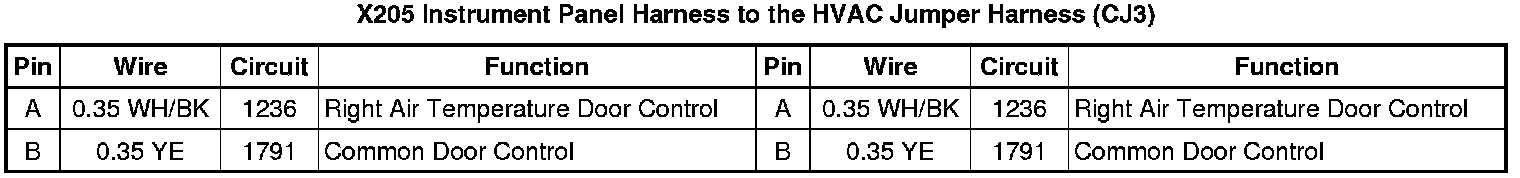

X205 Instrument Panel Harness to the HVAC Jumper Harness (CJ3)
